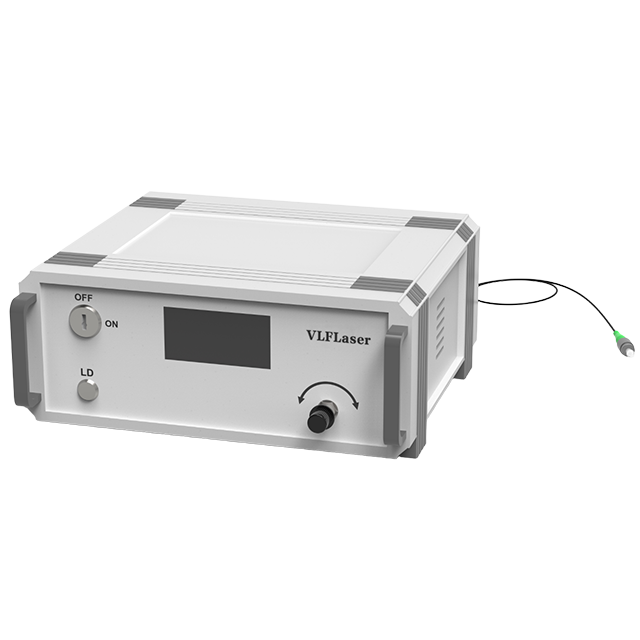

VLFL-450 Series Fiber-Coupled Laser Systems
An integrated laser system that is "exclusive to the near-ultraviolet to blue light band, covers full power range (30~3500mW), and supports multi-scenario customization"
- High integration and ease of use
- High-precision performance control
- Strong customization and wide adaptability
- Long service life and low maintenance cost
Enter your email address to get free access, receive a product brochure, or enjoy special discounts.
Overview
Specifications
Introduction:
Developed by Venuslab, the near-ultraviolet to blue light band fiber-coupled laser system features a highly unified core architecture: it integrates a laser module, a dedicated modulation module, a high-precision driving power supply, and an air-cooled refrigeration unit. It is compatible with the A-1 standard chassis (dimensions: 265mm×240mm×112mm) and supports dual power supply modes of AC 90V~240V (50~60Hz) or DC +12V. The warm-up time is less than 5 minutes, the operating temperature range is +10℃~+40℃, and the storage temperature range is -20℃~+60℃.
In terms of control performance, all adopt Automatic Current Control (ACC) technology, supporting three working modes (CW continuous wave, 0~20KHz TTL digital modulation, 0~5V Analog modulation), with a power stability of ≤3% during 2-hour continuous operation; The basic optical configuration is uniformly FP type laser with a spectral width of 2nm, and all provide optional collimating lenses and customized services (power, fiber parameters, connectors, etc.). The application fields cover biomedical, scientific research, material analysis, 3D printing, test light sources, gas detection and other scenarios.
Features:
- High stability
- High beam quality
- High signal-to-noise ratio (SNR)
- Customized services

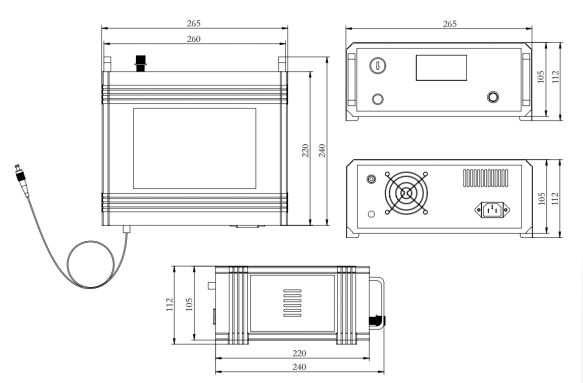

Dimension:
Explore Series
VLFL-450 Series Fiber-Coupled Laser Systems
VLFL-445-MF-1000
Central wavelength 440~460nm (typical value 445nm), output power 1000mW, no extinction ratio.
VLFL-450 Series Fiber-Coupled Laser Systems
VLFL-450-MF-60
Central wavelength 440~460nm (typical value 450nm), output power 60mW, no extinction ratio.
VLFL-450 Series Fiber-Coupled Laser Systems
VLFL-450-PM-30
Central wavelength 440~460nm (typical value 450nm), output power 30mW, extinction ratio 16dB.
VLFL-450 Series Fiber-Coupled Laser Systems
VLFL-450-SF-40
Central wavelength 440~460nm (typical value 450nm), output power 40mW, no extinction ratio.
