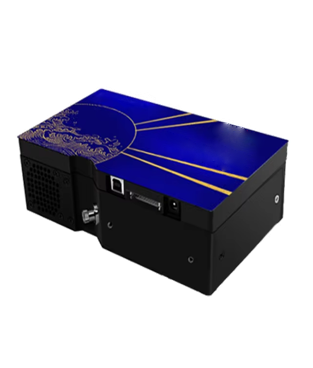

VL-Spec-2000 Cooled Spectrometer

https://source.venuslabtech.com/mall-prod/5f18a8bf-c47f-4200-a513-d4de14a71481.png

Industrial-grade refrigerated micro fiber optic spectrometer

Shallow cooling temperature control, low noise and stability
High optical performance
Flexible acquisition and control
Multi-interface for easy integration

Enter your email address to get free access, receive a product brochure, or enjoy special discounts.

Overview

Specifications

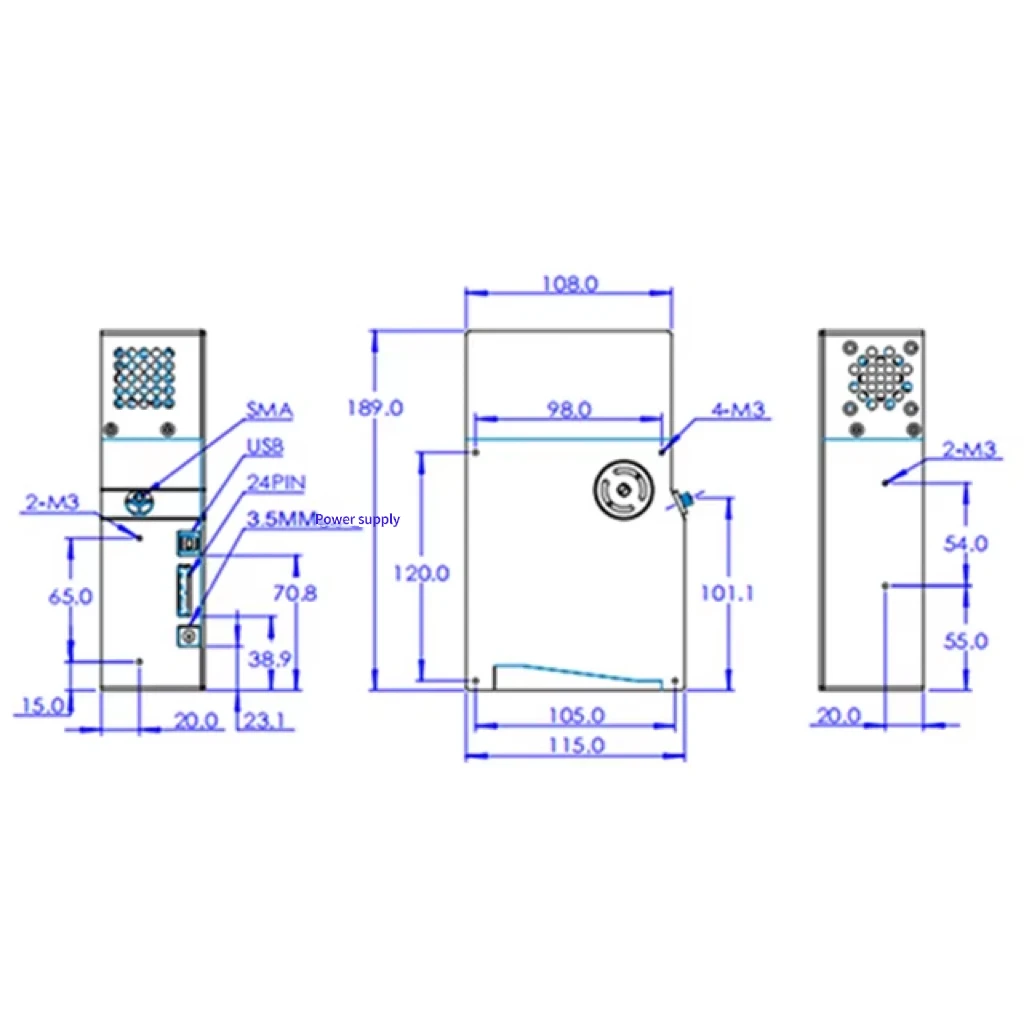

Interface Definition

Typical Spectrum

Introduction to VL-Spec-2000 Cooled Spectrometer：

Based on the symmetric CT optical path design, it has a front focal length of 100mm and a rear focal length of 110mm, adopts a numerical aperture of N.A0.11, and is equipped with a platform-based grating configuration (300-2400 lines/mm optional). It is adapted to the Key-SMA905 optical fiber interface, can be compatible with multi-core densely arranged bundled multi-core optical fibers, and the consistency of optical fiber plugging and unplugging strength is ≤7%. The overall size is 182×109×56mm and the weight is 1.12kg, which takes into account both optical performance and integration portability, and is suitable for the long-term stable detection needs of industrial sites and scientific research scenarios.

It is suitable for industrial on-site measurements such as laser measurement, plasma emission spectroscopy measurement, color measurement, absorbance measurement, and Raman measurement. It can also play an important role in the scientific research field, meeting the needs of long-term stable detection in both on-site and scientific research scenarios.
