Large photosensitive area (Φ1.5mm) + spherical window combination, double enhancement of weak light signal intensity: the large photosensitive area increases light intake, and the spherical window condenses light to enhance local light density, adapting to extremely weak light environments;

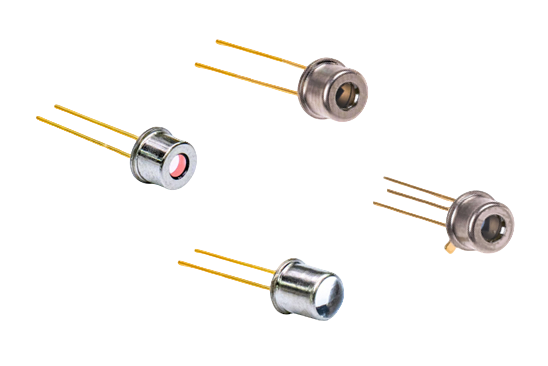

Inheriting the stability of the TO18 package, signal acquisition can be achieved without complex optical systems in extremely weak light scenarios, reducing the overall cost of the equipment.
| Photosensitive Area Size (mm) | Φ1.5 | Window Type | Optical Glass/Spherical |
| Max Dark Current (VR=10mV) (pA) | - | Junction Capacitance (VR=0V,f=100kHz) (pF) | 20 (Typ) |
| Rise Time (RL=1kΩ,VR=0V) (μs) | 0.07 (Typ) | Shunt Resistance (VR=10mV) (GΩ) | - |
| Quantity | Price(USD) | Ship Date |
|---|---|---|
| 1-10 | TBD | |
| 10- | TBD |
