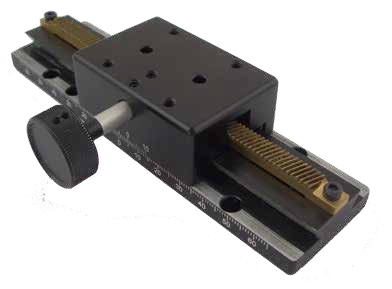

Venus Vega™ Manual Stages

Part Number: VL-MQ-XL-Rack+

Advantages: Fast adjustment with large displacement per turn for quick coarse positioning over a wide range.

Differences: Prioritizes speed and travel over fine‑tuning feel compared to lead‑screw drives.

Applications: Rapid camera/lens focusing, production fixture positioning, and probe coarse adjustment.

Images are for display purposes only.

Specifications

Travel Range	Load Capacity	Self Weight	Resolution
120 mm	4 kg	0.34 kg	10 μm (0.01mm)

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Travel Range	Load Capacity	Self Weight	Resolution
	VL-MTS-25-X	± 3.2 mm	2 kg	0.06 kg	10 μm		VL-MTS-60-X	± 6.5 mm	10 kg	0.23 kg	10 μm		VL-STS-60-X	± 6.5 mm	10 kg	0.55 kg	10 μm		VL-MD-X60A-25-C	25 mm	15 kg	0.5 kg	0.001 mm		VV-MP-Z60S-Lift	±6.5 mm	49 N (5 kgf)	0.58 kg	0.01 mm
