VL-CHU1080PX Output Camera

Multi-scenario microscopic imaging tool with dual-interface convenient output device

Dual-interface collaborative output
Professional imaging performance
User-friendly operation design
Flexible storage and compatibility
Industrial-grade reliability

Overview

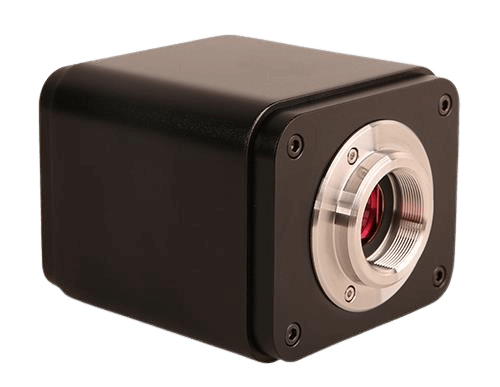

Introduction to VL-CHU1080PX Output Camera

VL-CHU1080PX Output Camera is a multi-interface C-mount CMOS camera launched by VenusLab. It is equipped with high-performance CMOS sensors such as Sony IMX385, IMX334 (discontinued), and IMX415. Its resolution ranges from 2 million to 8 million pixels, and it supports synchronous output through dual HDMI and USB interfaces. The HDMI interface is compatible with the HDMI 1.4 standard, enabling high-definition video output at up to 60fps@1080P. Combined with the built-in XCamView software, operations such as exposure, white balance, and image measurement can be completed using a USB mouse. The USB interface supports the UVC standard. The camera is equipped with an SD card slot and a USB interface, supporting local storage and preview of images (in JPEG/TIFF formats) and videos (in MP4 format with H264/H265 encoding). It adopts a CNC precision-machined housing and has a wide operating temperature range of -10~50℃. It can be widely adapted to biological microscopes and stereomicroscopes, meeting the needs of scenarios such as scientific research observation, industrial inspection, and digital teaching.

Features:

C interface design, equipped with a high-sensitivity CMOS sensor
Supports simultaneous output of HDMI + USB dual interfaces
Embedded XCamView software (including mouse control panel, zoom/mirror/crosshair and other toolbars)
Built-in SD card image capture, video recording and browsing/playing functions
Equipped with Ultra-Fine color engine to ensure accurate colors
CNC shell is formed in one piece, with a durable structure

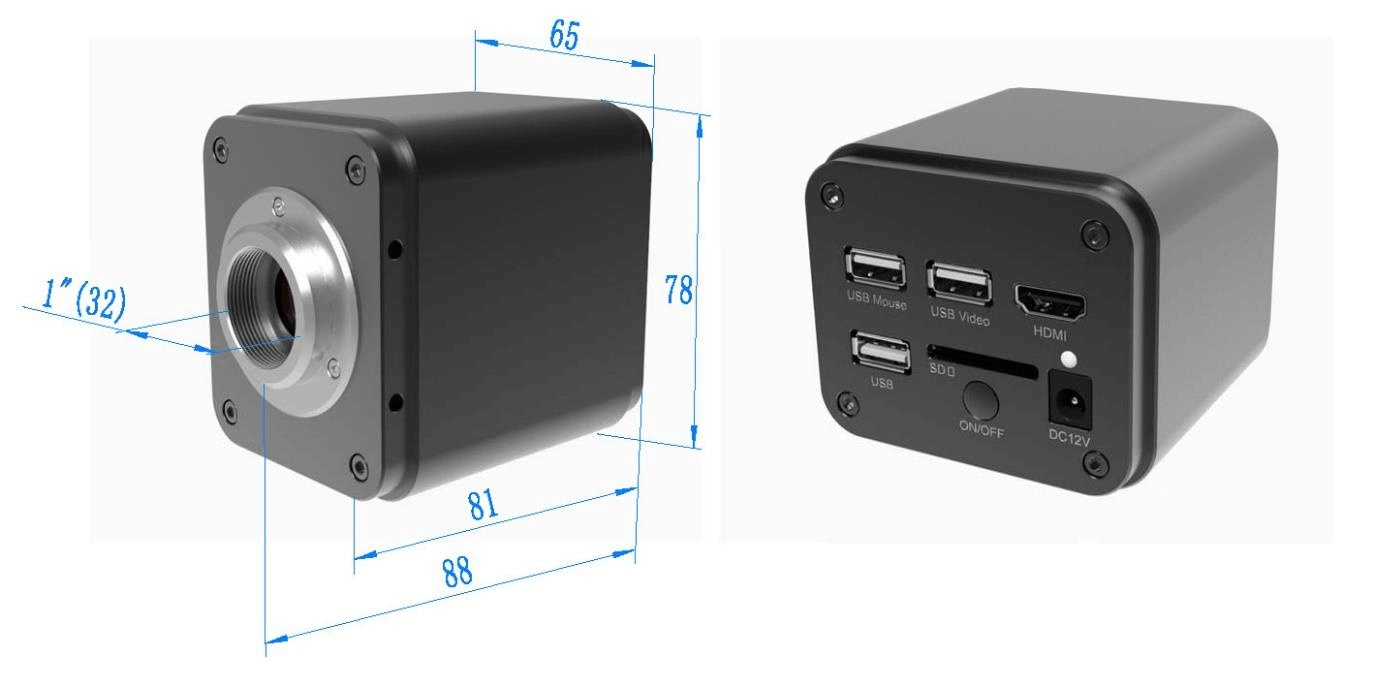

Dimension:

Specifications

Common Parameter Specification Table

Interface	Function Description
USB Mouse	Connect USB mouse for easy operation with embedded XCamView software;
USB Video	Connect PC or other host device to realize video output transmission;
HDMI	Comply with HDMI1.4 standard. 1080P format video output for standard displayer;
USB	Connect USB flash drive for capturing video and image storage;
SD	Comply with SD3.0 standard and SD card could be inserted for video and images storage;
LED	LED status indicator;
DC12V	Power adapter connection (12V/1A);
ON/OFF	Power switch;
Video Output Interface	Function Description
HDMI Interface	Comply with HDMI1.4 standard; 60fps@1080P;
USB Video Interface	Connecting USB port of PC for video transfer; MPEG4 format video;
Function Name	Function Description
Video Saving	Video format: 1920*1080 H.264/H.265 encoded MP4; Video saving frame rate: 60fps(XCAM1080MP4/XCAM1080MP4 (Suspended)); 30fps(XCAM1080PMP4)
Video Saving
Image Capture	2M (19202160, XCAM1080P2MPA) JPEG/TIFF image in SD card ; 8M (38402160, XCAM1080P8MPA/XCAM1080P8MPB) JPEG/TIFF image in SD card ;
Image Capture
Measurement Saving	Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode.
Measurement Saving
ISP Function	Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment， Color to Gray 50HZ/60HZ Anti-flicker Function
Image Operations	Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function
Embedded RTC (Optional)	To support accurate time on board
Restore Factory Settings	Restore camera parameters to its factory status
Multiple Language Support	English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian
Software Environment under USB Video Output
White Balance	Auto White Balance
Color Technique	Ultra-Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture or Movie
Operating System	MiMicrosoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux


PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	Ethernet Port: RJ45 Ethernet Port
	Display: 19" or Larger
	CD - ROM
Operating Environment
Operating Temperature (in Centidegree)	-10°~ 50°
Storage Temperature (in Centidegree)	-20°~ 60°
Operating Humidity	30~80% RH
Storage Humidity	10~60% RH
Power Supply	DC 12V/1A Adapter

Packing List

Packing Information for VL-CHU1080PX Series

Standard Packing List
A	Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs,1.47kg/ box)
B	One VL-CHU1080PX series camera
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard




D	USB Mouse
E	HDMI cable
F	USB2.0 A male to A male gold - plated connectors cable / 2.0m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H	SD card(16G or above; Speed: class 10)
I	Adjustable lens adapter	C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075


J	Fixed lens adapter	C-Mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075


	Note:For K and L optional items, please specify your camera type(C - mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application.
K	108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
L	108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
M	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Explore Series

	Model	Pix(μm)	G Sensitivity Dark Signal	Exposure	FPS/Resolution	Sensor & Size(mm)	Binning
	VL-1080P2MPA	3.75×3.75	1175mv with 1/30s 0.15mv with 1/30s	0.04 - 1000ms	60@1920×1080 (HDMI) 50@1920×1080 (USB)	Sony IMX385(C) 1/2.7" (2.02×3.04)	1×1		VL-1080P8MPB	1.45×1.45	9.1mv with 1/30s 0.3mv with 1/30s	0.04 - 1000ms	30@3840×2160 (HDMI) 30@3840×2160 (USB)	Sony IMX575(C) 1/2.5" (4.7×3.52)	1×1
