VL-EFAF4K16M Auto-focus Camera
Targeting medical inspection and ultra-high-definition industrial inspection scenarios
- Flagship-level imaging
- Fully compatible with EF mount
- Multi-interface collaborative output
- Intelligent image processing
- Cross-platform software ecosystem
Overview
Introduction:
VL-EFAF4K16M Auto-focus Camera is an intelligent auto-focus camera compatible with Canon EF mount. It integrates 4K and 16-megapixel imaging capabilities, as well as multiple interfaces including HDMI, NETWORK, and USB.
Powered by Sony back-illuminated CMOS and AI algorithms, it covers scenarios such as medical testing (ophthalmology/stomatology) and ultra-high-definition industrial inspection, while supporting professional functions like real-time reading of lens parameters and depth-of-field synthesis.
Features:
- Large size, high-resolution, and high-performance Sony back-illuminated CMOS sensor
- Compatible for Canon EF mount Lenses, achieving electric control of lens aperture, manual/auto focusing
- Based on lens focusing control, achieve the depth of field synthesis function of the focused images
- Provide lens distortion correction function

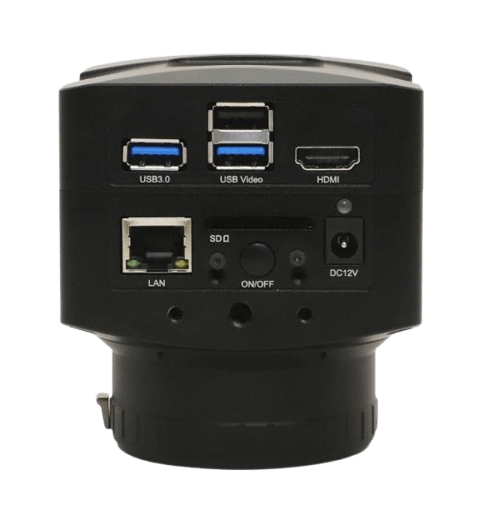

- 4K HDMI/ NETWORK / USB multiple video synchronous outputs
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- Excellent ISP with local tone mapping,3D denoising and ROI white balance ensures great quality of video image.
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and other measurement functions

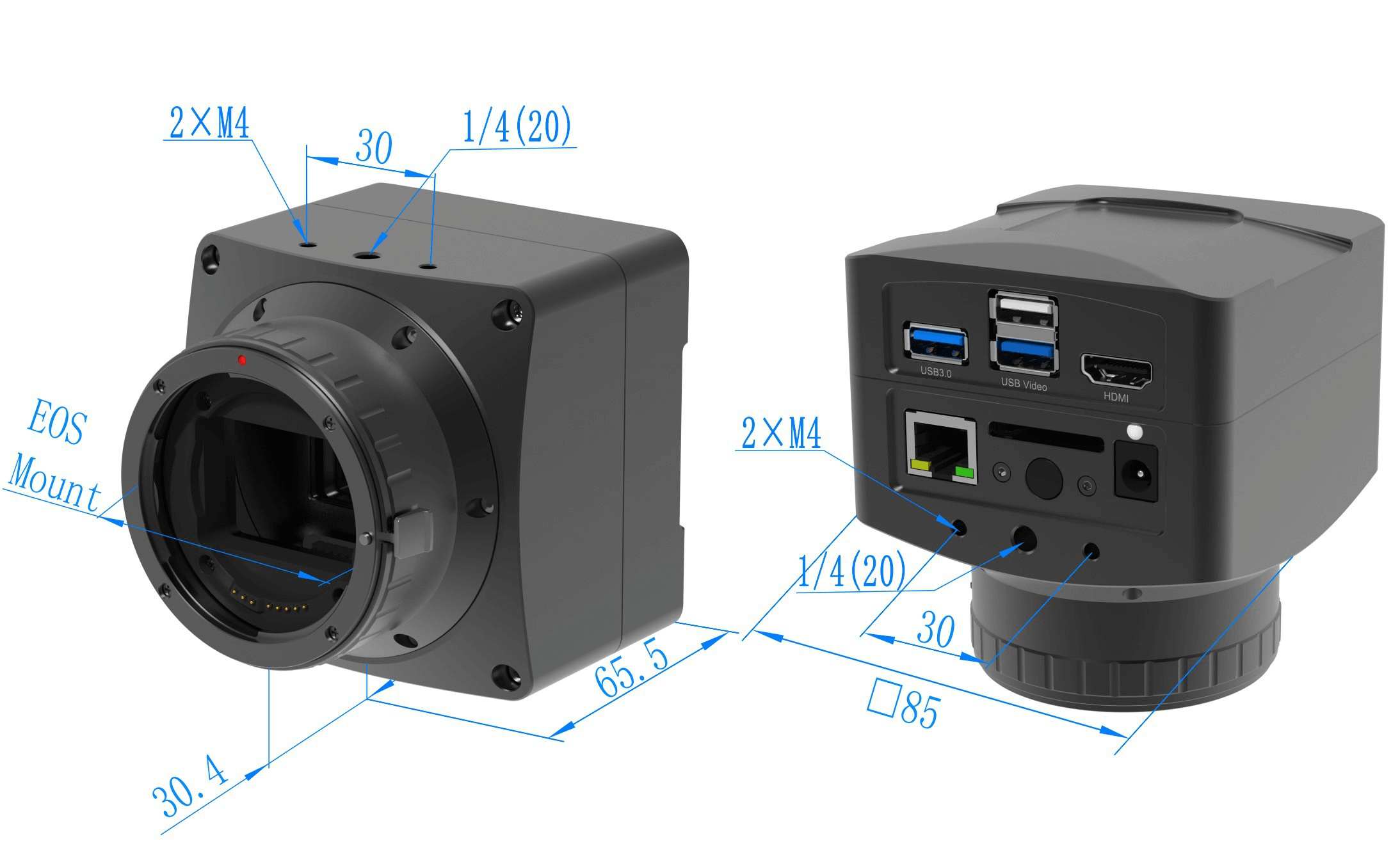

Dimension:
Specifications
Lens Supported

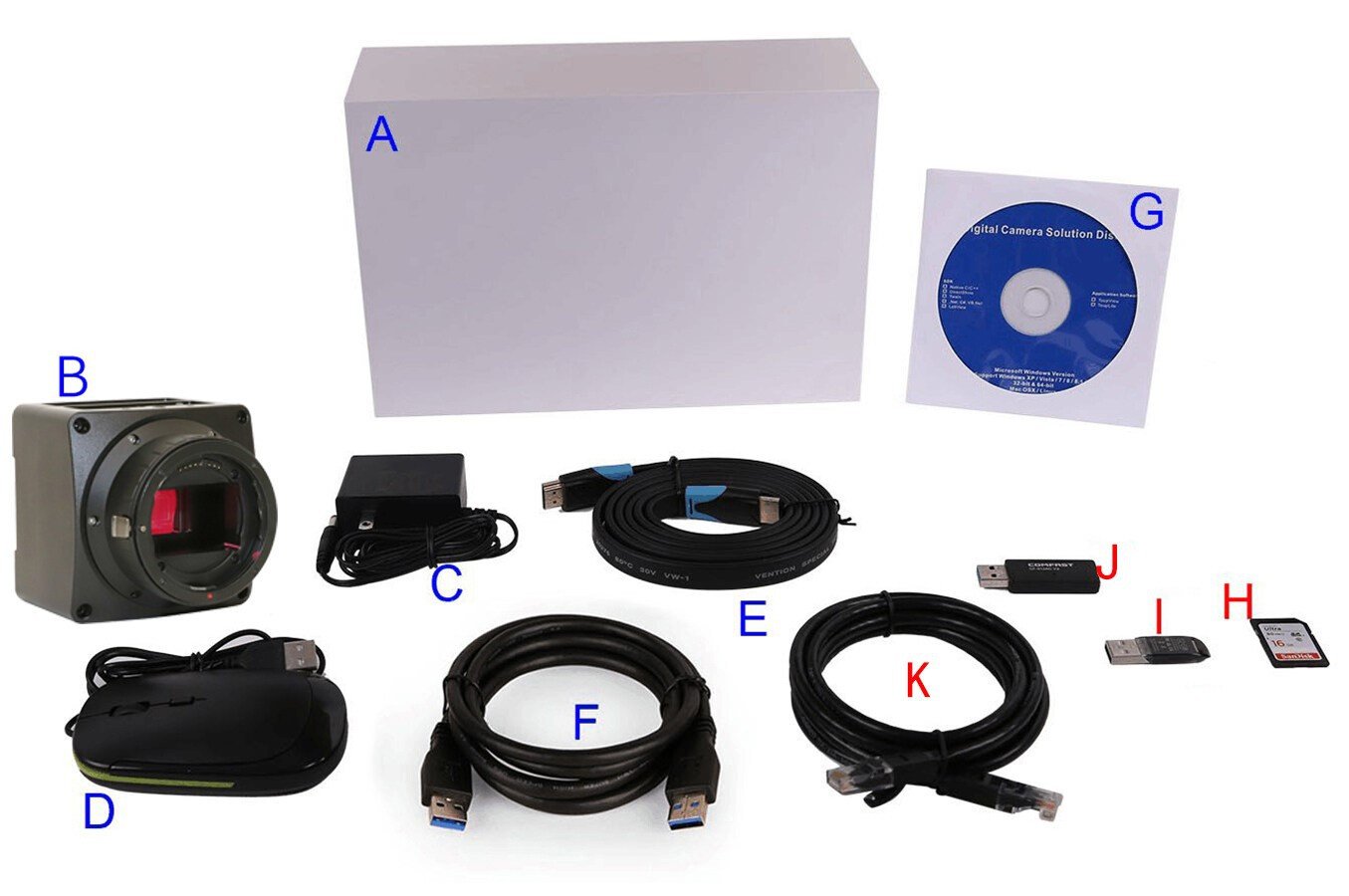

Packing List
