Four-In-One Fiber-Coupled Laser System

Introduction:

Four commonly used laser bands are integrated into the same system. There is no need to additionally set up 4 single-wavelength devices, and "multi-band simultaneous/switchable output" can be achieved. This significantly reduces the equipment footprint and procurement costs, and is especially suitable for scenarios requiring multi-color excitation (such as multi-color fluorescence imaging) and multi-band spectral analysis, avoiding synchronization errors between multiple devices.

9μm core diameter single-mode fiber (SF) + 0.13 numerical aperture, the output spot is close to an ideal Gaussian distribution, with a focusing accuracy up to the micrometer level, which is far superior to the beam quality of multimode fibers. It is suitable for scenarios such as Raman spectroscopy, confocal microscopy, and precision material detection that require "small spot + high energy concentration".

Features:

• Four-band integrated design
• Single-mode fiber with high beam quality
• High stability + intelligent control
• Compact integration + wide environmental adaptability

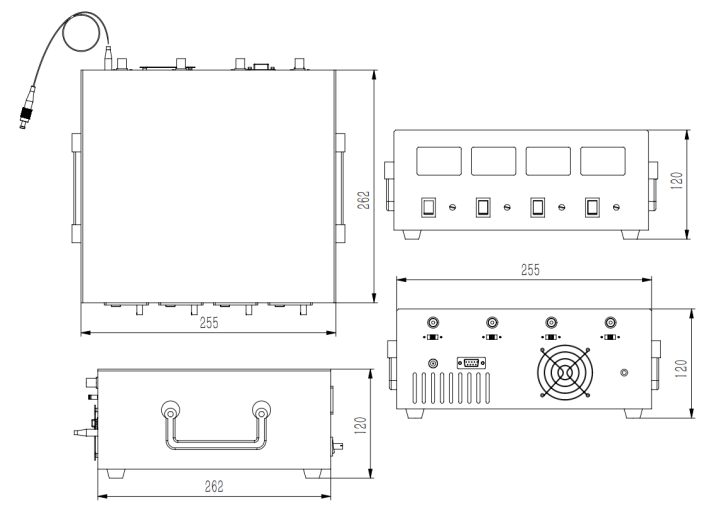

Dimension:

Common Parameter Specification Table
