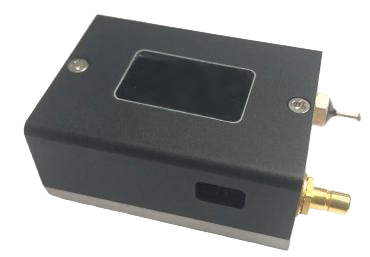

Multi-Channel & Integrated Acousto-Optic Modulator
The Ultimate Solution for Parallel Processing & Compact Integration
- Parallel Processing
- Integrated Design
- UV Optimization
- Precision Shift
Overview
Specialized Control: From Multi-Beam Lithography to All-in-One Sensing
This series includes two unique sub-categories:
1.355nm UV Multi-Channel Series: Utilizing high-transmission Quartz crystals, supporting 6, 10, or 20 independent channels. Operating at 220MHz with precise channel pitch (900µm or 450µm) and global crosstalk <1%, it ensures independent and precise modulation for every spot—a core component for PCB manufacturing and microelectronics packaging.
2.633nm Integrated Series: Designed for 633nm lasers with built-in 40MHz or 60MHz driver circuits. Users only need to provide DC power (12V/24V) to achieve frequency shifting or modulation. Its compact package (TC type) greatly simplifies the opto-mechanical design of interferometers and Doppler velocimetry systems.
Key Applications
- Laser Direct Imaging : Multi-channel AOMs enable high-speed, parallel patterning of PCBs and displays.
- Laser Lithography : Precision UV modulation for semiconductor and micro-optics fabrication.
- Laser Doppler Vibrometry : Integrated AOMs provide a compact reference frequency shift for portable vibration measurement.
- Interferometric Sensing : All-in-one solution for heterodyne detection systems.
Qualification
Selection Chart

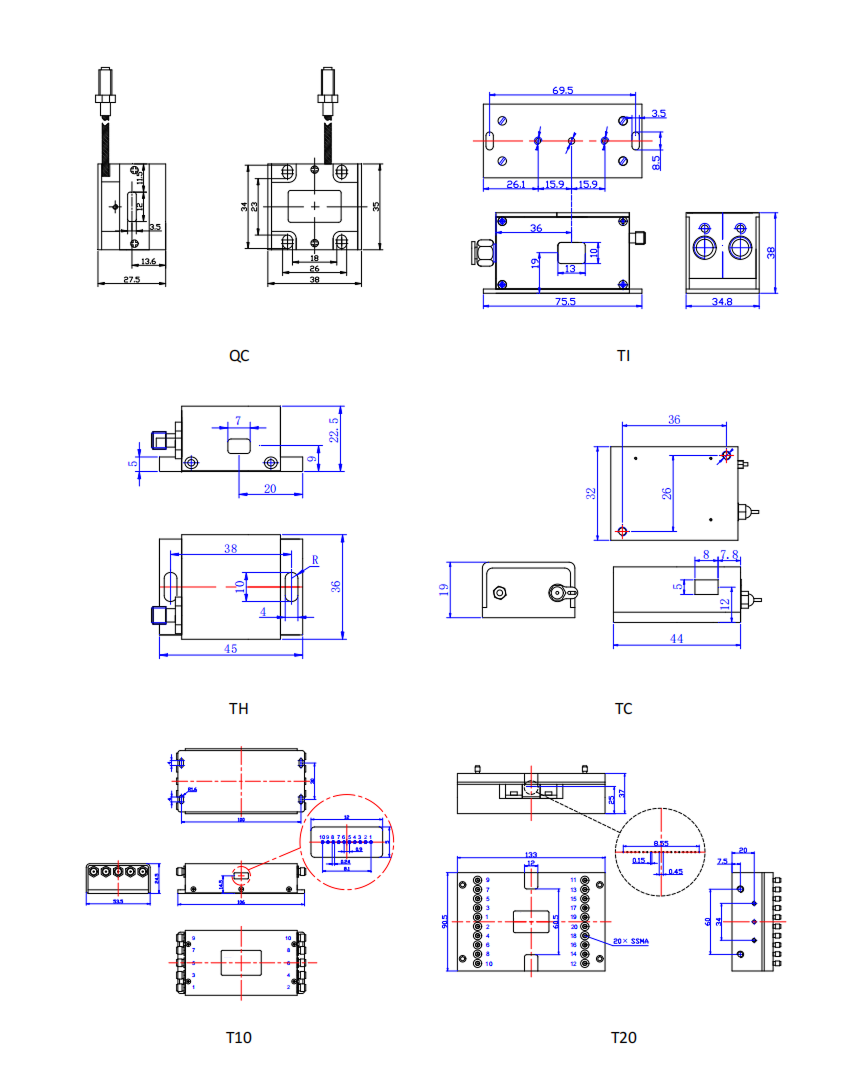

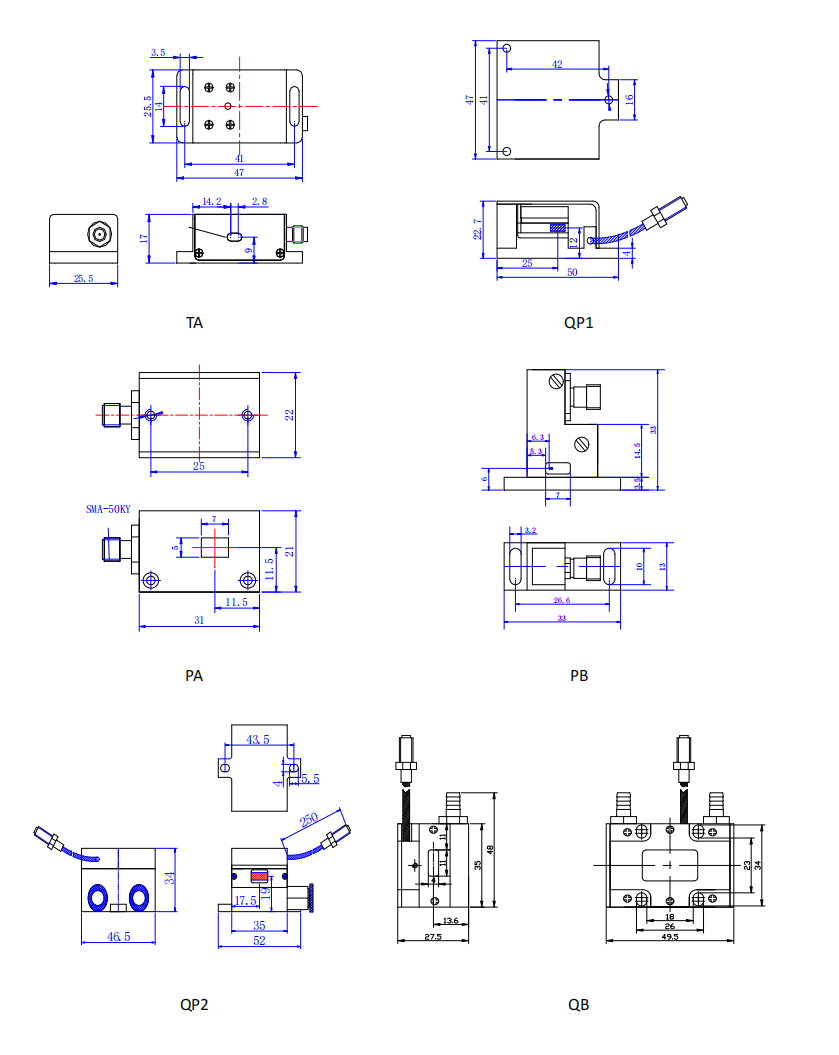

Structural Diagram
