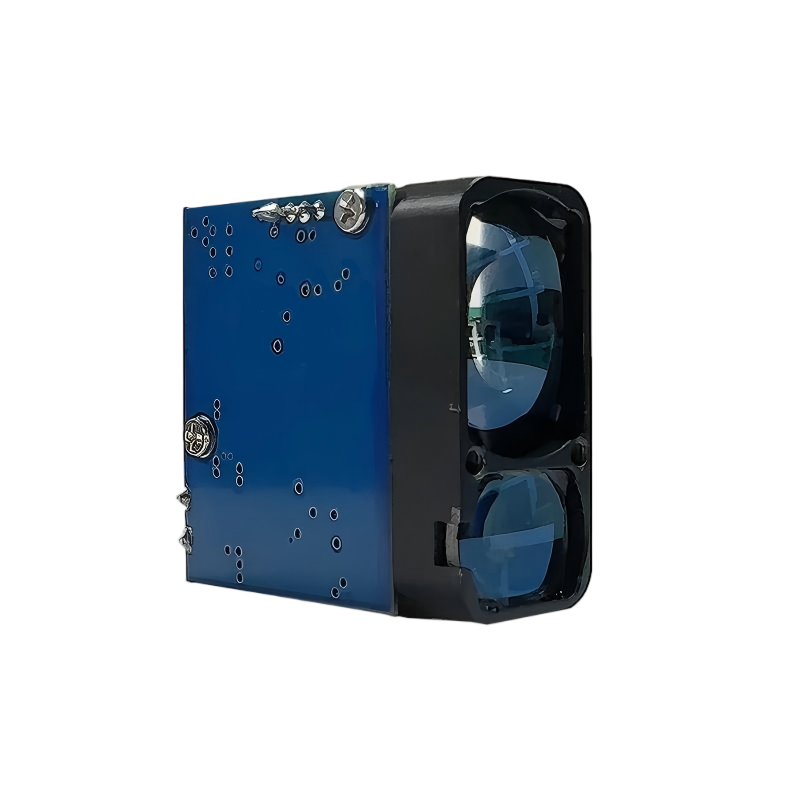

905nm Laser Rangefinder Module

905nm Laser Rangefinder: The Precision Core of Miniaturized and High-Efficiency Detection

The 905nm Laser Rangefinder series is an innovative line of semiconductor laser modules designed to integrate advanced technology with a human-centric design approach. Utilizing a unique 905nm laser diode as its core light source, the series ensures Class I eye safety while setting benchmarks for efficient energy conversion and stable output characteristics.

Key Features and Technical Advantages:

• Exceptional Precision with Advanced Algorithms: Equipped with high-performance chips and independently developed advanced algorithms, these modules achieve a full-range accuracy control within 1 meter, with short-range precision accurate to 0.1 meters through a sophisticated ranging data compensation algorithm.
• Enhanced Stability and Noise Suppression: The high-repetition-frequency ranging method effectively suppresses environmental noise and interference, ensuring stable and accurate measurement results even for small targets or in complex outdoor environments.
• Ultra-Low Power Consumption and Sustainability: Designed with energy efficiency as a core priority, the series features low power consumption (operating at ≤1.8W and standby as low as 0.8W), significantly enhancing the battery life and economy of portable devices.

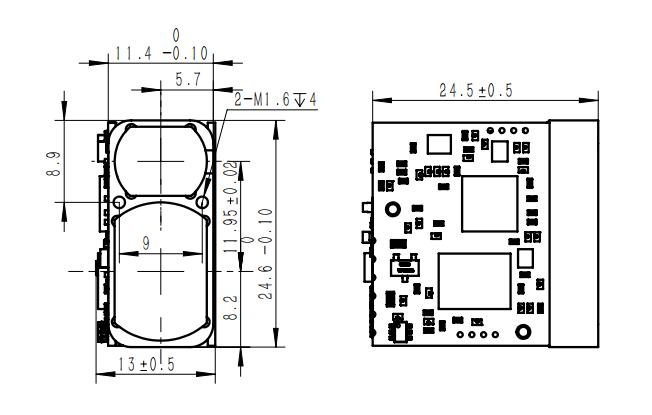

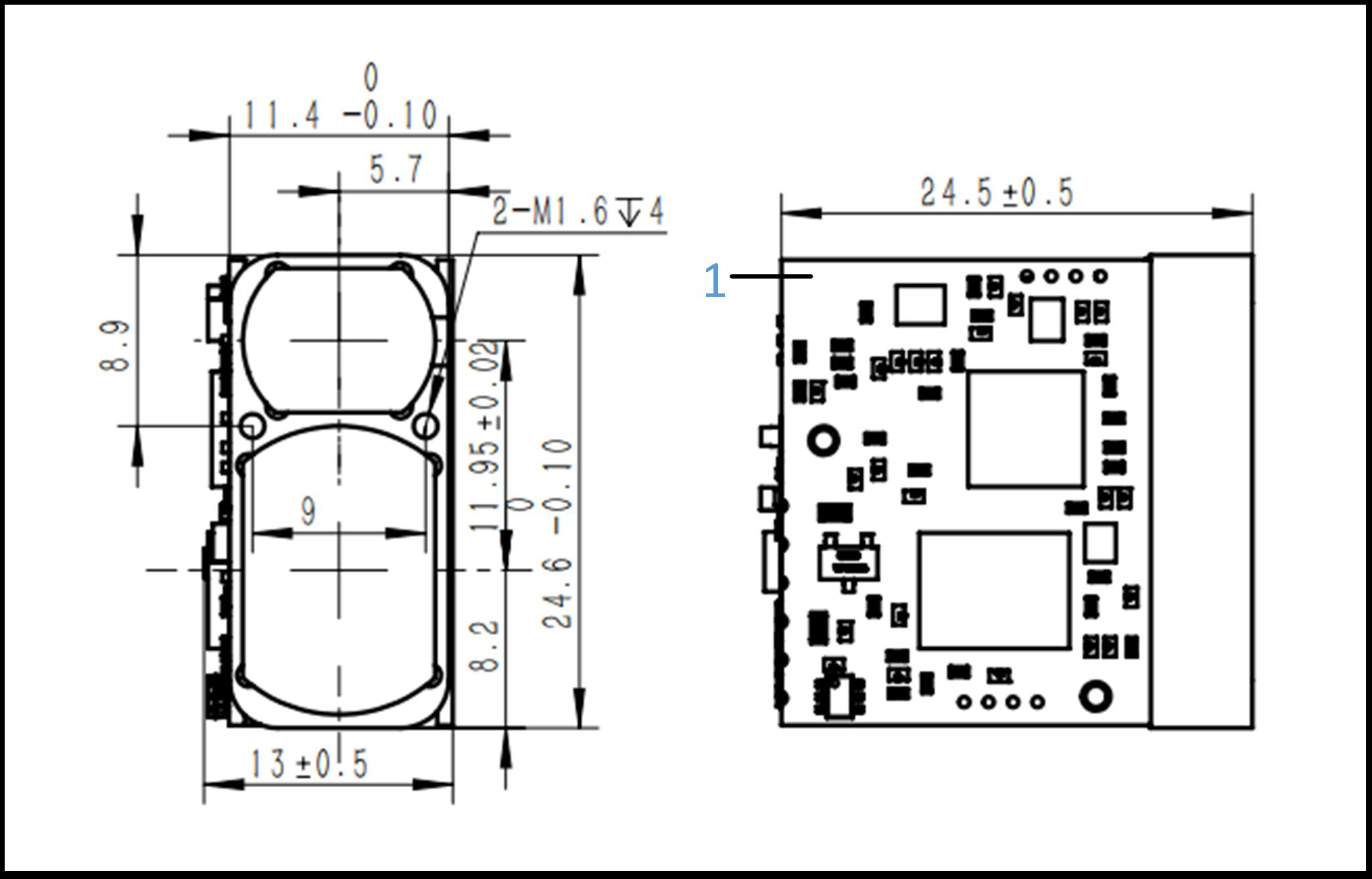

• Extreme Miniaturization for Seamless Integration: Each module weighs only approximately 11 grams with dimensions of 25 × 26 × 13 mm, offering zero burden for carrying and maximum flexibility for integration into space-constrained systems.
• Rugged Reliability in Harsh Conditions: The series demonstrates extraordinary performance under extreme operating ambient temperatures ranging from -40°C to +65°C (model dependent), with high resistance to impact (1000g, 20ms) and vibration.

General Technical Specifications (VL-DLRF Series)

VL-DLRF Series Selection Guide

VL-DLRF-1200F

VL-DLRF-1500

VL-DLRF-2000
