0-45° AOI High-Power Laser Mirror

A versatile beam-steering solution engineered for high-energy laser systems

Wide Angle Insensitivity
Ultra-High Reflectivity
High Laser Damage Threshold
Substrate Versatility
Surface Processing

Download

Data Sheet

Overview

Flexible Beam Steering: High Reflectivity Maintained Across 0-45° AOI

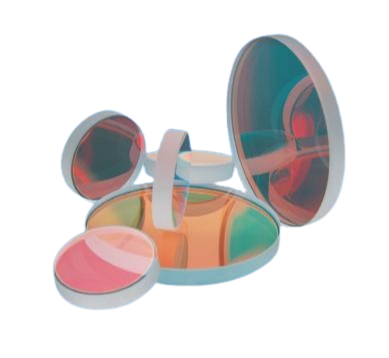

The VLGLM/VLQLM Series is a high-performance laser mirror designed for versatility in complex optical setups. Unlike standard mirrors optimized for a single angle (e.g., 45° only), this series features advanced dense dielectric coatings that maintain exceptional spectral performance at any Angle of Incidence (AOI) from 0° to 45°.

This wide-angle insensitivity makes it the perfect solution for laboratory optical construction and industrial laser alignment. Whether you are steering a beam by 90° (45° incidence) or performing fine angular adjustments, these mirrors deliver >99.5% (up to 99.9%) reflectivity, minimizing energy loss and preventing thermal buildup.

Available in both K9 (N-BK7 equivalent) and UV Fused Silica substrates, these mirrors are optimized for common laser lines including Nd:YAG (1064nm, 532nm) and Ti:Sapphire (700-900nm).

Reference Curve Diagram

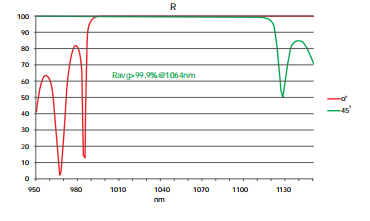

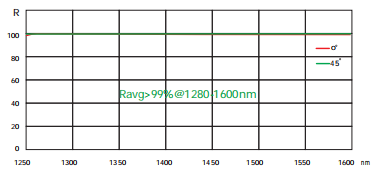

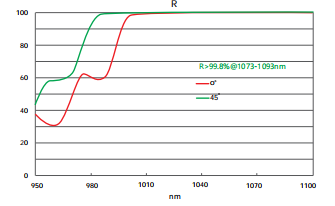

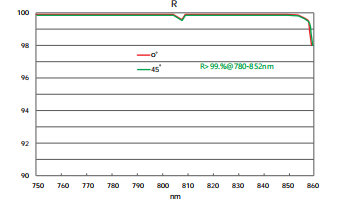

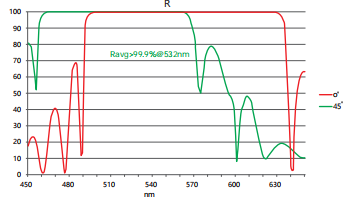

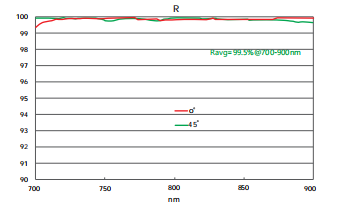

Typical Reflectivity Curve: Broadband Dielectric Mirror (0-45° AOI)

Selection Chart

High Performance Laser Mirrors (0-45° AOI)

Item No.	Wavelength (nm)	Diameter (mm)	Thickness (mm)	Clear Aperture (%)	Reflectivity (%)	Substrate
VLGLM25.4-532	532	25.4	5	> 90%	> 99.9%	K9
VLGLM30-532	532	30	5	> 90%	> 99.9%	K9
VLGLM50-532	532	50	5	> 90%	> 99.9%	K9
VLGLM12.7-700/900	700-900	12.7	6	> 90%	> 99.5%	K9
VLGLM25.4-700/900	700-900	25.4	5	> 90%	> 99.5%	K9
VLGLM50-700/900	700-900	50	5	> 90%	> 99.5%	K9
VLGLM50.8-700/900	700-900	50.8	5	> 90%	> 99.5%	K9
VLGLM25.4-700/900-F	700-900	25.4	6	> 90%	> 99.5%	K9 (Frosted)
VLGLM50.8-700/900-F	700-900	50.8	8	> 90%	> 99.5%	K9 (Frosted)
VLGLM12.7-780/852	780-852	12.7	5	> 90%	> 99.9%	K9
VLGLM25.4-780/852	780-852	25.4	5	> 90%	> 99.9%	K9
VLGLM25.4-780/852-F	780-852	25.4	5	> 90%	> 99.5%	K9 (Frosted)
VLGLM25-1064	1064	25	5	> 90%	> 99.9%	K9
VLGLM50-1064	1064	50	5	> 90%	> 99.9%	K9
VLGLM25-1083	1083	25	5	> 90%	> 99.8%	K9
VLGLM50.8-1083	1083	50.8	5	> 90%	> 99.8%	K9
VLGLM12.7-1280/1600-Q	1280-1600	12.7	6	> 90%	> 99%	Quartz (SFS)
VLGLM25.4-1280/1600-Q	1280-1600	25.4	6	> 90%	> 99%	Quartz (SFS)
VLGLM50-1280/1600-Q	1280-1600	50	5	> 90%	> 99%	Quartz (SFS)
VLGLM25-1550-Q	1550	25	5	> 90%	> 99.5%	Quartz (SFS)
VLGLM30-1550-Q	1550	30	5	> 90%	> 99.5%	Quartz (SFS)
VLGLM25.4-1550	1550	25.4	5	> 90%	> 99.5%	K9
