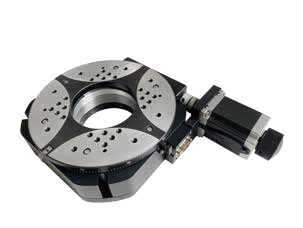

VL03RA Series-200
Heavy-duty high-precision electric rotary stage
- Heavy load and high precision: bearing capacity of 250kg, indexing ≤0.1°, precise angle control under heavy load
- Long service life and easy maintenance: precision shaft + anti-backlash worm + adjustable clearance, durable and easy to maintain
Overview
Heavy-duty high-precision electric rotary stage
The VenusLab VL03RA Series-200 is an electric rotary stage designed for industrial heavy-load precision scenarios. It features "large load capacity + high precision" as its core advantages, along with long service life and easy maintenance. It is suitable for angle control requirements in heavy-load machining and large-scale testing equipment, and can be used independently or integrated into multi-axis systems.
Features of VL03RA Series-200
- Standard motor + self-developed controller, supporting automatic control
- Precision shaft + tightly matched worm, adjustable backlash elimination, low deflection, low noise, heavy load resistance and durability
- High coaxiality of central hole + laser scale, facilitating precise positioning and reading
- Horizontal/vertical installation / multi-axis group, optional motor replacement, customization supported

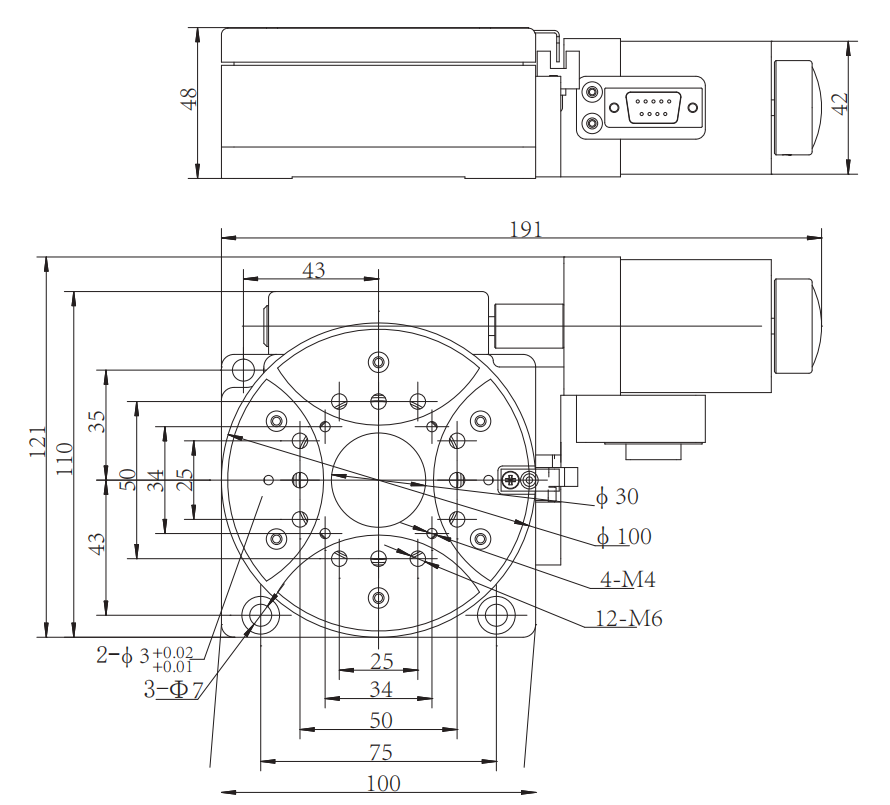

Dimension drawing of VL03RA Series-200
