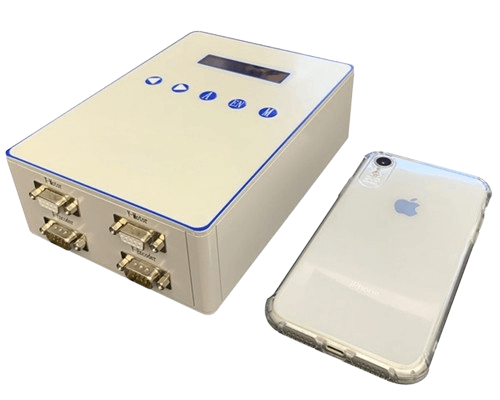

VL-MC Series-200
A cost-effective multi-axis motion control core for small and medium-sized automation scenarios
- Dual-axis 2 MHz, XY linear/arc completed in one go
- USB plug-and-play without driver, ready to use in 10 minutes
- Hardware compensation, ±1 μm repeat positioning accuracy
- 1000 segments of offline cache, two-line API for arc activation
- 8 OUT / 4 IN, emergency stop/laser synchronization
Overview
"Dual-Axis Budget Speed Box" – VL-MC Series-200
The VL-MC Series-200 is a USB plug-and-play dual-axis motion controller that drives two stepper or servo motors at up to 2 MHz. Hardware backlash compensation and native XY linear/circular interpolation deliver ±1 µm repeatability. Store 1,000 move segments on-board for stand-alone operation, or launch an arc with a two-line API call under Windows XP/7. Eight programmable outputs and four inputs handle emergency stop, laser gate, etc., in real time. Compact and budget-friendly, it turns any bench into a precision two-axis stage in ten minutes.
Features of the VL-MC Series-200
- 2-axis stepper/servo control
- Panel + IR + rocker triple operation
- 8 OUT / 4 IN software I/O
- RS232 & RS485 host ports
- XY linear / arc interpolation
