VL-Electric Mirror Mount

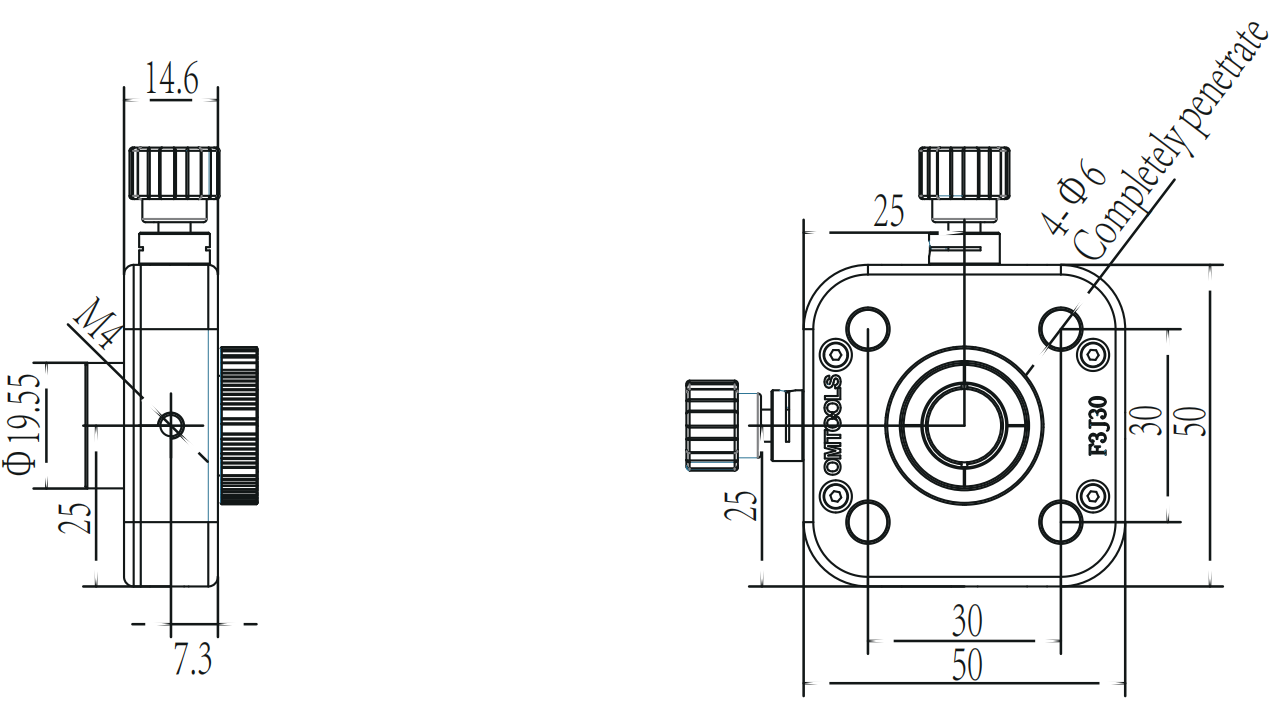

Product diagram of VL-Electric Mirror Mount K

Intelligent Beam Alignment Solution

High-res stepper + precision screw: <0.002° angular resolution for accurate optimal light capture.
Vibration-free; ideal for remote operation in enclosed, vacuum or hazardous optical environments.

Overview

Precision Beam Steering at Your Command

The Venus Apex™ series endows optical frames with a "smart brain". Based on the classic kinematic structure, it integrates precision electric actuators, enabling extremely delicate independent control of θₓ (pitch) and θᵧ (yaw). From 1-inch standard lenses to 4-inch large-aperture components, Apex™ can provide smooth, backlash-free automated angle control, making it an ideal upgrade option for building modern automated laboratories.

Applications

Precise alignment and mode optimization of laser resonators.

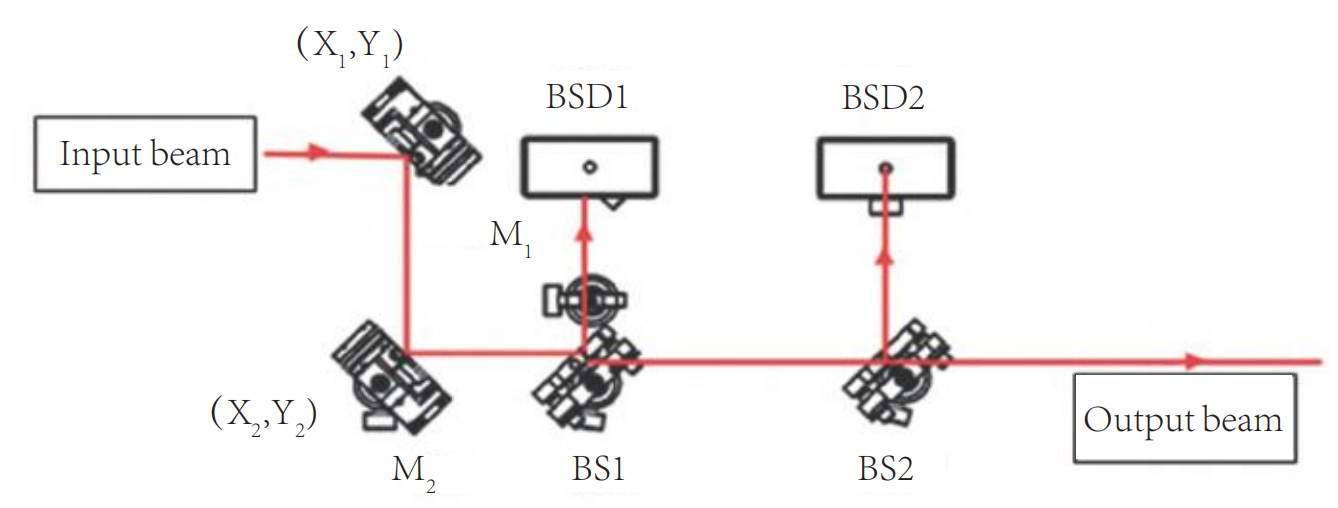

Constructing an automatic beam stabilization system with PSD/quadrant detectors.
Optical path adjustment in closed chassis, vacuum chambers, or radiation environments.
Beam scanning and switching in automated optical inspection equipment.

Selection Chart

Venus Apex™ Motorized Mirror Mounts

VenusLab SKU	Optic Size	Axis	Tilt Range	Resolution	Feature
VL-EMM-G-25	ϕ 25.4 mm	θx,θy	±2∘	0.002°	High Precision, Compact
VL-EMM-G-50	ϕ 50 mm	θx,θy	±2∘	0.002°	Standard Mid-Size
VL-EMM-G-100-A	ϕ 100 mm	θx,θy	±3∘	0.001°	Large Format, High Load
VL-EMM-G-100-B	ϕ 100 mm	θx,θy	±3∘	0.001°	Structure Variant
VL-EMM-K-20	ϕ 20 mm	θx,θy	±4∘	0.002°	Multi-Size Series
VL-EMM-K-25	ϕ 25.4 mm	θx,θy	±4∘	0.002°	Hero Model, Industry Std
VL-EMM-K-30	ϕ 30 mm	θx,θy	±4∘	0.002°	Multi-Size Series
VL-EMM-K-38	ϕ 38.1 mm	θx,θy	±4∘	0.002°	Multi-Size Series
VL-EMM-K-40	ϕ 40 mm	θx,θy	±4∘	0.002°	Multi-Size Series
VL-EMM-K-50	ϕ 50.8 mm	θx,θy	±4∘	0.002°	Large Aperture

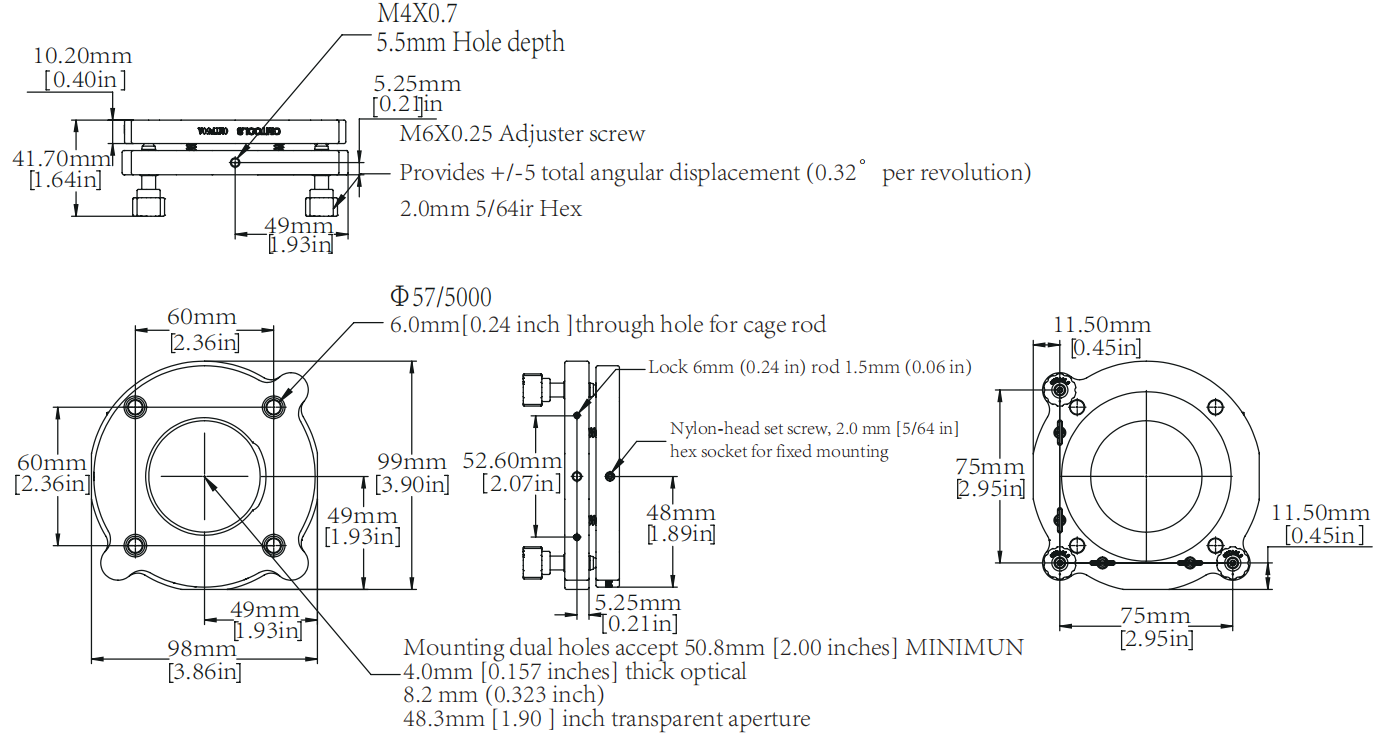

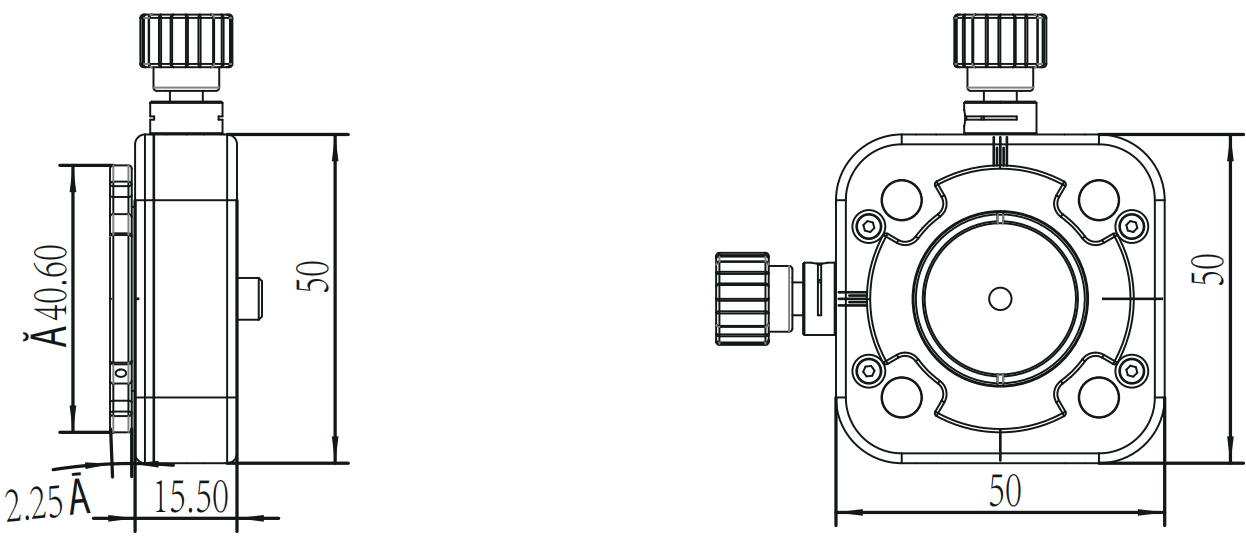

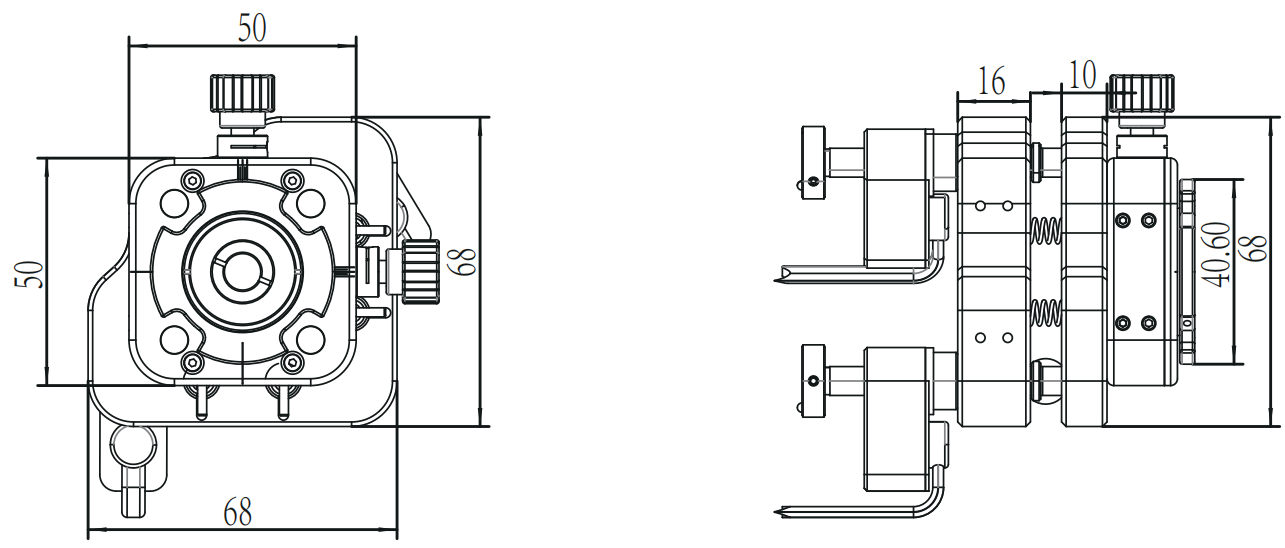

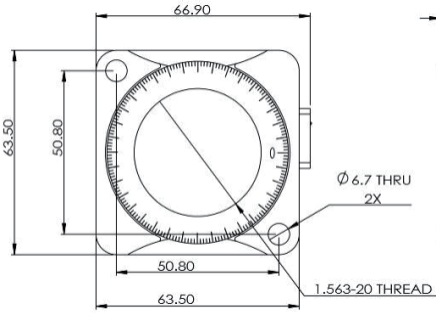

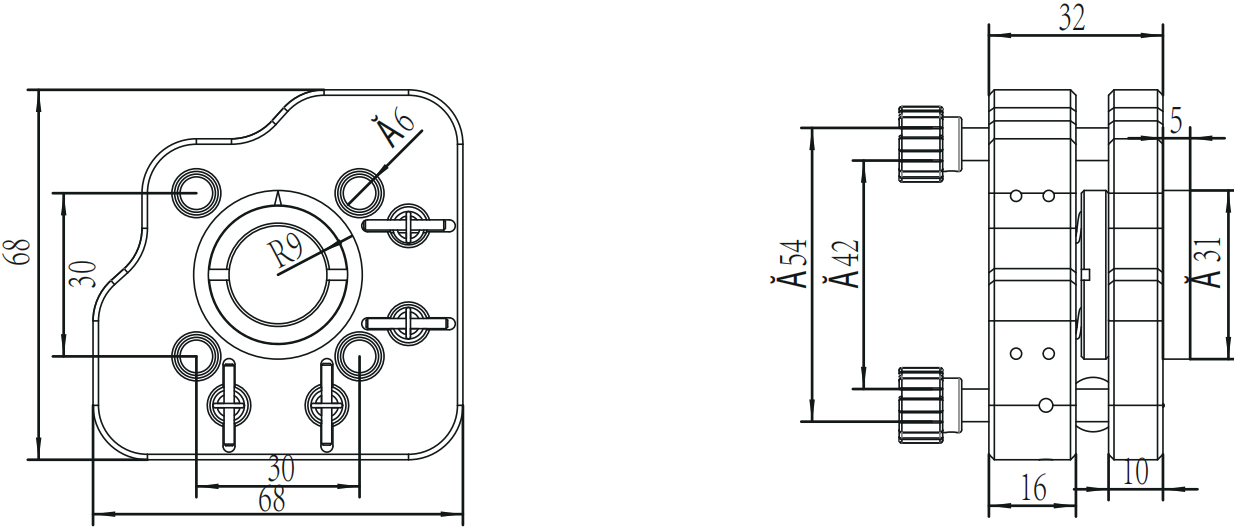

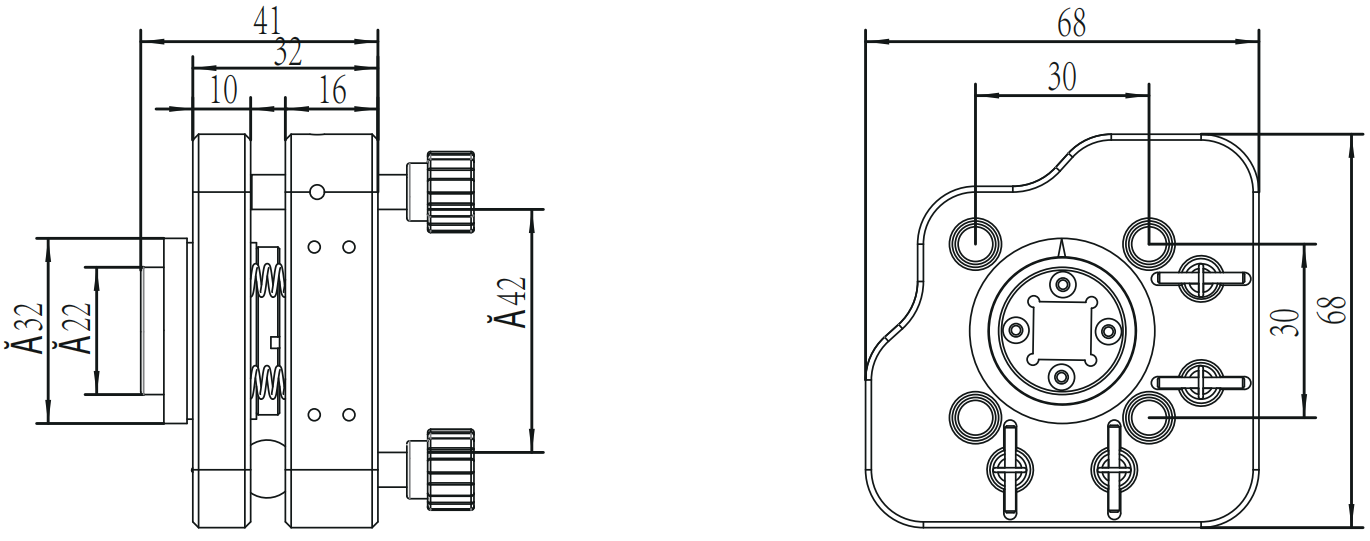

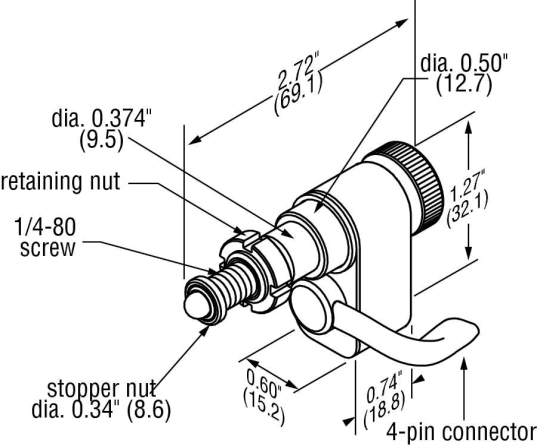

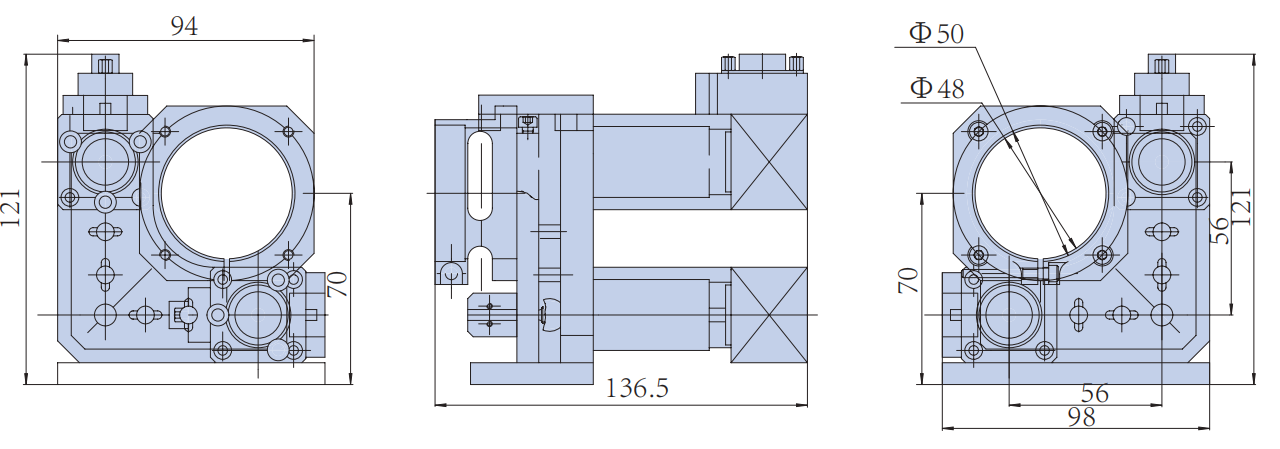

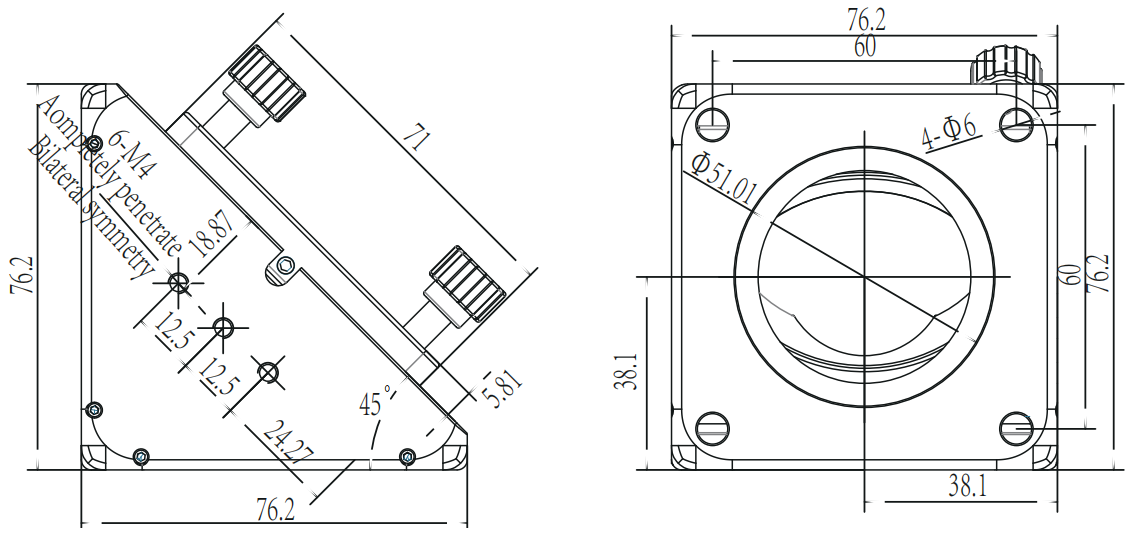

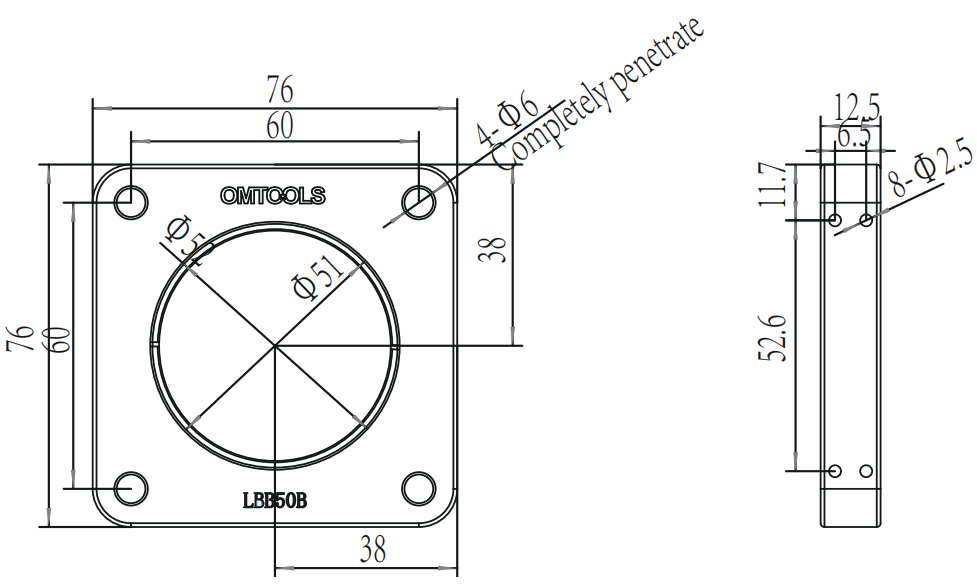

Structural Diagram

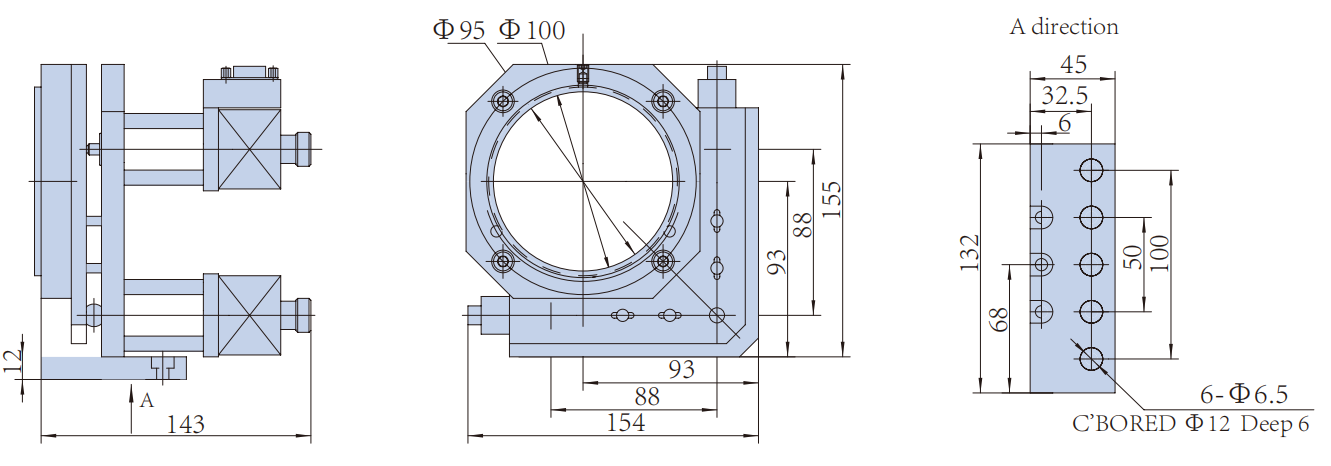

VL-EMM-G-100-A

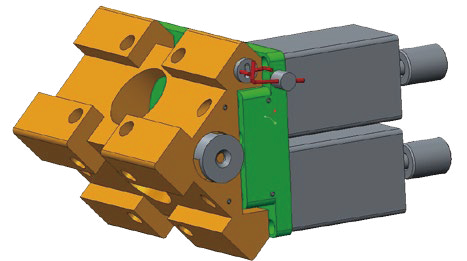

VL-EMM-G-25

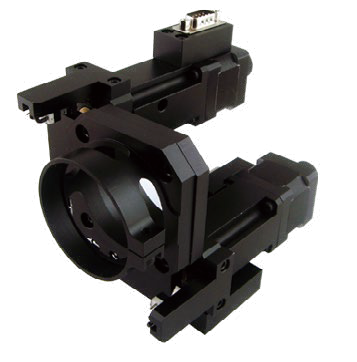

VL-EMM-G-50

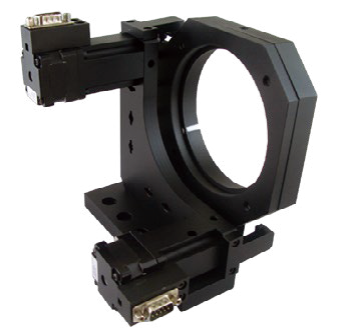

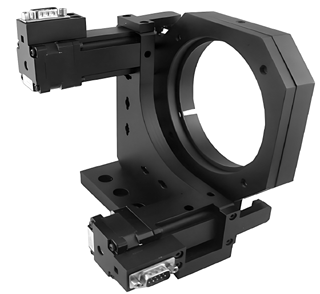

VL-EMM-G-100-B

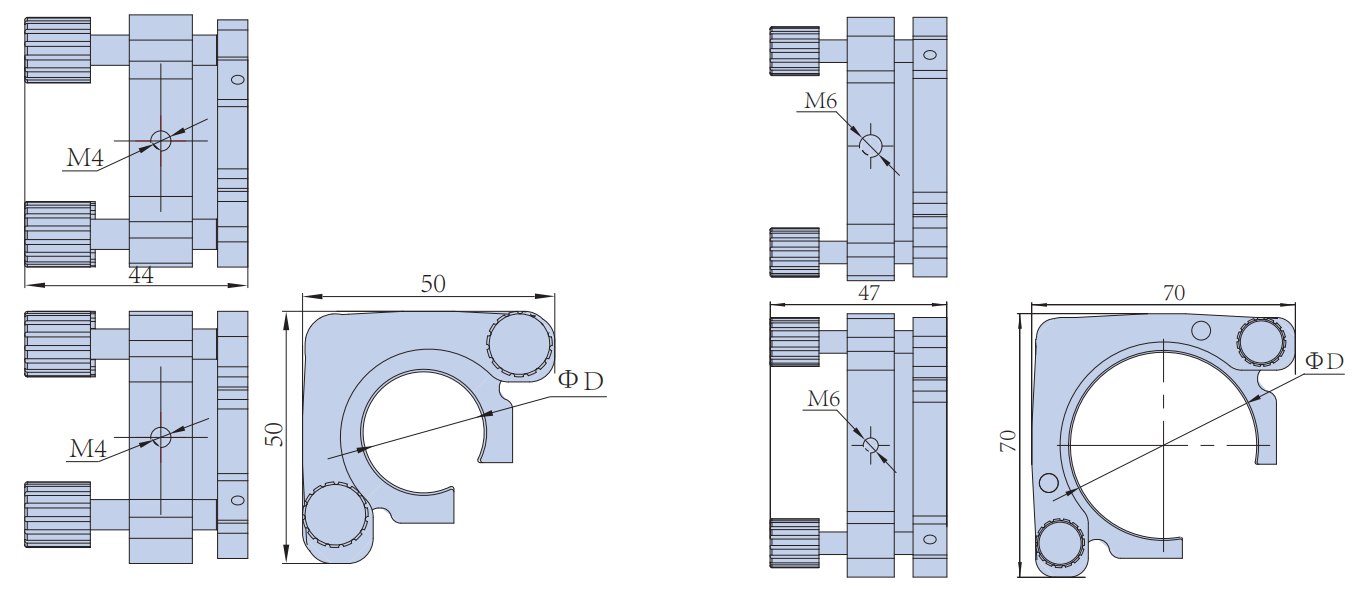

VL-Electric Mirror Mount K（VL-EMM-K-20、VL-EMM-K-25、VL-EMM-K-30、VL-EMM-K-38、VL-EMM-K-40、VL-EMM-K-50）

Explore Series

	Model	Tilt Range	Mechanism	Resolution	Optic Size
	VL-EMM-G-25	± 2°	Precision Screw	0.002°	∅ 25.4 mm (1")		VL-EMM-G-100-A	±3°	Heavy Duty Drive	0.001°	∅ 100 mm (4")		VL-EMM-K-25	±4°	Kinematic Screw	0.002°	∅ 25.4 mm (1")
