VL Beamsplitter Mount

Overview

Precise positioning, stable light splitting

A high-rigidity adjustment frame specially designed for beam splitters. Combining a high-precision biaxial fine-tuning mechanism and a stress-free clamping system, it achieves micron-level control and long-term stability of the lens attitude, and is a core basic component for constructing complex beam splitting optical paths.

Applications

Interferometry: Construction of the core optical path of interferometers.
Spectral analysis: Beam splitting and guiding in precision instruments.
Quantum optics: High-precision beam splitting in complex experimental systems.
Laser processing: Industrial-grade laser collimation and beam splitting.

Technical Specifications

VenusLab SKU	Size / Aperture	Adjustment Range / Travel	Drive & Reset Mechanism	Key Features

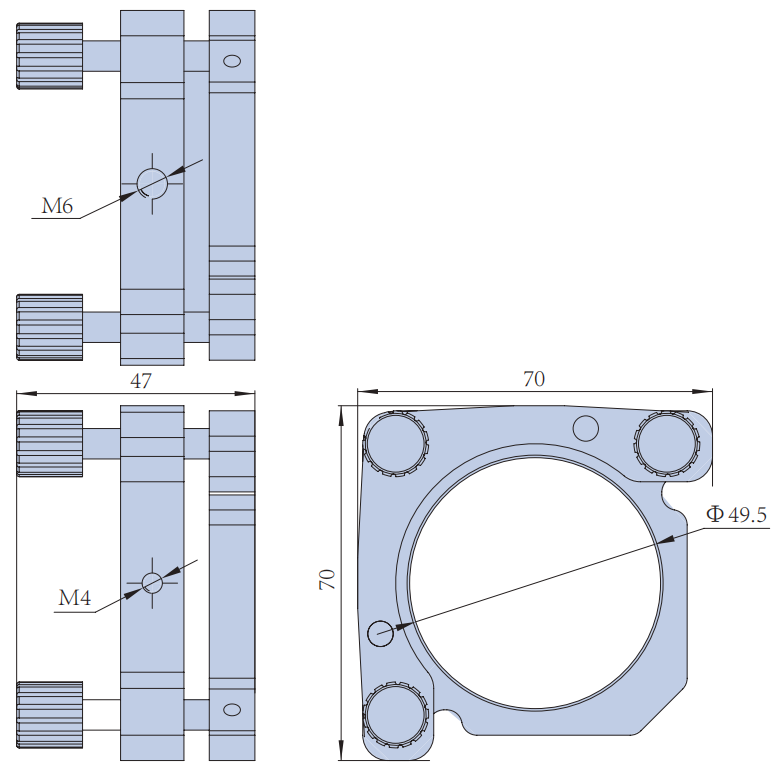

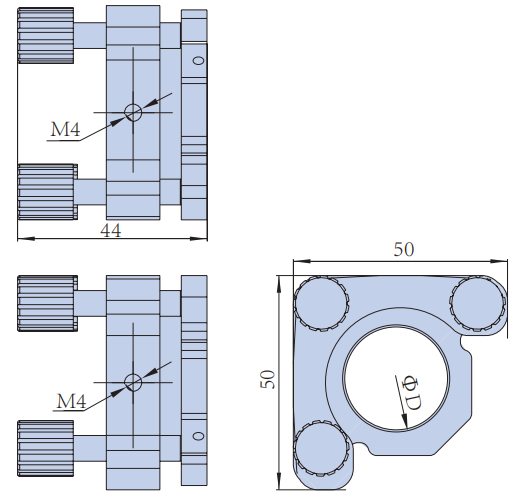

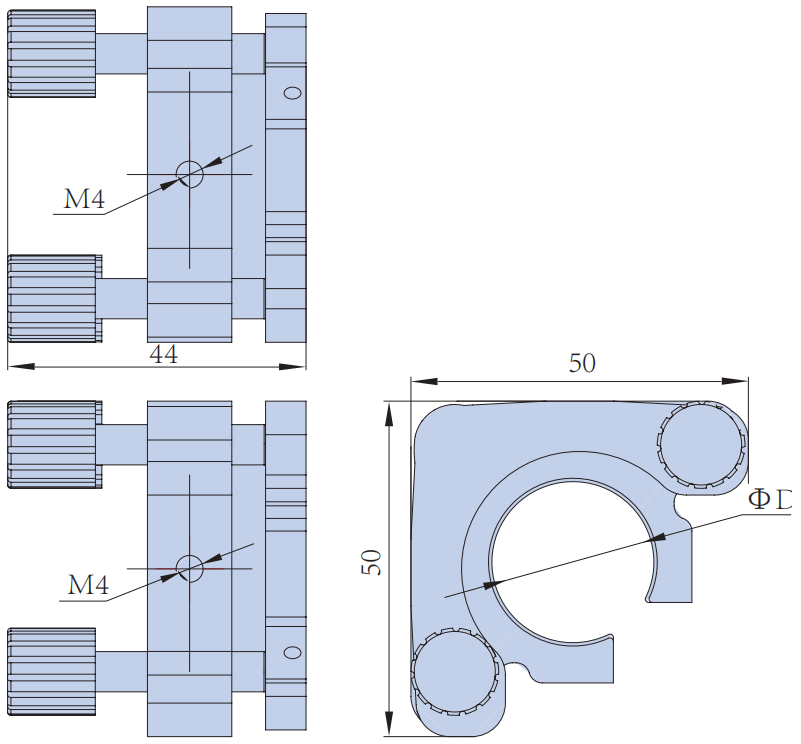

VL-BSM-100-20	Φ20 mm	Tip/Tilt	M6x0.25, Disc Spring	L-shaped structure, adjustable reset force
VL-BSM-100-25	Φ25.4 mm	Tip/Tilt	M6x0.25, Disc Spring	L-shaped structure, adjustable reset force
VL-BSM-100-30	Φ30 mm	Tip/Tilt	M6x0.25, Disc Spring	L-shaped structure, adjustable reset force
VL-BSM-100-38	Φ38.1 mm	Tip/Tilt	M6x0.25, Disc Spring	L-shaped structure, adjustable reset force
VL-BSM-100-40	Φ40 mm	Tip/Tilt	M6x0.25, Disc Spring	L-shaped structure, adjustable reset force
VL-BSM-100-50	Φ50.8 mm	Tip/Tilt	M6x0.25, Disc Spring	L-shaped structure, adjustable reset force

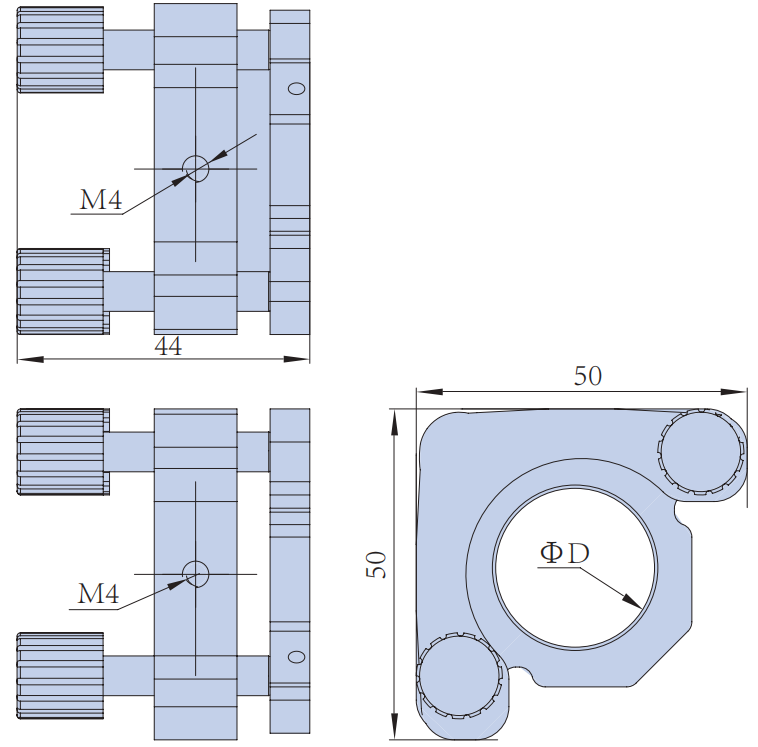

VL-BSM-110-20	Φ20 mm	Tip/Tilt	M6x0.25, Disc Spring	Right-angle enclosed, 2 mounting holes
VL-BSM-110-25	Φ25.4 mm	Tip/Tilt	M6x0.25, Disc Spring	Right-angle enclosed, 2 mounting holes
VL-BSM-110-30	Φ30 mm	Tip/Tilt	M6x0.25, Disc Spring	Right-angle enclosed, 2 mounting holes
VL-BSM-110-38	Φ38.1 mm	Tip/Tilt	M6x0.25, Disc Spring	Right-angle enclosed, 2 mounting holes
VL-BSM-110-40	Φ40 mm	Tip/Tilt	M6x0.25, Disc Spring	Right-angle enclosed, 2 mounting holes

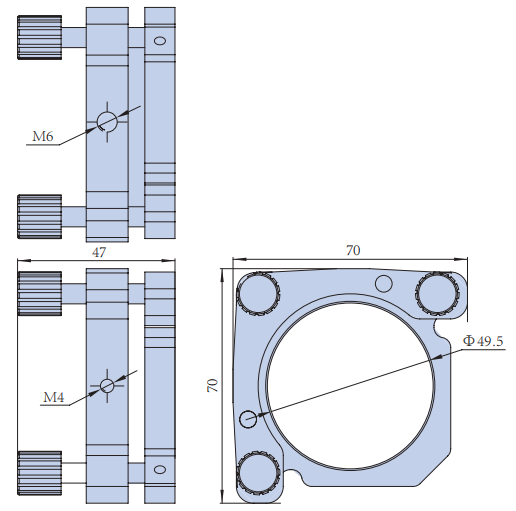

VL-BSM-110-50	Φ50.8 mm	Tip/Tilt	M6x0.25, Disc Spring	Right-angle enclosed, 2 mounting holes

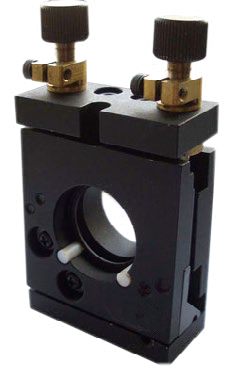

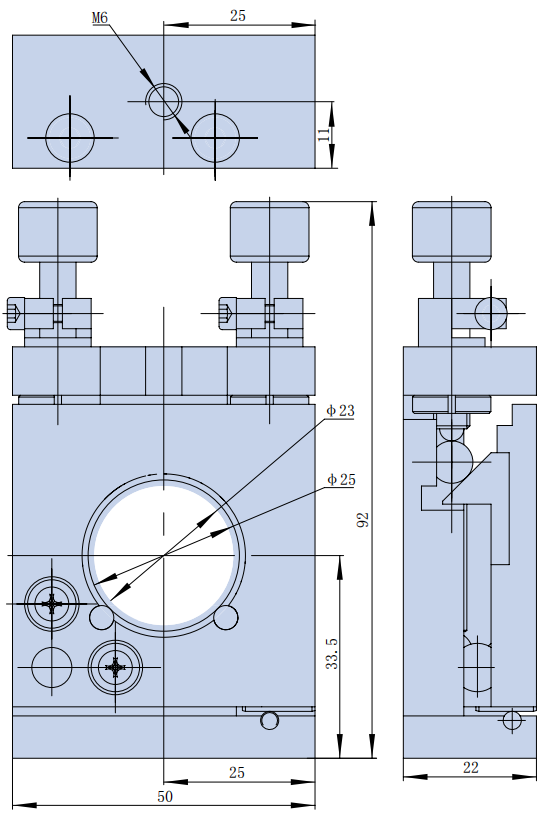

VL-BSM-120-20	Φ20 mm	Tip/Tilt	M6x0.25, Disc Spring	Top adjustment, space-saving design
VL-BSM-120-25	Φ25.4 mm	Tip/Tilt	M6x0.25, Disc Spring	Top adjustment, space-saving design
VL-BSM-120-30	Φ30 mm	Tip/Tilt	M6x0.25, Disc Spring	Top adjustment, space-saving design
VL-BSM-130-10	Φ10 mm (A=10)	Tip/Tilt	M6x0.25, Disc Spring	Lens tube mount, Teflon protection
VL-BSM-130-15	Φ15 mm (A=15)	Tip/Tilt	M6x0.25, Disc Spring	Lens tube mount, Teflon protection
VL-BSM-130-30	Φ30 mm (A=30)	Tip/Tilt	M6x0.25, Disc Spring	Lens tube mount, Teflon protection
VL-BSM-130-45	Φ45 mm (A=45)	Tip/Tilt	M6x0.25, Disc Spring	Lens tube mount, Teflon protection
VL-BSM-130-50	Φ50 mm (A=50)	Tip/Tilt	M6x0.25, Disc Spring	Lens tube mount, Teflon protection

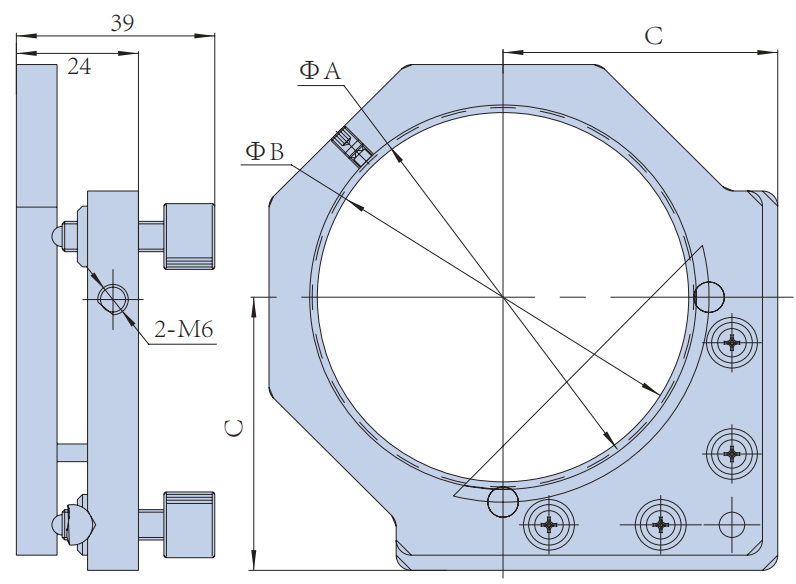

VL-BSM-03-70	Φ70 mm	Tip/Tilt	M6x0.25, Disc Spring	3-point PTFE support, large aperture protection
VL-BSM-03-76	Φ76 mm	Tip/Tilt	M6x0.25, Disc Spring	3-point PTFE support, large aperture protection
VL-BSM-03-100	Φ100 mm	Tip/Tilt	M6x0.25, Disc Spring	3-point PTFE support, large aperture protection

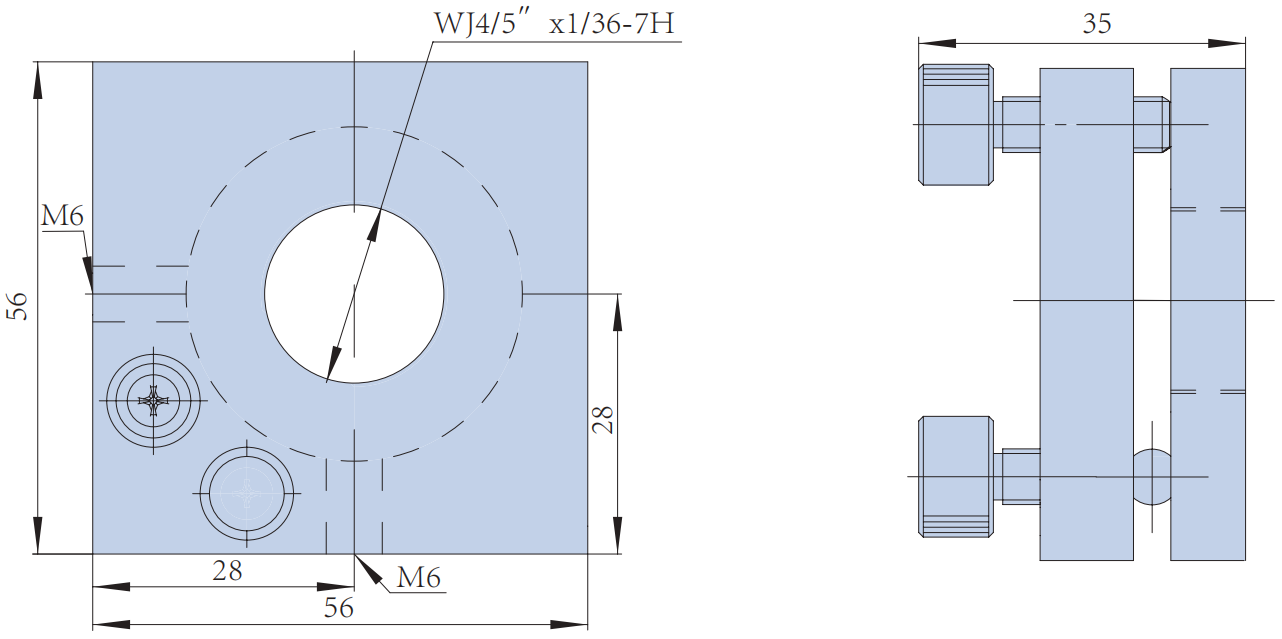

VL-BSM-OBJ	WJ4/5"-1/36" Thread	Tip/Tilt	M6x0.25, Disc Spring	Standard microscope objective thread

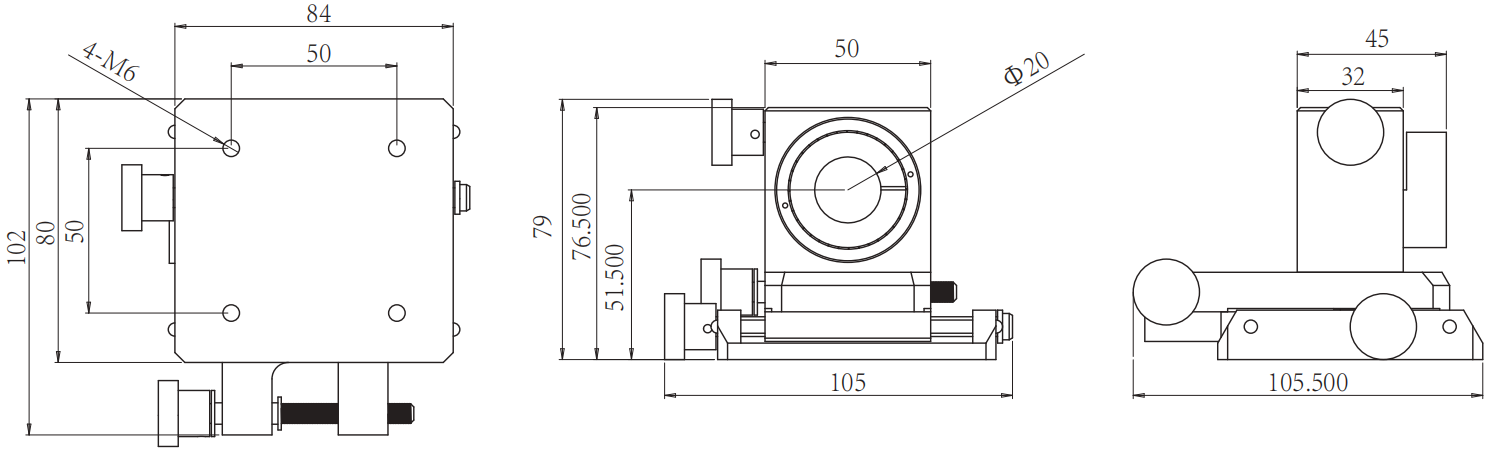

VL-BSM-M31-20	Φ20 mm Clamp	Travel ±9mm, Rotation 360°	Worm Gear + Precision Screw	Compound adjustment, with locking mechanism

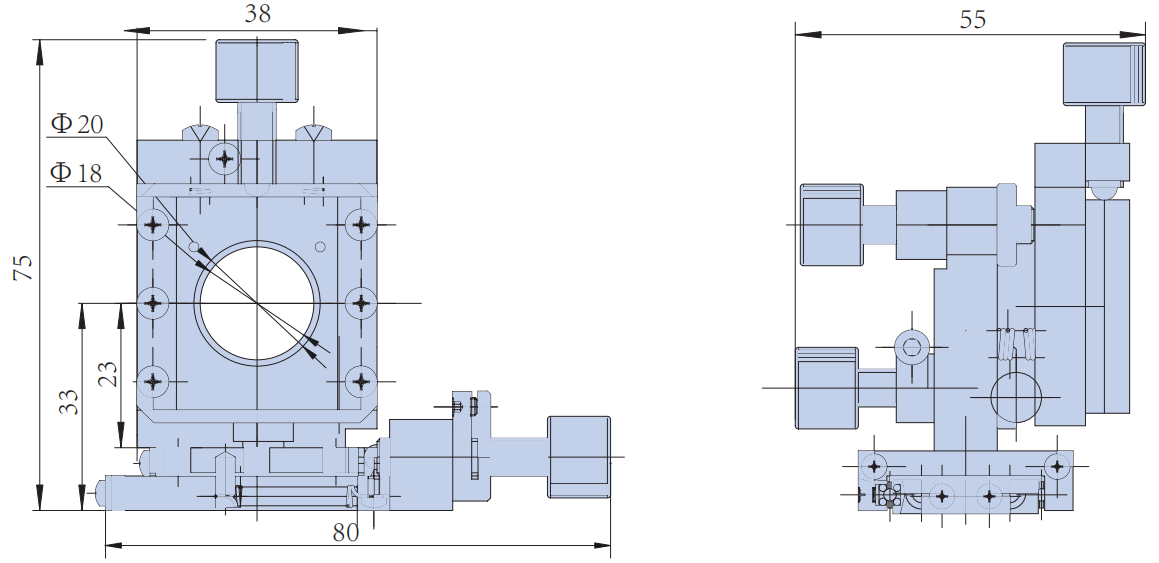

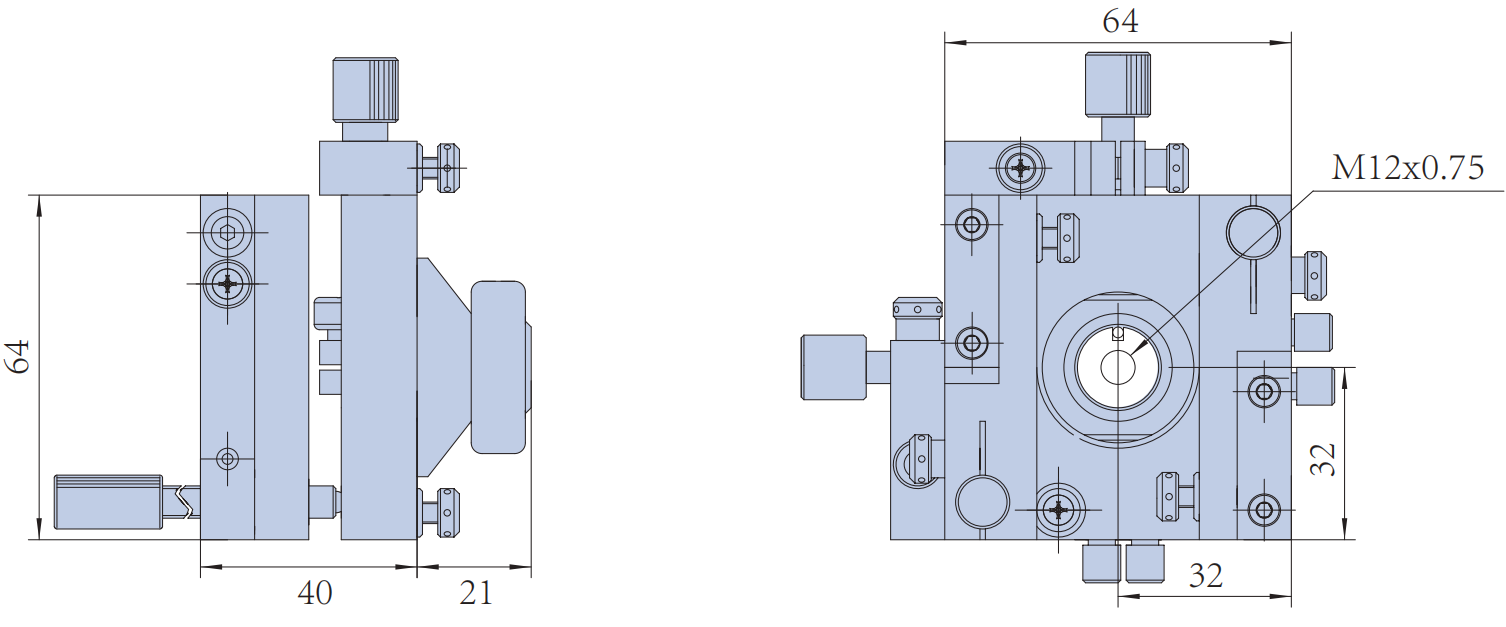

VL-BSM-M42-20	Φ20 mm	X-axis 13mm, Z-axis ±2mm, Tip/Tilt ±4°	Precision Screw Drive	Multi-axis adjustment, locking screw sleeve

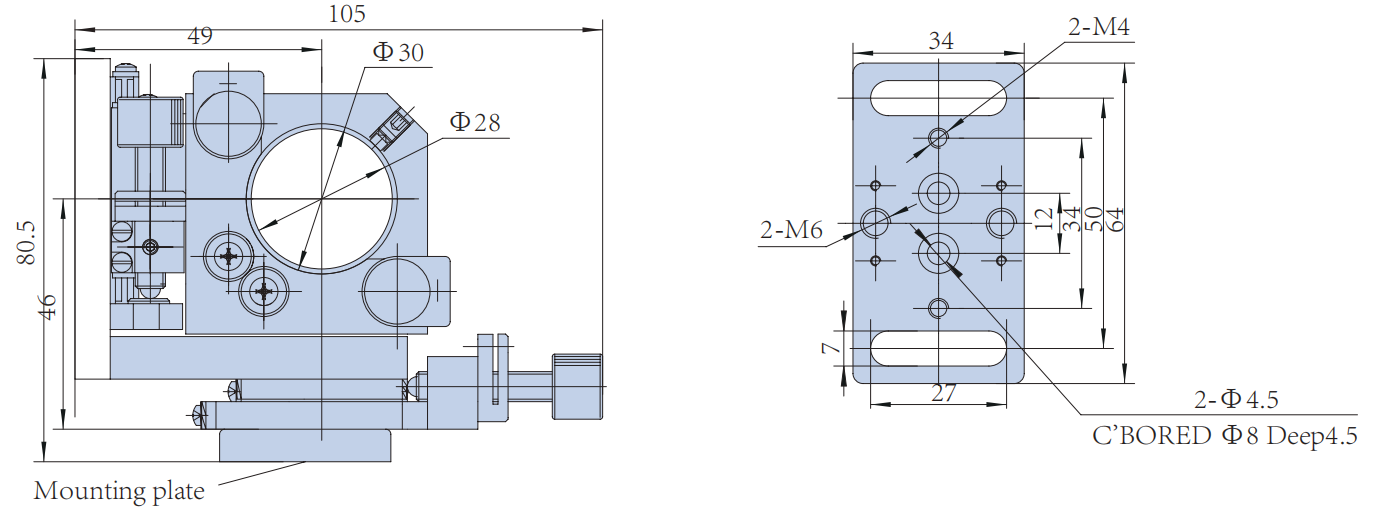

VL-BSM-M43-30	Φ30 mm	X/Y-axis 13mm, Tip/Tilt	Precision Screw Drive	4-axis adjustment, suits various aperture combos
VL-BSM-M51-10	Φ10 mm (Mounting)	Ty/Tz ±2.5mm, θy/θz ±4°	2-Stage Ultra-Precision	Res. 0.01$\mu$m, excellent anti-drift

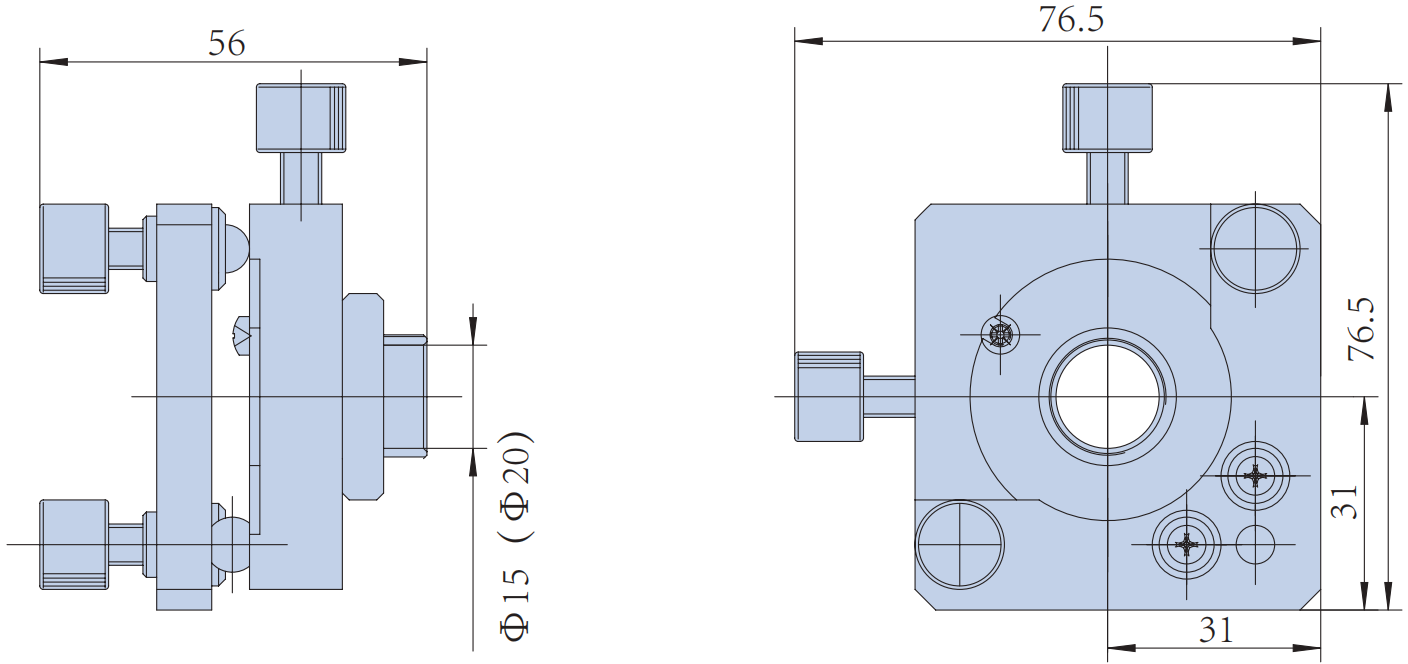

VL-BSM-M41-15	Φ15 mm / Φ20mm	Travel ±2mm, Tilt ±4°	M6x0.25, Disc Spring	Threaded ring clamp, anti-vibration

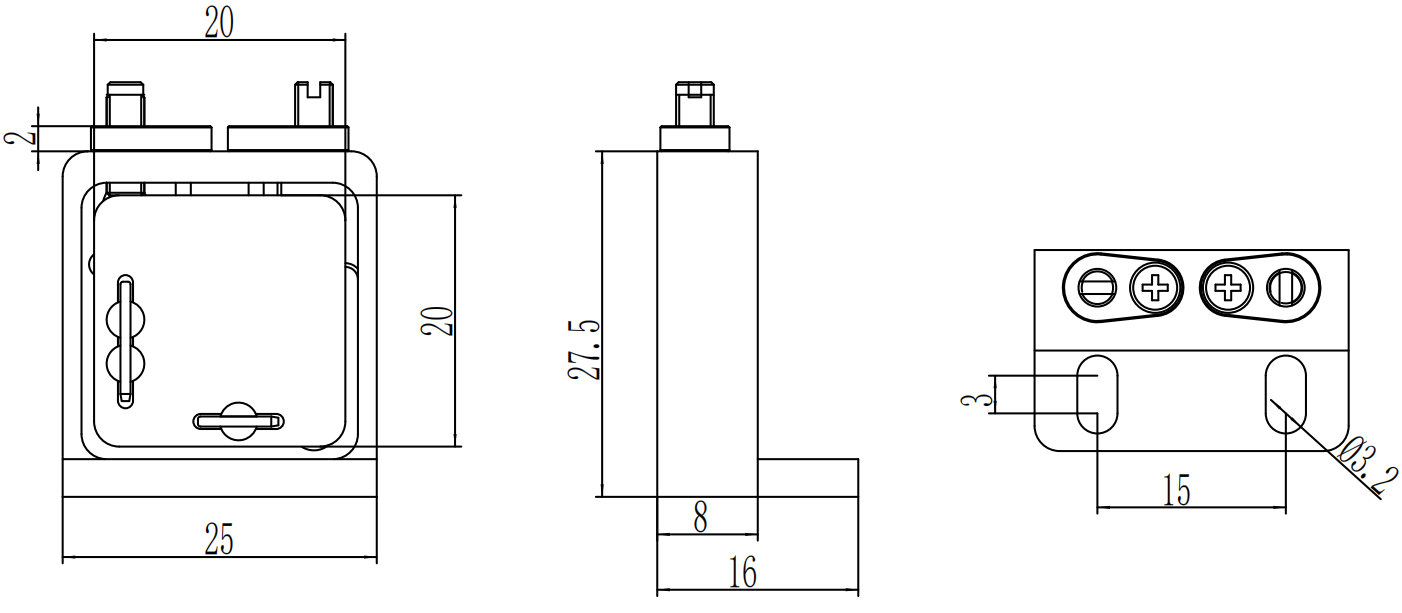

VL-BSM-T72	20x20 mm Platform	1-Axis Translation	Top screw adjustment	Stainless steel, ultra-thin space-saving
VL-BSM-ORT-38	12.7 - 38.1 mm	Orthogonal Adjustment	Rigid ball and module	Lateral drive, clear optical path, with lock

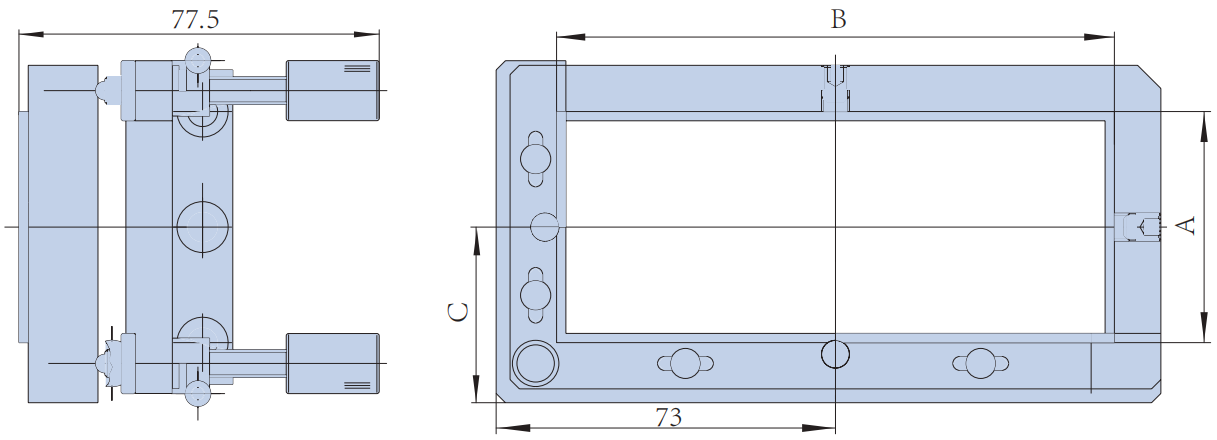

VL-BSM-REC-50	120 × 50 mm Window	Tip/Tilt	M6x0.25, Disc Spring	Rectangular frame, for large/combined optics
VL-BSM-REC-75	120 × 75 mm Window	Tip/Tilt	M6x0.25, Disc Spring	Rectangular frame, for large/combined optics
VL-BSM-REC-90	120 × 90 mm Window	Tip/Tilt	M6x0.25, Disc Spring	Rectangular frame, for large/combined optics
