ExtProbe Stage
External / internal displacement mechanism, with high-precision adjustability + high stability + wide temperature range coverage
- High-precision probe adjustment and signal transmission
- Highly stable temperature control and wide scene adaptation
- Vacuum environment and optical compatibility design
Overview
Product Introduction of ExtProbe Stage:

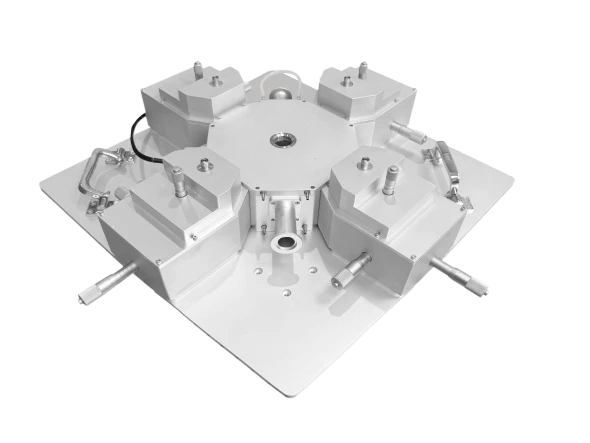

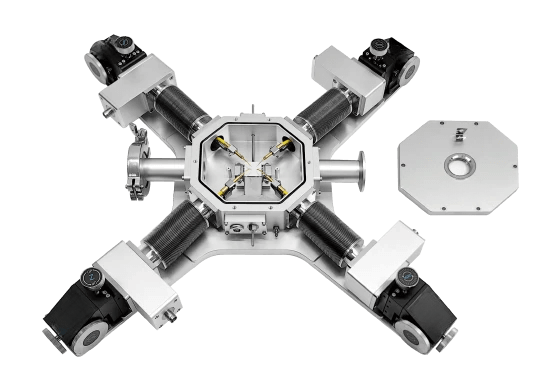

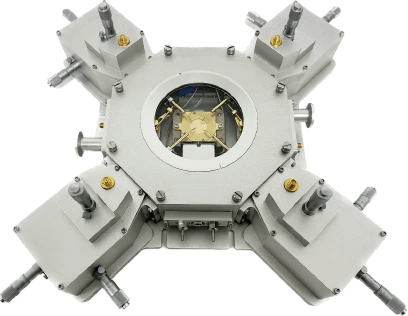

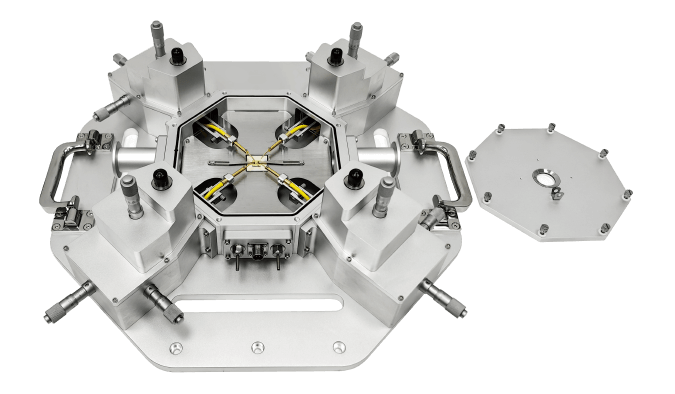

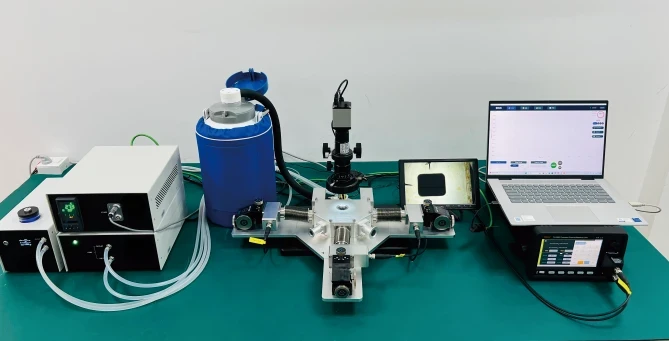

Designed specifically for variable-temperature in-situ electrical testing, it comes standard with a vacuum chamber (customizable atmosphere chamber) and JGS2 quartz glass windows. It supports reflected light paths and photoelectric synchronous testing, with a temperature stability of ±0.1℃. Equipped with an XYZ-axis adjustable displacement mechanism (stroke ±6mm~±12.5mm), highly conductive probes (tungsten steel gold-plated / tungsten-rhenium coaxial), and triaxial BNC interfaces, it is compatible with instruments such as source meters and LCR bridges. It can cover a temperature range of -190℃~1000℃, meeting the needs of in-situ electrical testing in vacuum environments for semiconductors, two-dimensional materials, ceramics and other fields, and supports multi-language SDK custom integration.
Specifications
Application
Serivce & Support
Explore Series
Model
Sample Stage
XYZ Axis Stroke
Heating & Cooling Method
Temperature Range
Action
