VL Bio-Microscope Series

Scientific research / clinical cost-effective biological microscope

High-definition imaging, precise and efficient observation
Wide adaptability, outstanding cost performance

Overview

A choice for scientific research and clinical observation

The VL Bio-Microscope Series is a line of biological microscopes under Venuslab that covers multiple scenarios such as scientific research, teaching, and clinical applications. This series is equipped with high-quality optical components, featuring both high-definition imaging performance and flexible adaptability. Through graded model configurations, it meets the full range of needs from high-end scientific research analysis to basic-level routine observations.

Features of VL Bio-Microscope Series

Optical configuration grading, covering all-scenario needs
High-definition imaging with high observation accuracy
Some models support modular function upgrades
Easy to operate, suitable for different user groups
High cost performance, balancing performance and cost

Model Table

Model	Eyepiece Configuration	Core Objective Lens Type	Focusing Precision	Light Source Type	Stage Specification
VL2800	Wide-field WF10X (360° rotatable)	Infinity plan achromatic objective	2μm	Adjustable-brightness LED lamp	Double-layer mechanical (180×150mm)

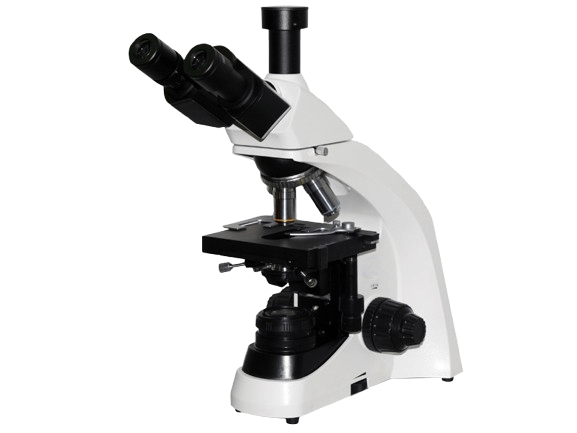

VL2600	10X plan wide-field eyepiece	Plan achromatic objective	0.002mm	High-brightness white LED (adjustable)	Double-layer mechanical (125×135mm)
VL2050	Wide-field WF10X (Φ20mm)	Plan achromatic PL series	2μm	12V 50W halogen lamp (adjustable)	Double-layer mechanical (160×140mm)

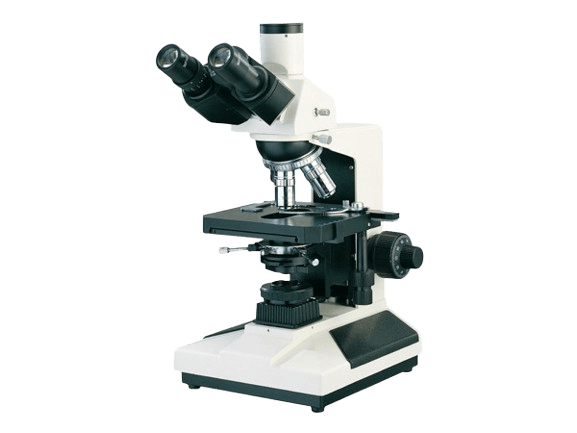

VL2000A	Wide-field WF10X (Φ20mm)	Plan achromatic PL series	2μm	6V 20W halogen lamp	Double-layer mechanical
VL2000B	Wide-field WF10X (Φ20mm)	Plan achromatic PL series (including 20X)	2μm	6V 20W halogen lamp	Double-layer mechanical

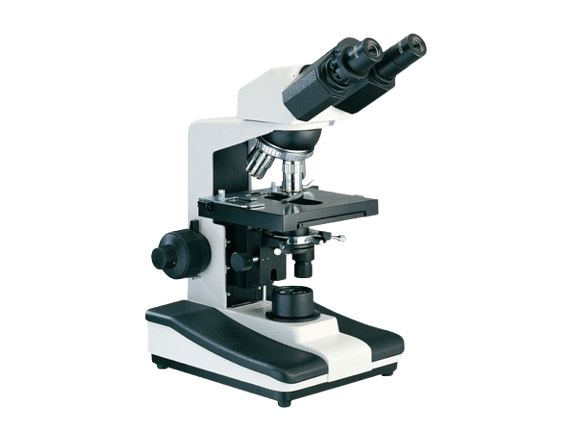

VL1800A	Wide-field WF10X (Φ18mm)	Achromatic objective	2μm	6V 20W halogen lamp	Double-layer mechanical
VL1800B	Wide-field WF10X (Φ18mm)	Semi-plan achromatic objective	2μm	6V 20W halogen lamp	Double-layer mechanical
VL1350	Wide-field WF10X (Φ18mm)	Achromatic objective	2μm	6V 20W halogen lamp	Double-layer mechanical (135×125mm)

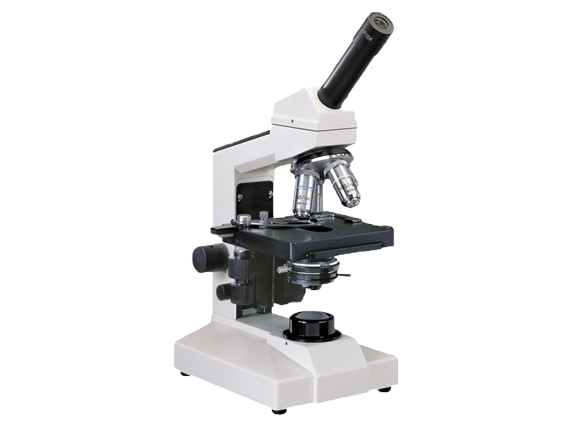

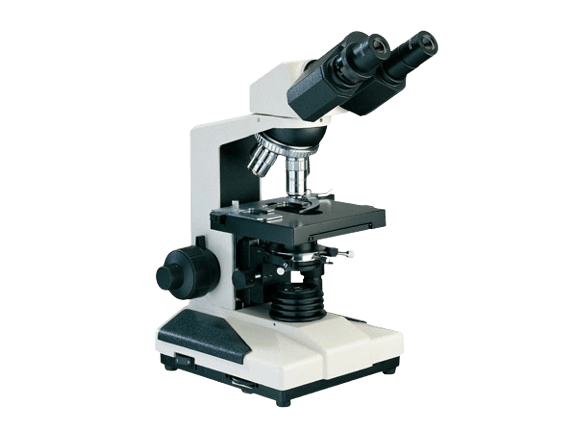

VL1200A	Wide-field WF10X (Φ18mm)	Achromatic objective	2μm	6V 20W halogen lamp	Double-layer mechanical (135×125mm)
VL1200B	Wide-field WF10X (Φ18mm)	Achromatic objective (with base armrest plate)	2μm	6V 20W halogen lamp	Double-layer mechanical (135×125mm)
VL1200C	Wide-field WF10X (Φ18mm)	Achromatic objective	2μm	6V 20W halogen lamp	Double-layer mechanical (135×125mm)
VL1000A	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	220V/110V incandescent lamp	Double-layer mechanical (125×115mm)
VL1000B	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	220V/110V incandescent lamp	Double-layer mechanical (125×115mm)
VL1000C	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	220V/110V incandescent lamp	Double-layer mechanical (125×115mm)

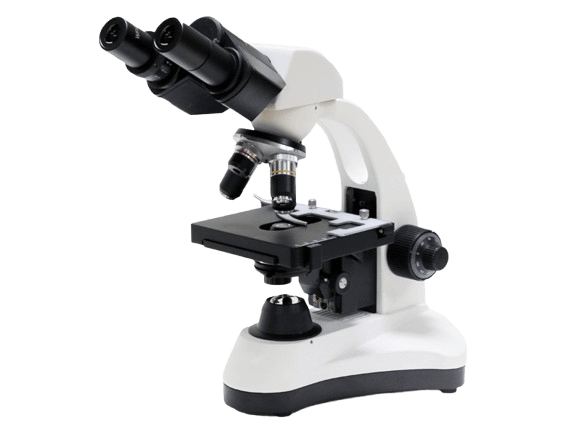

VL790-M	Plan WF10X (Φ18mm)	Achromatic objective (high numerical aperture)	-	LED illumination	Double-layer mechanical (125×115mm)
VL790-B	Plan WF10X (Φ18mm)	Achromatic objective (high numerical aperture)	-	LED illumination	Double-layer mechanical (125×115mm)
VL790-T	Plan WF10X (Φ18mm)	Achromatic objective (high numerical aperture)	-	LED illumination	Double-layer mechanical (125×115mm)
VL500A	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	220V/110V incandescent lamp	Fixed (120×120mm)
VL500B	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	220V/110V incandescent lamp	Fixed (120×120mm)

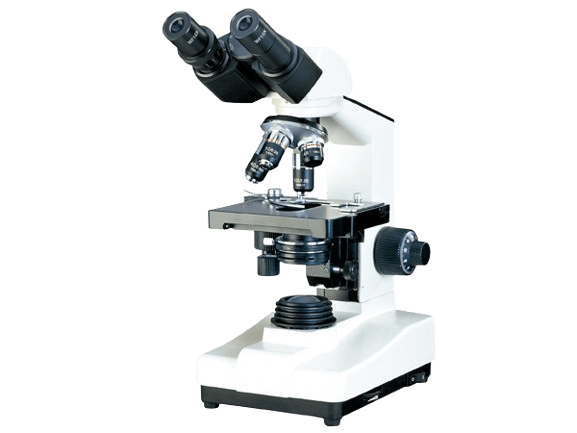

VL135A	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	12V 20W halogen lamp	Double-layer mechanical (125×115mm)
VL135B	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	12V 20W halogen lamp	Double-layer mechanical (125×115mm)
VL135C	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	12V 20W halogen lamp	Double-layer mechanical (125×115mm)
VL135D	Wide-field WF10X (Φ18mm)	Achromatic objective	4μm	12V 20W halogen lamp	Double-layer mechanical (125×115mm)
