Venuslab CAM-MT

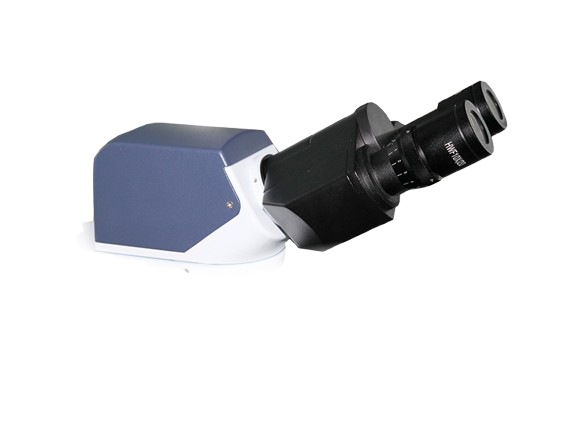

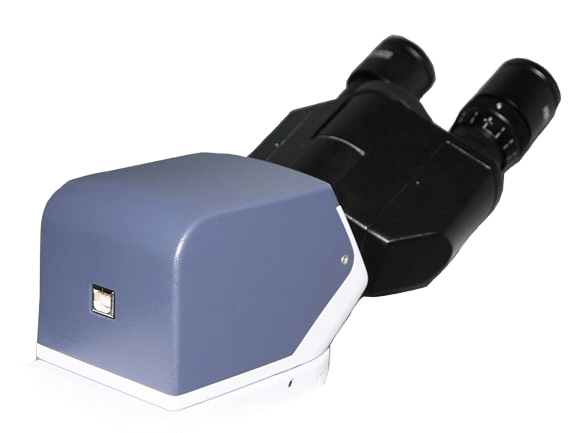

Product images of VL CAM-MT-A, VL CAM-MT-B, and VL CAM-MT-C

Scientific Research and Industrial Microphotography Stand

Multi-spec high-definition adaptation: 5.1M-12M sensor + multi-range resolution/frame rate, covering collection with different precisions
Flexible and easy to operate: adjustable eyepiece tube + multi-sampling mode, USB plug-and-play + exclusive software

Overview

Core components of the microscope camera mount

VenusLab CAM-MT is a professional camera mount accessory for the brand's optical equipment ecosystem. It is compatible with the brand's own microscopes and mainstream third-party optical devices, with "high-definition imaging + flexible adaptation" as its core, meeting the observation and image acquisition needs in scientific research and industrial scenarios.

Features of VenusLab CAM-MT

Covers 5.1M–12M multi-spec sensors
Adjustable multi-range resolutions and frame rates
Adjustable eyepiece tube angle
Supports multi-sampling modes
USB plug-and-play + exclusive software compatibility

Explore Series

	Model	Max Resolution/FPS	Pixel Size	Exposure Time Range	Sensor
	VL CAM-MT-A	2592×1944@7.0FPS	2.2×2.2μm	0.2ms-2000ms	5.1M/AR0521(C) (1/2.5")		VL CAM-MT-B	3584×2748@3.3FPS	1.55×1.55μm	0.4ms-2000ms	10M/IMX577(C) (1/2.3")		VL CAM-MT-C	3840×3040@3FPS	1.55×1.55μm	0.4ms-2000ms	12M/IMX577(C) (1.21")
