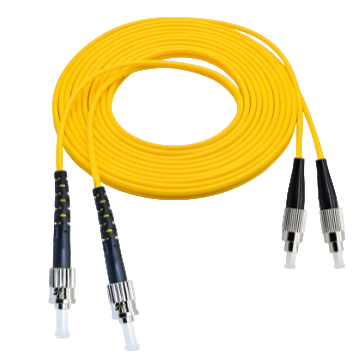

SMF Patch Cord
Precision optical connections for optocommunication devices
- Ultra-low loss transmission
- Wide-range environmental adaptability
- Flexible customization capability
- Precision structural design
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Specifcations
Introduction:
The single-mode patch cord series features excellent environmental stability, high return loss, and low insertion loss, making it an ideal choice for applications such as fiber lasers and test instruments.
The single-mode fiber optic patch cords are non-polarization-maintaining fiber optic patch cords, with a selectable wavelength range of 400 nm–1600 nm. Currently, they are available in three connector types: FC/PC, FC/APC, and SMA905, and the loose tube diameter of standard fiber optic patch cords is 3 mm.
Features:
- High return loss and low insertion loss
- Mostly used in fiber lasers and test instrument applications
- A variety of selectable wavelength ranges

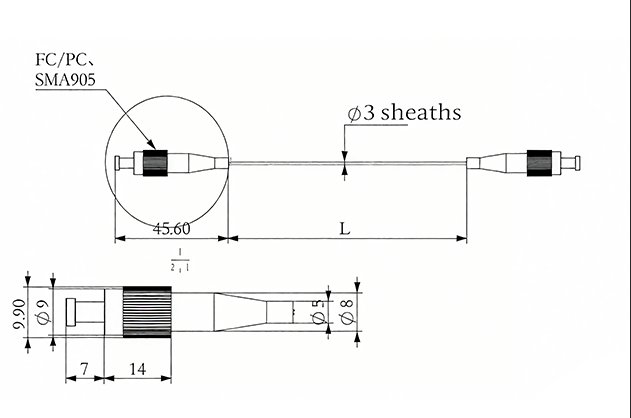

Dimension:
浏览全部型号
SMF Patch Cord
VLFL-SF-28E-100-FC/FC
VLFL-SF-28E-100-FC/FC is optimized for long-distance infrared optical communication (1300–1600nm).
SMF Patch Cord
VLFL-SF-405HP-100-FC/FC
VLFL-SF-405HP-100-FC/FC targets short-wavelength applications (400–550nm, including blue-violet and green light).
SMF Patch Cord
VLFL-SF-460HP-100-FC/FC
VLFL-SF-460HP-100-FC/FC operates in the visible spectrum (450–600nm, blue to yellow).
SMF Patch Cord
VLFL-SF-630HP-100-FC/FC
VLFL-SF-630HP-100-FC/FC focuses on red to near-infrared light (600–770nm, with 630nm as a key wavelength).
