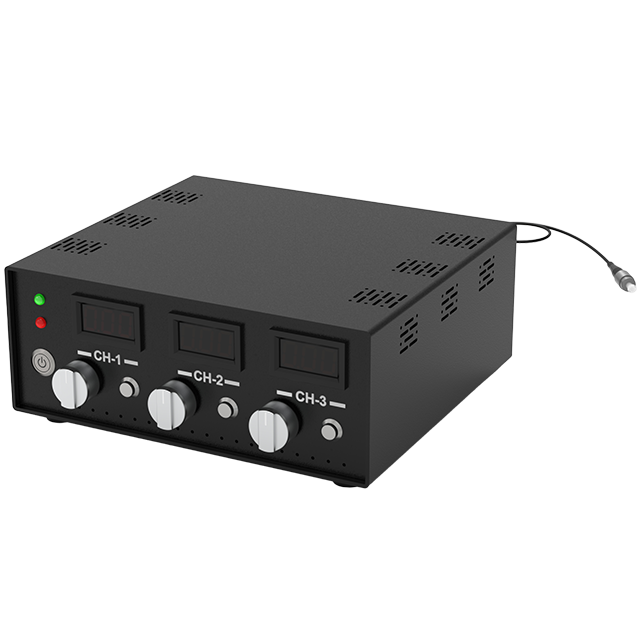

Three-wavelength multimode fiber white light laser system

https://source.venuslabtech.com/mall-prod/704d9085-865e-43ec-a6af-b275c477148d.png

A professional-grade white light laser system featuring "three-wavelength integration, high customization, and compact design"

Three-wavelength integrated design, adapting to multi-band coordination requirements
Fiber parameters are highly customizable, with strong scene adaptability
Software control + high stability, with convenient operation and reliable results
Compact integration + wide environmental adaptability, flexible deployment

输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。

Overview

Specifcations

Introduction:

It is a three-wavelength integrated white light fiber-coupled laser system developed by Venuslab. Through an integrated design, it integrates laser modules of three wavelength bands: 450nm (blue light), 520nm (green light), and 638nm (red light) into the same chassis, forming a complete laser solution capable of outputting composite white light. In terms of core performance, the single-channel output power of this product is ≥30mW, the center wavelength accuracy is controlled within ±3nm (450±3nm, 520±3nm, 638±3nm), and the spectral width is uniformly 3nm.

All adopt FP (Fabry-Perot) type lasers to ensure the stability and consistency of lasers in each wavelength band. In terms of fiber configuration, multimode fiber transmission is used. The fiber core diameter and numerical aperture (0.22/0.37/0.5) support customization, the fiber length is ≥1m, and the interface is compatible with industrial standard types such as FC/SMA905/SC/ST, which can flexibly adapt to connection requirements in different scenarios.
