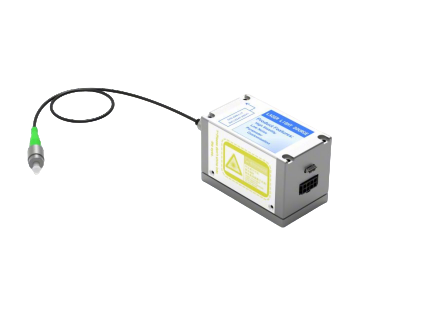

VLFL-LS High-Stability Laser Engine
High-performance General-purpose Laser Light Source Solution
- Ultra-high stability laser output
- Broad spectral coverage and customization capability
- Flexible modulation and integration characteristics
- Industrial-grade reliability assurance
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Specifcations
Introduction:
The VLFL-LS series is a high-performance laser module product family covering multi-wavelength bands. It includes 15 sub-models ranging from 405nm (deep ultraviolet, DUV) to 980nm (near-infrared, NIR), fully covering the key optical bands from ultraviolet to near-infrared. Adopting a modular design, the series features a standard housing dimension of only 70×40×45mm, achieving a balance between laboratory-grade precision and industrial-grade reliability through its compact structure.
As a general-purpose laser light source, this series supports three operating modes: continuous wave output, analog modulation, and digital modulation, which adapts to diverse application requirements from static spectral analysis to dynamic light control.
Features:
- Wide wavelength coverage and rich model options
- Balance between structural design, precision and reliability
- Flexible working mode adaptability
- Ultra-high stability laser output

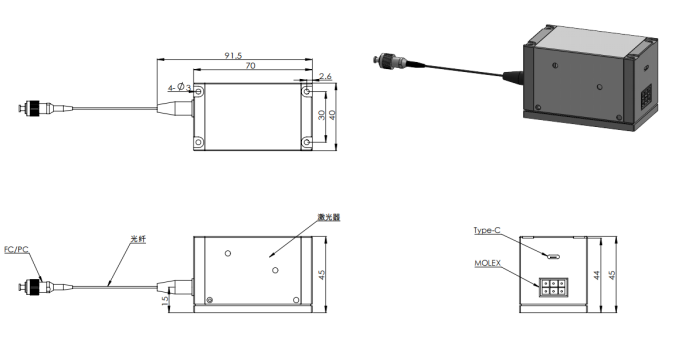

Dimension:
浏览全部型号
VLFL-LS High-Stability Laser Engine
VLFL-LS-405
Wavelength 405nm (deep ultraviolet), power 80mW, fiber core diameter 3μm, and the connector supports optional FC/PC, FC/APC, SMA905.
VLFL-LS High-Stability Laser Engine
VLFL-LS-450
波长 450nm（蓝光）、功率 25mW、光纤芯径 3.5μm，支持三种连接头可选.
VLFL-LS High-Stability Laser Engine
VLFL-LS-488
波长 488nm（可见光 - 蓝绿光）、功率 25mW、光纤芯径 3.5μm，支持三种连接头。
VLFL-LS High-Stability Laser Engine
VLFL-LS-505
波长 505nm（蓝绿光）、功率 35mW、光纤芯径 3.5μm，连接头可选 FC/PC、FC/APC、SMA905。
VLFL-LS High-Stability Laser Engine
VLFL-LS-520
波长 520nm（绿光）、功率 40mW、光纤芯径 3.5μm，支持三种连接头。
VLFL-LS High-Stability Laser Engine
VLFL-LS-638
波长 638nm（红光）、功率 100mW、光纤芯径 4μm，连接头可选 FC/PC、FC/APC、SMA905。
VLFL-LS High-Stability Laser Engine
VLFL-LS-685
波长 685nm（红光）、功率 20mW、光纤芯径 4μm，连接头可选 FC/PC、FC/APC、SMA905。
VLFL-LS High-Stability Laser Engine
VLFL-LS-808
波长 808nm（近红外）、功率 40mW、光纤芯径 5μm，连接头可选 FC/PC、FC/APC、SMA905.
VLFL-LS High-Stability Laser Engine
VLFL-LS-850
850nm 近红外，70mW，5μm 芯径，FC/PC/FC/APC/SMA905 可选。
VLFL-LS High-Stability Laser Engine
VLFL-LS-940
940nm 近红外，70mW，5μm 芯径，FC/PC/FC/APC/SMA905 可选。
