VLFL-SF-N Split-Type Single-Mode Laser Module
Core light source components in the field of medium and high-precision optical inspection and measurement
- High precision, low interference
- Separate and flexible
- Long lifespan and wide adaptability
输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。
Overview
Specifcations
Introduction:
The VLFL-SF-N series covers multiple wavelengths (such as 638nm, etc.) and different power models. Its core feature is "physical separation of the laser body and the driver power supply", making it suitable for medium and high-precision optical application scenarios such as fluorescence spectroscopy, photoelectric detection, and optical measurement. The entire series shares the technical foundation of "single-mode fiber output + high beam quality + long service life".

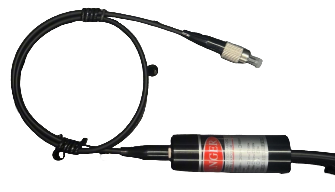

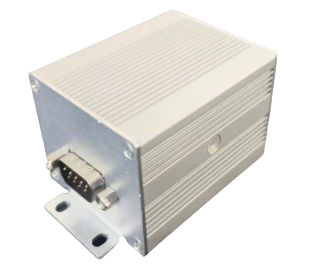

The laser body has a compact size (for example, a typical model is only 60mm×∅20mm), and the driver power supply is independent (83mm×50mm×40mm). It supports optional FC-PC/FC-APC fiber interfaces, with output power covering the low-to-medium range (typical value 20mW), narrow spectral linewidth (1-2nm), operating temperature of 0-40℃, and service life of up to 10,000 hours. It has the dual advantages of "miniaturized integration" and "precision optical output".
Features:
- Excellent beam quality
- Precise wavelength and narrow linewidth
- Low noise and high stability
- Separate module layout
- Strong optical fiber compatibility
Dimension:
浏览全部型号
VLFL-SF-N Split-Type Single-Mode Laser Module
VLFL-638-SF-N
Central wavelength: 638 ± 5 nm (orange-red light band).
