Introduction:

Taking semiconductor laser tubes (laser diodes, LD) as the core, the VL Fiber-Coupled Laser Series adopts the TO packaging form. This packaging is usually used for low-power LD lasers, featuring a compact structure and high stability, which can provide a solid foundation for the stable operation of the lasers.

In terms of optical output optimization, all products in the series adopt an integrated fiber-coupled output form, combined with a conformal gradient-index lens. This design not only ensures high efficiency of LD laser coupling into the optical fiber, but also enables the LD laser after fiber output to conform to the Gaussian spot intensity distribution to the greatest extent, effectively optimizing the output spot quality and providing a high-quality laser light source for subsequent applications.

In terms of technical parameters, this series of products covers a wide wavelength range, from 400nm to 1064nm, which can meet the needs of different fields for lasers with specific wavelengths. The continuous output power also has a large range, from 10mW to 3500mW, and can be flexibly selected according to the power requirements of actual application scenarios.

Features:

• The entire series adopts TO packaging
• The entire series adopts an integrated fiber-coupled output form
• The entire series uses multimode optical fibers, suitable for multi-beam transmission scenarios
• Pigtail ends support a variety of common fiber optic connectors

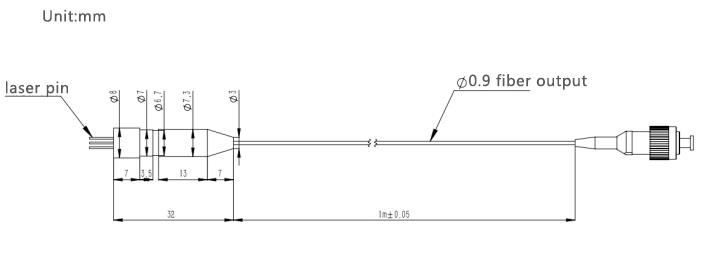

Dimensions:
