SFS Plano-Convex Lens

Overview

Premium UV fused silica lenses designed for demanding laser and imaging applications.

VenusLab Fused Silica (SFS) Plano-Convex Lenses are manufactured from high-purity UV Fused Silica (JGS1) or Corning 7980 substrates.

These lenses offer superior transmission from the ultraviolet (UV) to the near-infrared (NIR) range. Featuring a surface quality of 40-20 and exceptional thermal stability, they are the ideal solution for high-power laser collimation, UV focusing, and applications requiring high resistance to thermal shock and scratches.

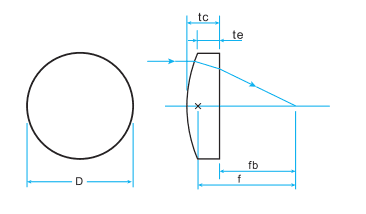

Dimension:

Qualification

SFS Plano-Convex Lens Specifications

Technical Specifications	Parameters
Material	UV Fused Silica (JGS1)
Material	(Note: Items marked with * are Corning 7980)
Shape	Plano-Convex
Design Wavelength	546.1nm (n=1.460)
Surface Quality	40-20 Scratch-Dig
Surface Power	1-5 fringes
Irregularity	0.2-1 fringes
Clear Aperture	>90%
Centration	≤3 arc min
Protective Chamfer	0.25mm×45∘
Diameter Tolerance	+0.0 / -0.1 mm
Center Thickness Tolerance	±0.1 mm
Focal Length Tolerance	±1%

Selection Chart

SFS Plano-Convex Lens Specification Table

Model	D (mm)	f (mm)	tc (mm)	te (mm)	fb (mm)	r (mm)	Centration
VLQLP10-15	10	15	4.1	2	12.2	6.9	≤ 1'
VLQLP10-25	10	25	3.1	2	22.8	11.5	≤ 1'
VLQLP15-25	15	25	4.8	2	21.7	11.5	≤ 1'
VLQLP15-30	15	30	4.2	2	27.1	13.8	≤ 1'
VLQLP15-50	15	50	3.3	2	47.8	23	≤ 1'
VLQLP25-30	25	30	10	2	23.2	13.8	≤ 1'
VLQLP25-35	25	35	8	2	29.6	16.1	≤ 1'
VLQLP25-50	25	50	5.7	2	46.1	23	≤ 1'
VLQLP25-75	25	75	4.3	2	72.05	34.5	≤ 1'
VLQLP25-100	25	100	3.7	2	97.4	46	≤ 1'
VLQLP25-150	25	150	3.1	2	147.8	69	≤ 1'
VLQLP25-200	25	200	2.9	2	198	92	≤ 1'
VLQLP25-250	25	250	2.7	2	248.2	115	≤ 1'
VLQLP25-300	25	300	2.5	2	298.29	138	≤ 1'
VLQLP25.4-30	25.4	30	10	1.6	23.2	13.8	≤ 1'
VLQLP25.4-35	25.4	35	8	1.8	29.5	16.1	≤ 1'
VLQLP25.4-40	25.4	40	6.9	1.8	35.3	18.4	≤ 1'
VLQLP25.4-50	25.4	50	5.7	1.9	46.1	23	≤ 1'
VLQLP25.4-60	25.4	60	5	1.9	56.6	27.6	≤ 1'
VLQLP25.4-75	25.4	75	4.35	1.9	72.02	34.5	≤ 1'
VLQLP25.4-80	25.4	80	4.2	1.9	77.1	36.8	≤ 1'
VLQLP25.4-100	25.4	100	3.7	1.9	97.5	46	≤ 1'
VLQLP25.4-125	25.4	125	3.4	1.9	122.7	57.5	≤ 1'
VLQLP25.4-150	25.4	150	3.1	1.9	147.9	69	≤ 1'
VLQLP25.4-175	25.4	175	3	1.9	172.9	80.5	≤ 1'
VLQLP25.4-200	25.4	200	2.9	1.9	198	92	≤ 1'
VLQLP25.4-250	25.4	250	2.7	1.9	248.2	115	≤ 1'
VLQLP25.4-300	25.4	300	2.5	1.9	298.3	138	≤ 1'
VLQLP25.4-400	25.4	400	2.3	1.9	398.4	184	≤ 1'
VLQLP25.4-450*	25.4	450	2.3	1.9	448.4	202.5	≤ 1'
VLQLP25.4-500	25.4	500	2.3	1.9	498.4	230	≤ 1'
VLQLP25.4-550*	25.4	550	2.23	1.9	548.5	247.5	≤ 1'
VLQLP25.4-600	25.4	600	2.2	2	598.49	276	≤ 1'
VLQLP25.4-750	25.4	750	2.1	1.9	748.56	345	≤ 1'
VLQLP25.4-1000	25.4	1000	2.1	1.9	998.6	460	≤ 1'
VLQLP25.4-1200*	25.4	1200	2.05	1.9	1198.6	540	≤ 1'
VLQLP25.4-1500*	25.4	1500	2.02	1.9	1498.6	675	≤ 1'
VLQLP25.4-1800*	25.4	1800	2	1.9	1798.6	810	≤ 1'
VLQLP25.4-R500	25.4	1100	2.06	1.9	1098.6	500	≤ 1'
VLQLP25.4-R1000	25.4	2200	1.98	1.9	2198.6	1000	≤ 1'
VLQLP25.4-R1500	25.4	3300	1.954	1.9	3298.7	1500	≤ 1'
VLQLP50-80	50	80	11.4	3	72.19	36.8	≤ 1'
VLQLP50-600	50	600	4.1	3	597.19	276	≤ 1'
VLQLP50.8-60	50.8	60	19.8	3	46.42	27.6	≤ 1'
VLQLP50.8-75	50.8	75	14.2	3	65.26	34.5	≤ 1'
VLQLP50.8-80	50.8	80	12.8	2.6	71.2	36.8	≤ 1'
VLQLP50.8-100	50.8	100	10.4	2.8	92.9	46	≤ 1'
VLQLP50.8-125	50.8	125	8.8	3	118.97	57.5	≤ 1'
VLQLP50.8-150	50.8	150	7.7	2.9	144.7	69	≤ 1'
VLQLP50.8-200	50.8	200	6.5	2.9	195.6	92	≤ 1'
VLQLP50.8-250	50.8	250	5.7	2.9	246.1	115	≤ 1'
VLQLP50.8-300	50.8	300	5.3	2.9	296.4	138	≤ 1'
VLQLP50.8-350	50.8	350	4.92	2.9	346.6	161	≤ 1'
VLQLP50.8-400	50.8	400	4.7	2.9	396.8	184	≤ 1'
VLQLP50.8-450	50.8	450	4.5	3	446.92	207	≤ 1'
VLQLP50.8-500	50.8	500	4.4	3	497	230	≤ 1'
VLQLP50.8-600*	50.8	600	4.17	3	597.1	270	≤ 1'
VLQLP50.8-750	50.8	750	3.9	3	747.33	345	≤ 1'
VLQLP50.8-800*	50.8	800	3.88	3	797.3	360	≤ 1'
VLQLP50.8-1000	50.8	1000	3.7	3	997.5	460	≤ 1'
VLQLP50.8-2000	50.8	2000	3.35	3	1997.7	916.8	≤ 1'
