VLAFDM-SC412 Microscope Cameras

The VLAFDM-SC412 Continuous Electric Zoom Auto-Focus Digital Microscope Camera is the latest product developed by Venuslab. It integrates an HDMI camera, a continuous electric zoom auto-focus lens, and integrated lighting into one unit, and is compatible with various stands or arms. Optical zoom at different magnifications is achieved through electric zoom, and the focusing modes support both auto focus (AF) and manual focus.

It adopts a high-performance SONY CMOS sensor, and the camera features a built-in ARM core, allowing direct connection to an HDMI display.

The camera comes with XFCamView software, which includes a Camera Control Panel, a Measurement Toolbar, a Comprehensive Camera Control Toolbar, and an Auto Focus Control Panel. All parameters and operations of the camera can be controlled directly via a USB mouse.

Captured images and videos by the camera can be stored on an SD card for on-site analysis and subsequent research. The product is widely used in fields such as industrial inspection, medical observation, teaching and scientific research, and automation systems.

Overview

Introduction:

VLAFDM-SC412 is an integrated digital microscope system that combines an electric continuous zoom lens, an automatic focusing module, a high-sensitivity CMOS camera, and an intelligent lighting system. It is specifically designed for scenarios such as industrial inspection, medical observation, teaching, and scientific research.

Its core technical architecture includes:

Electric continuous zoom lens
Automatic focusing system
4K imaging module
Low noise

As part of VenusLab's selected imaging product portfolio, AFDM412 features both industrial-grade and scientific research-grade performance as well as ultra-high cost-effectiveness, enabling researchers, engineers, and educators to achieve more precise adaptation to scenarios.

Features:

The VLAFDM-SC412 comes with H4KPA HDMI camera, EMZO-18XA-250 lens and DRL-5076A-NPC light source(Optional):

5 groups 16 elements EMZO with 0.0218~0.392X, 18 zoom ratio, supports auto and manual focus
250mm standard working distance with 205~255mm depth of field
Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio
4K HDMI/USB/ETH/WiFi multiple video outputs
4K/1080P auto switching according to monitor resolution
SD card/USB flash drive for captured image and video storage, support local preview and playback
Built-in mouse control software XFCamView, all functions can be realized with USB mouse

Dimension：

Specifcations

Specification of VLAFDM-SC412
White Balance	Auto White Balance
Color Technique	Ultra-Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture or Movie
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)/ToupView OSx(Mac OS X)/ToupLite Linux/ToupLite
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	Ethernet Port: RJ45 Ethernet Port
	Display:19” or Larger
	CD-ROM

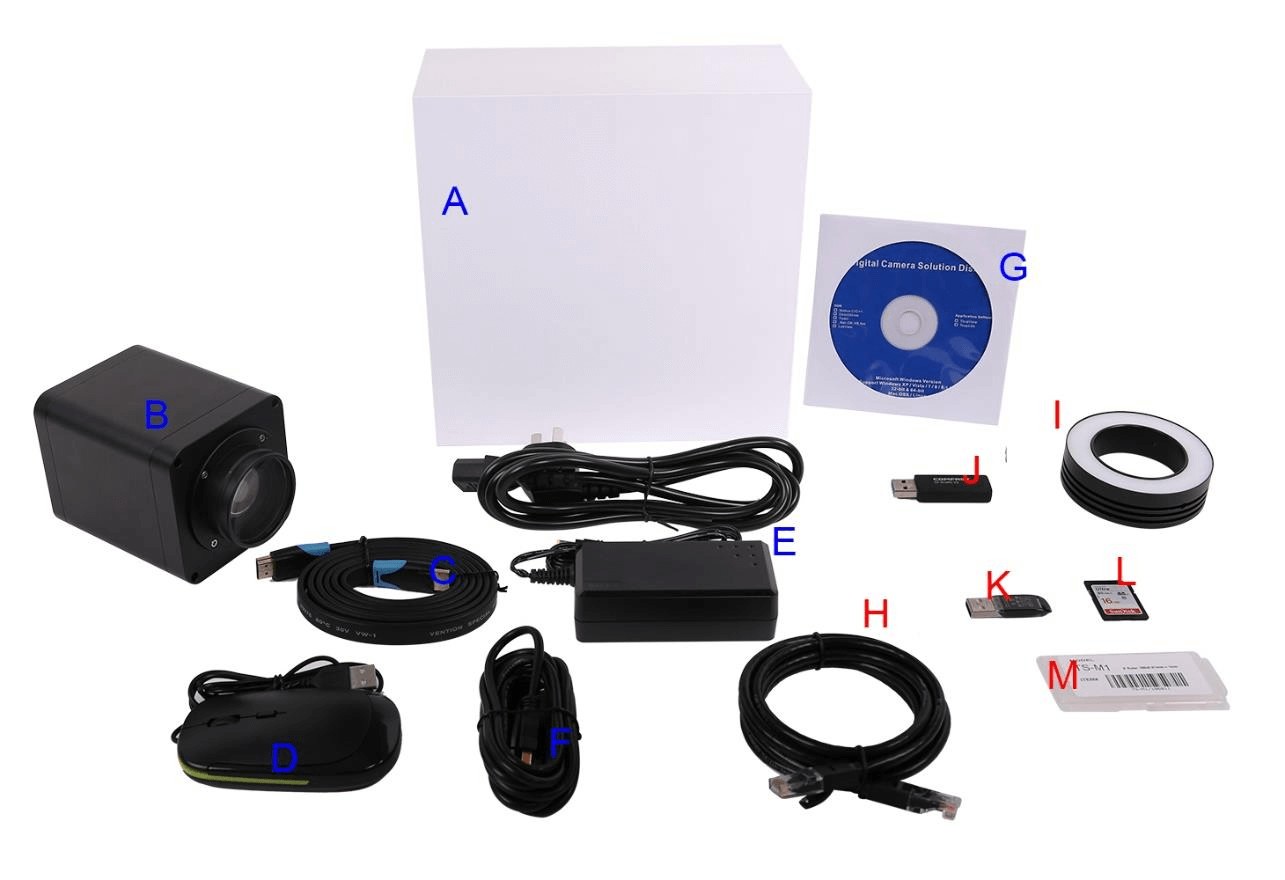

Packing List

Standard Packing List
A	Gift box: L:220cm W:220cm H:110cm (1pcs, 2.0kg/box)
B	AFDM412
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A	American Standard: Model: HKA03612030-7K : UL/CE/FCC(With American Standard AC Power Cable) European Standard: Model: HKA03612030-7K : UL/CE/FCC(With European Standard AC Power Cable) EMI Standard: FCC Part 15 Subpart B EMS Standard: EN61000-4-2,3,4,5,6
D	USB Mouse
E	HDMI Cable
F	USB2.0 A male to A male gold-plated connectors cable /2.0m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H	Ethernet cable
I	LED Ring Light(DRL-5076A-NPC)
J	USB flash drive
K	USB WLAN adapter
L	SD card(16G)
M	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
