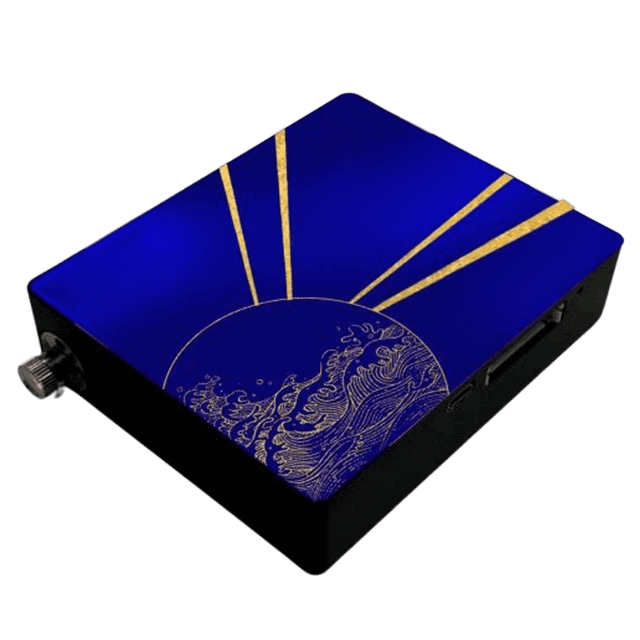

Sharp 2K Spectrometer

Industrial-grade high-cost-performance miniature fiber optic spectrometer

Excellent optical performance, accurate and reliable measurement
Strong adaptability and high flexibility
Rich functional interfaces, supporting secondary development
Industrial-grade durability and compact design

输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。

Overview

Specifcations

Interface Definition

Introduction:

Sharp 2K Spectrometer is a miniature spectrometer with a compact structural design and configurable spectral range. It boasts high resolution, with the optimal resolution reaching up to 0.07 nm; low stray light, approximately 0.1%; and minimal temperature drift, with a wavelength temperature drift of about 0.1 pixel/℃.

It is suitable for various industrial on-site measurement scenarios, including laser measurement, plasma emission spectroscopy measurement, color measurement, absorbance measurement, and Raman measurement. It is a cost-effective industrial-grade fiber optic spectrometer.

Features:

Stray Light ~0.1%;

With high resolution, up to a maximum of 0.07 nm;

Wavelength temperature drift ~0.1 pixel/℃;

Compatible with Venuslab pin-type multi-core densely arranged bundled optical fibers, with consistency of fiber insertion/extraction strength ≤ 7%;

Strong ultraviolet (UV) spectral response;

CCD quantized background noise ≤ 30 RMS (at minimum integration time);

Equipped with multiple communication interfaces including USB and serial port, a 24PIN interaction interface, and dedicated DAC and ADC, which enables enablement, intensity control and power feedback of matching light sources.

Dimension:
