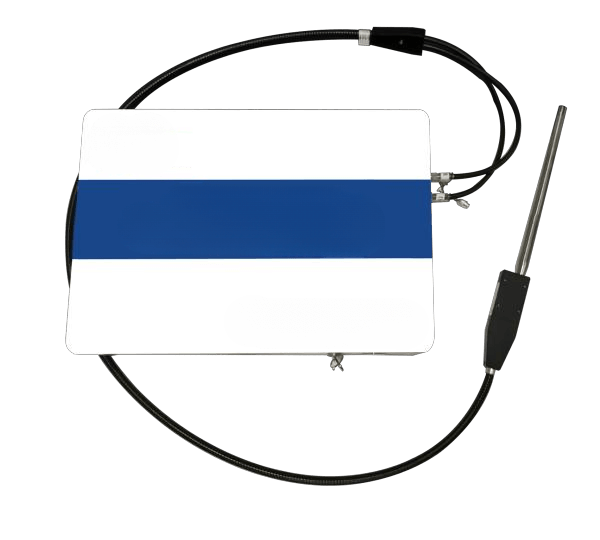

RamanOnline IoT Spectrometer

Molecular-Level Process Arbiter Under Extreme Operating Conditions

Analytical Reliability Under Extreme Environments
Real-Time Multi-Dimensional Process Analysis Capability
Full-Process Compliance and Digital Integration
Flexible Adaptation to Multi-Scenario Applications

输入您的电子邮件地址可免费访问、接收产品手册或享受特别折扣。

Overview

Specifcations

Introduction:

It is an online molecular spectroscopy analysis equipment designed specifically for extreme industrial environments. Its core function is to capture the molecular vibration fingerprint spectra of substances in real time through the Raman scattering effect, thereby realizing accurate monitoring of chemical components, structural changes and reaction progress during the production process.

Its technical characteristics can be summarized as "extreme environment adaptability + real-time molecular-level insight"

Features:

Excellent performance: It has advantages such as high resolution and high sensitivity.
Long-distance testing: It can be equipped with composite optical cables with a length of 1 - 100m to adapt to complex on-site detection scenarios.
Powerful software: It is compatible with multiple operating systems and can perform data collection, analysis, comparison, and other tasks.
Multi-channel detection: The Raman analyzer can support single-channel and multi-channel analysis and detection.
High and low temperature resistance: The probe is suitable for -60 °C ~ +200 °C and is applicable to harsh working conditions of low and high temperatures.
High pressure resistance: The probe can withstand a high pressure of 15 MPa and can monitor high-pressure reactions.
Corrosion resistance: The probe is suitable for highly corrosive systems such as sulfuric acid, hydrochloric acid, nitric acid, and hydrogen fluoride.
