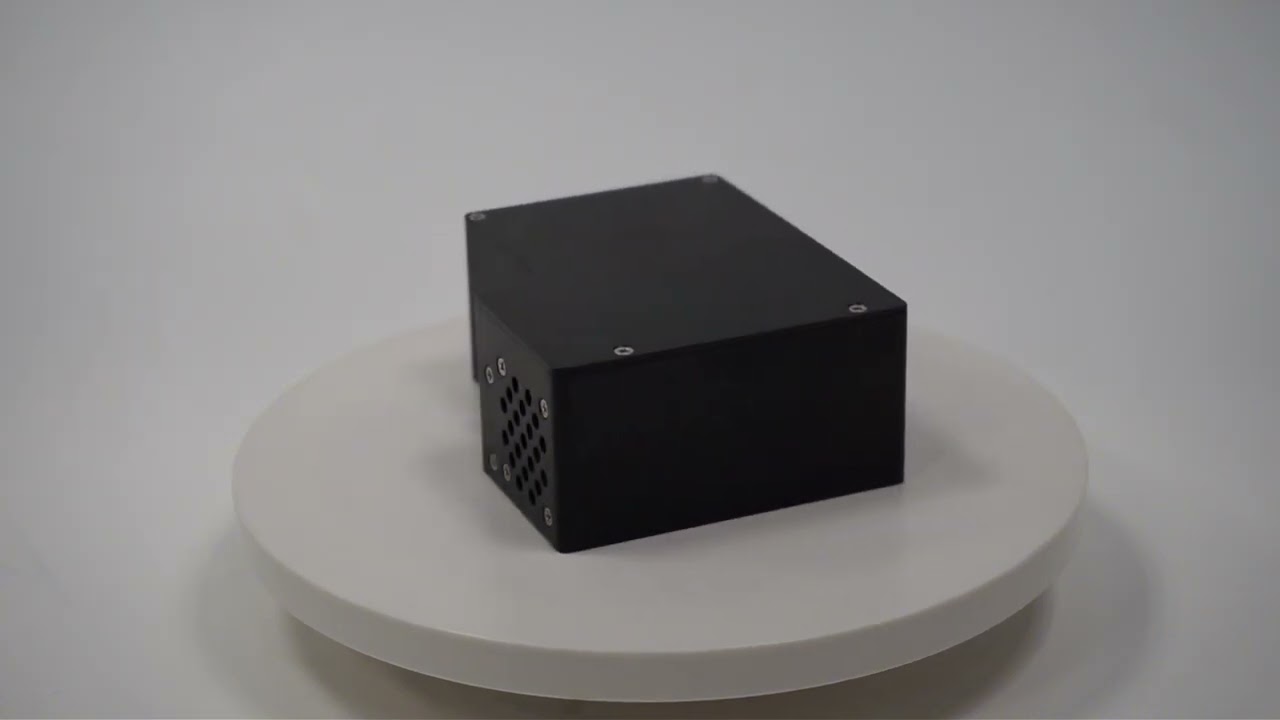

SensUVIS3 Spectrometer

Research-grade "pocket-sized" full-band spectrometer

4096-pixel CMOS, 3.5 nm resolution, signal-to-noise ratio 1600:1
89×64×31 mm, multi-interface plug-and-play control, 16-channel parallel

Overview

A research-grade full-band eye in your pocket

SensUVIS3 packs laboratory precision covering 200-1100 nm into an 89×64×31 mm body: 4096-pixel CMOS, 3.5 nm resolution, 1600:1 signal-to-noise ratio, plug-and-play control via USB/RS-485/Modbus, 5 ns external triggering, support for 16 units in parallel, and one-click spectral output on-site or on the production line.

Features of the SensUVIS3 Spectrometer

Full wavelength range 200-1100 nm, 3.5 nm resolution
4096-pixel CMOS, signal-to-noise ratio 1600:1
89 g mini body, plug-and-play control
5 ns external trigger, 16 units in parallel

Specifications

Parameters of the SensUVIS3 Spectrometer

Model	VL-UVVIS-4K-200-1100
Wavelength Range	200 – 1100 nm (customizable)
Optical Resolution	≤3.5 nm (200 µm fiber)
Detector	4096-pixel CMOS, linearity >99.8 %
S/N Ratio	1600:1 (high-speed average)
Dynamic Range	3000:1
Dark Noise	<20 counts (1 ms integration)
A/D Converter	16 bit, 1 MHz
Integration Time	0.06 ms – 65 s
Entrance Slit	25 µm (50/100/200 µm optional)
Grating	600 lp/mm, 12.5×12.5 mm
Data Interface	USB 480 Mbps / TTL / RS232 / RS485
External Trigger	5 ns latency, 5 ns – 65 s programmable
Size / Weight	89 × 64 × 31 mm / <200 g
