VL-MGS Angle Size

Overview

Precision Orbit: The Art of Rotation Around a Virtual Point

"The Venus Orbit™ series features a 'Virtual Point' rotation axis, allowing optics to tilt around their true center rather than the base. Constructed from high-rigidity aluminum or steel, it ensures smooth, backlash-free motion—ideal for demanding single-axis or stacked 2D alignment."

Applications

Crystal Phase Matching: Search for the optimal phase-matching angle of nonlinear crystals (such as BBO/LBO).
Fiber Alignment: Precision angular coupling (leveling) of fiber arrays or waveguide chips.
Diffractometry: Adjustment of sample posture in X-ray diffraction or spectroscopy experiments.
Beam Steering: Precision pointing control of laser beams and fine adjustment of reflectors.

Technical Specifications

Venus Arc™ Motorized Goniometers - Full English Specifications

Sub-Series	VenusLab SKU	Product Name	Angle Range	Table Size	Drive Mechanism	Key Features

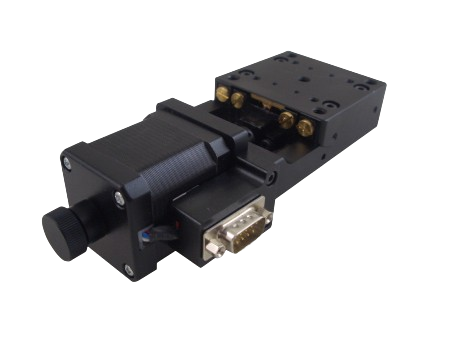

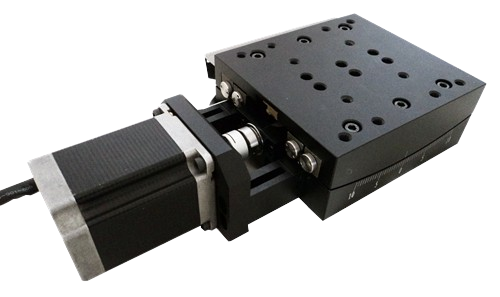

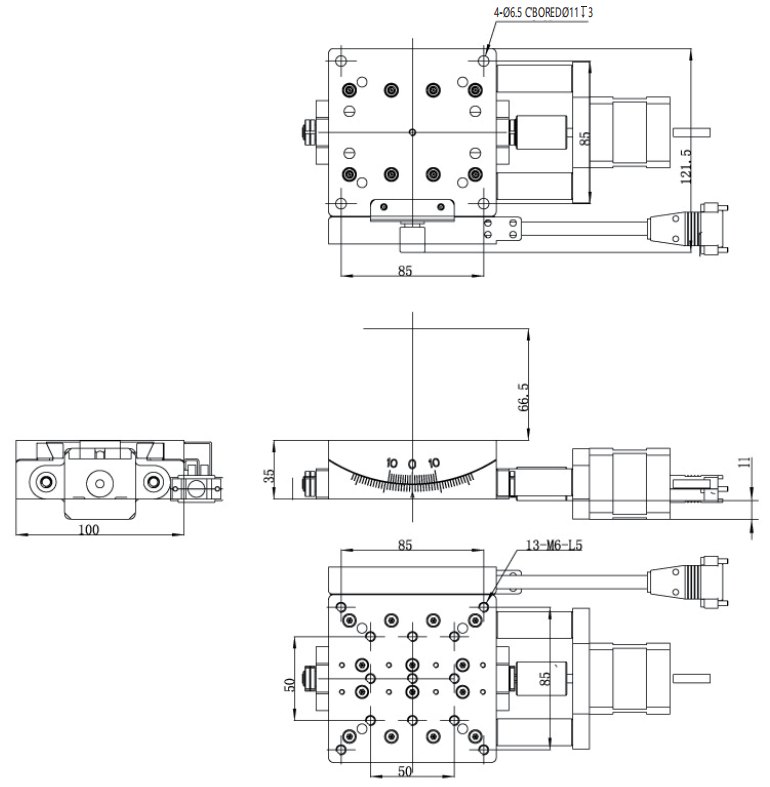

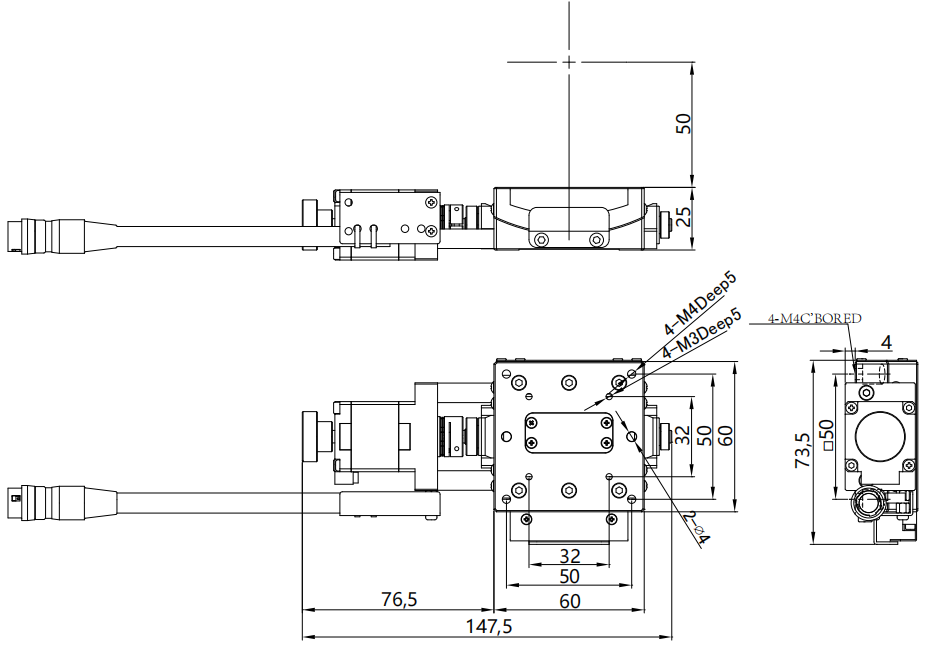

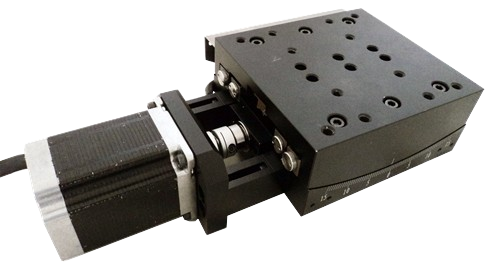

Standard Series	VL-MGS-10-60	Venus Arc™ Standard Goniometer	±10°	60 × 60 mm	Worm Gear	Self-Locking, Standard

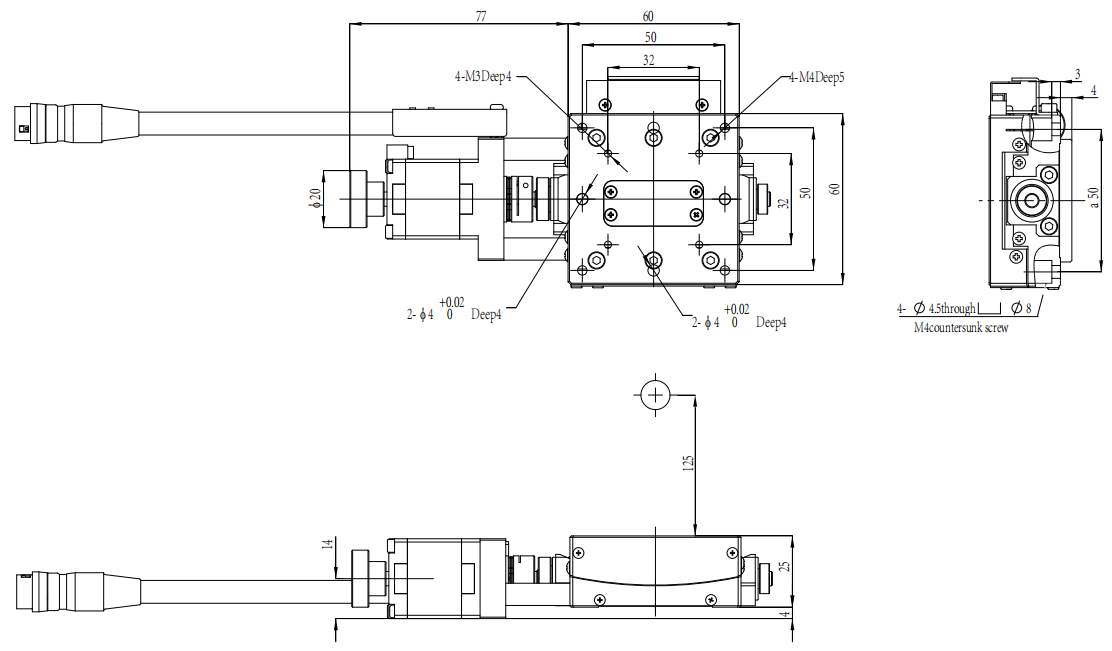

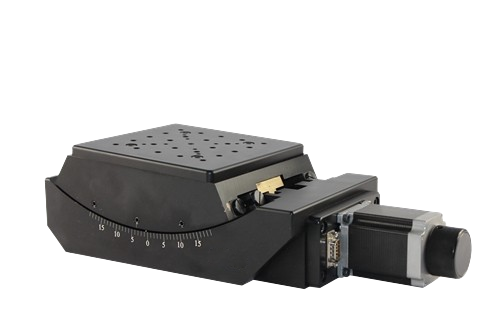

Standard Series	VL-MGS-15-60	Venus Arc™ Standard Goniometer	±15°	60 × 60 mm	Worm Gear	Self-Locking, Standard

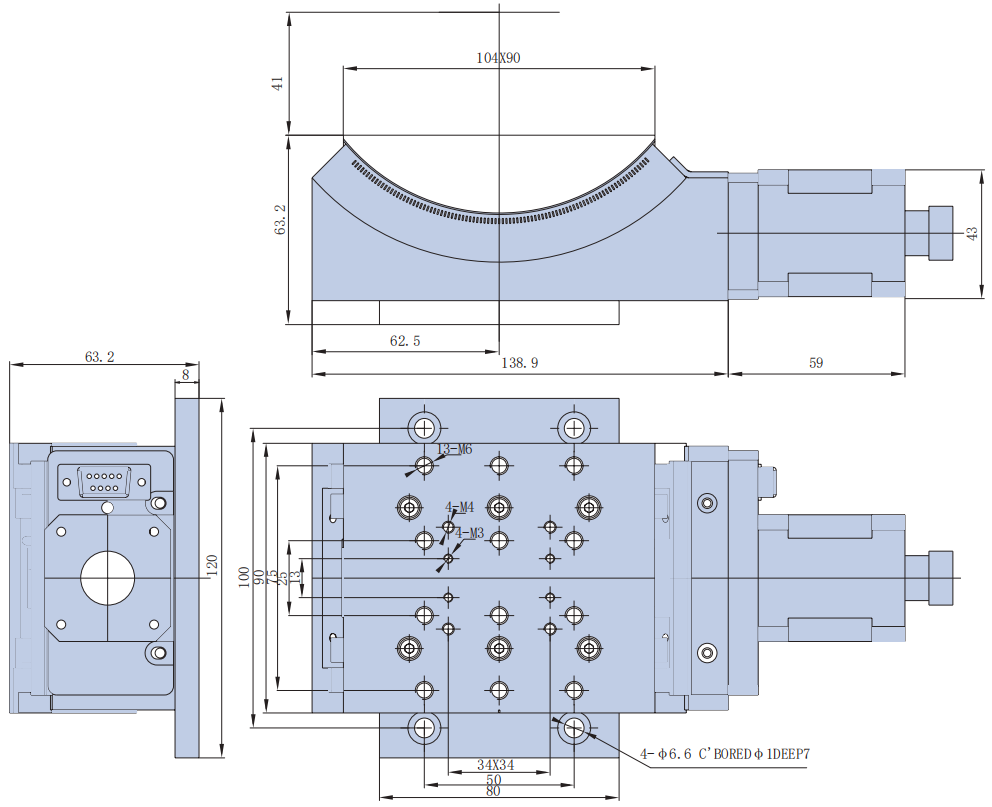

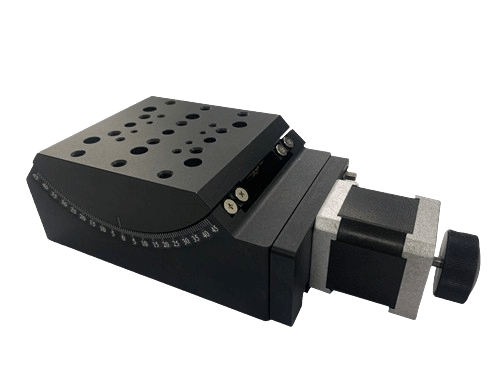

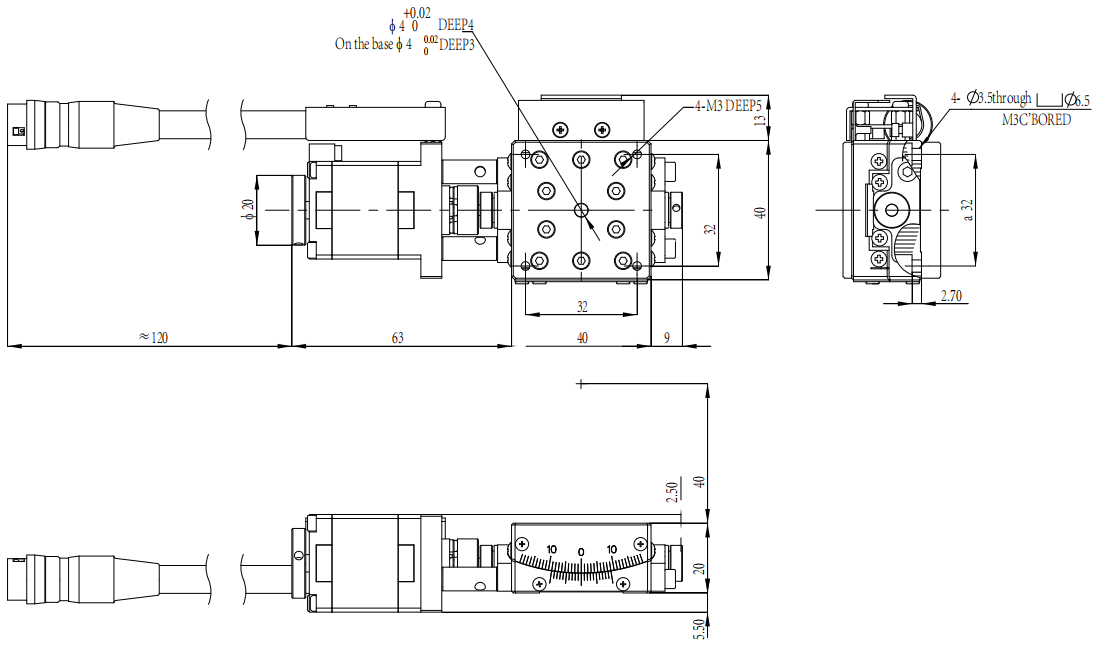

Standard Series	VL-MGS-45-40	Venus Arc™ Compact Goniometer	±45°	40 × 40 mm	Worm Gear	Large Angle, Compact

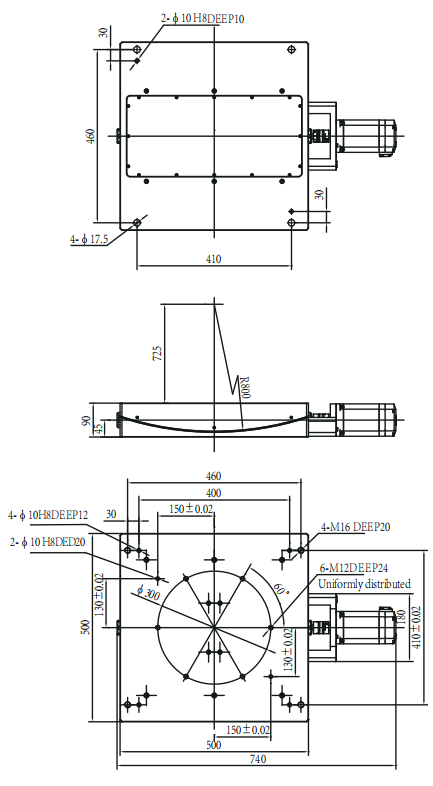

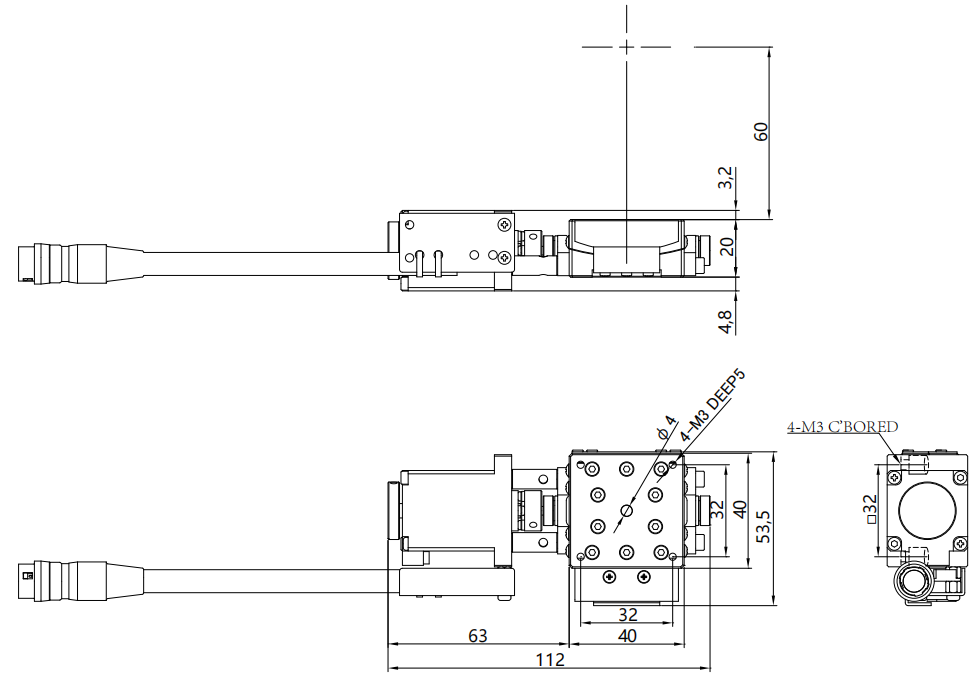

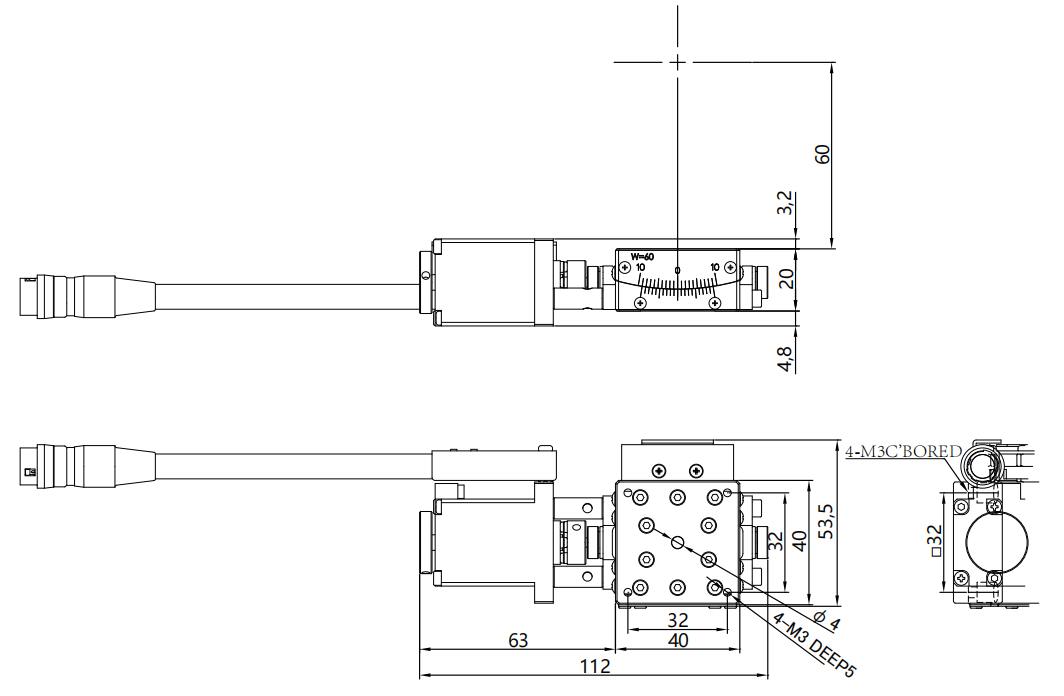

Standard Series	VL-MGS-15-40	Venus Arc™ Compact Goniometer	±15°	40 × 40 mm	Worm Gear	Compact Size
Standard Series	VL-MGS-10-80	Venus Arc™ Mid-Size Goniometer	±10°	80 × 80 mm	Worm Gear	Mid-Size Stability
Standard Series	VL-MGS-15-90	Venus Arc™ Mid-Size Goniometer	±15°	90 × 90 mm	Worm Gear	Mid-Size Stability

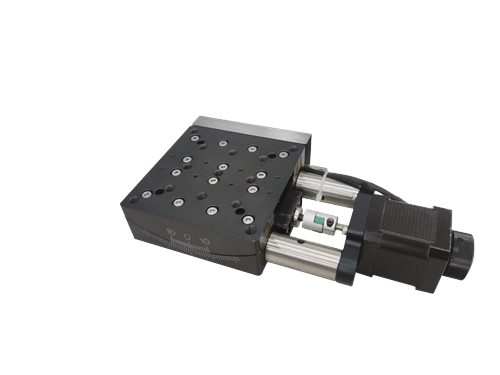

Standard Series	VL-MGS-20-100	Venus Arc™ Large Goniometer	±20°	100 × 100 mm	Worm Gear	Large Range

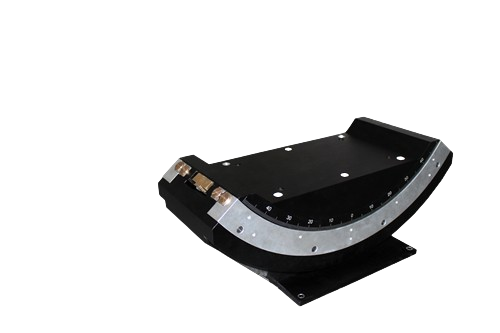

Standard Series	VL-MGS-45-120	Venus Arc™ Large Goniometer	±45∘	120 × 120 mm	Worm Gear	Max Range, Large Table

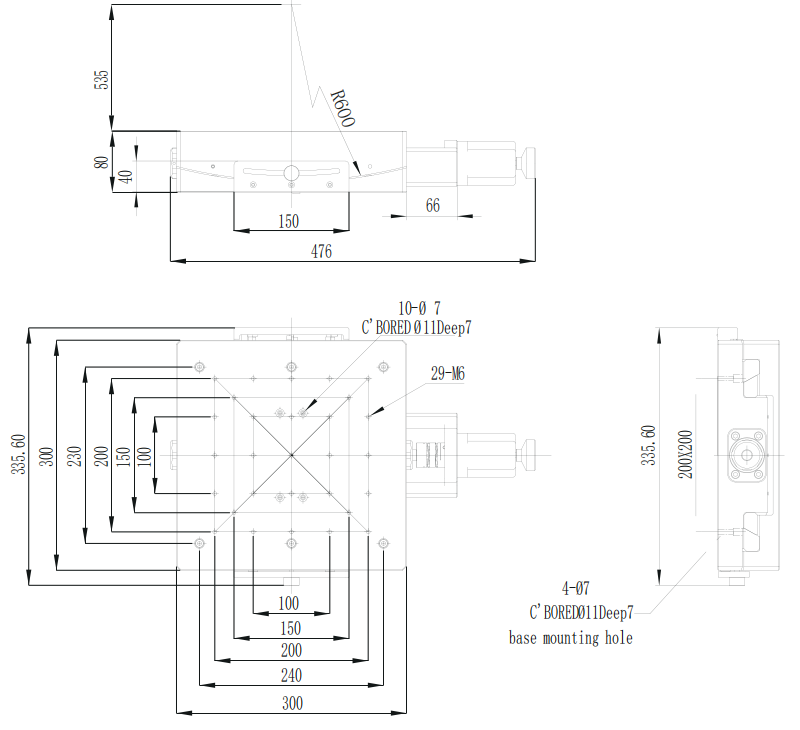

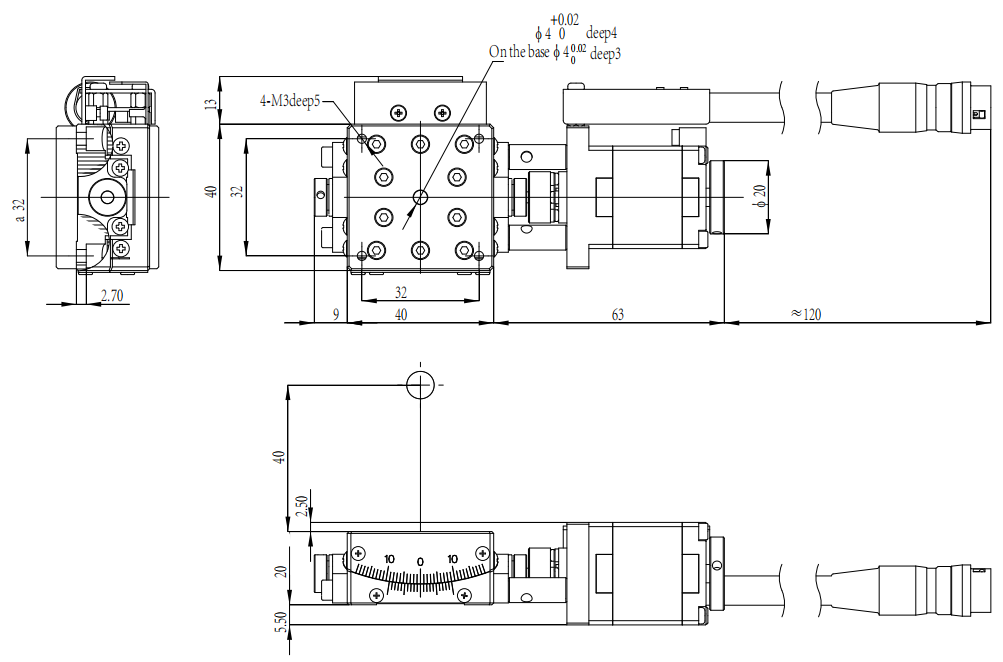

Precision Screw	VL-MGS-08-40-L	Venus Arc™ Precision Screw (L)	±8°	40 × 40 mm	Precision Screw	High Res, Left Type
Precision Screw	VL-MGS-06-40-L	Venus Arc™ Precision Screw (L)	±6°	40 × 60 mm	Precision Screw	High Res, Left Type
Precision Screw	VL-MGS-08-40-R	Venus Arc™ Precision Screw (R)	±8°	40 × 40 mm	Precision Screw	High Res, Right Type
Precision Screw	VL-MGS-06-40-R	Venus Arc™ Precision Screw (R)	±6°	40 × 60 mm	Precision Screw	High Res, Right Type

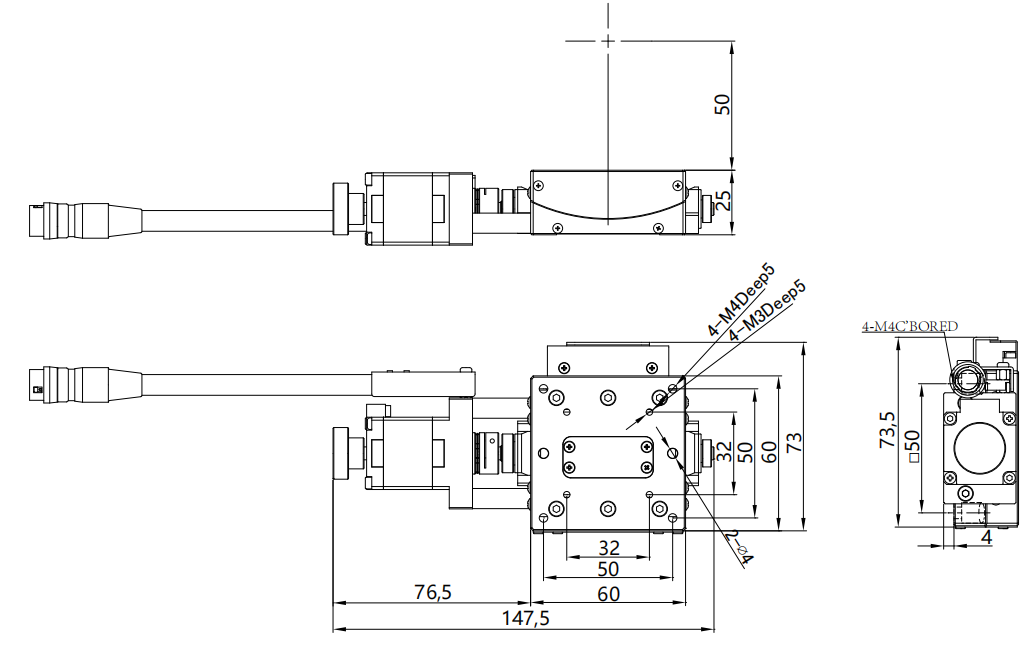

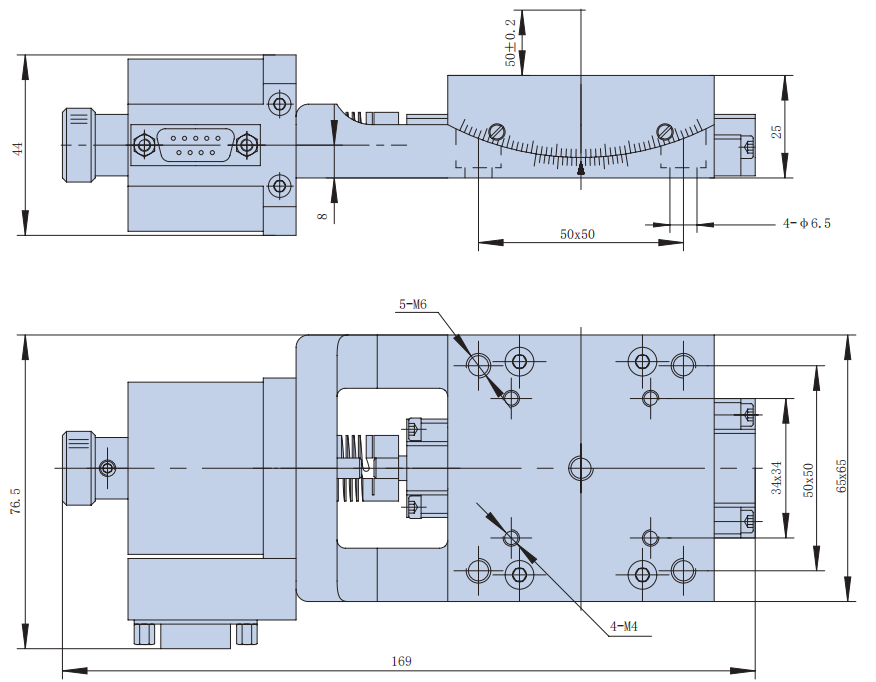

Stackable Series	VL-MGS-08-60-R50-L	Venus Arc™ Stackable (R50-L)	±8.5°	60 × 60 mm	Precision Screw	Center R=50mm

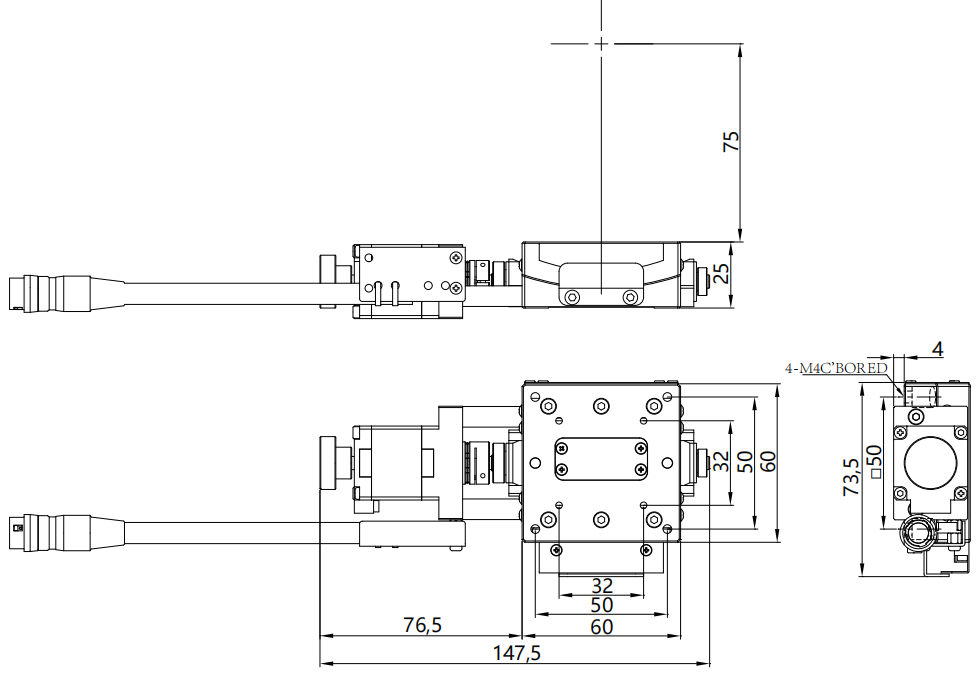

Stackable Series	VL-MGS-05-60-R75-L	Venus Arc™ Stackable (R75-L)	±5.5°	60 × 60 mm	Precision Screw	Center R=75mm

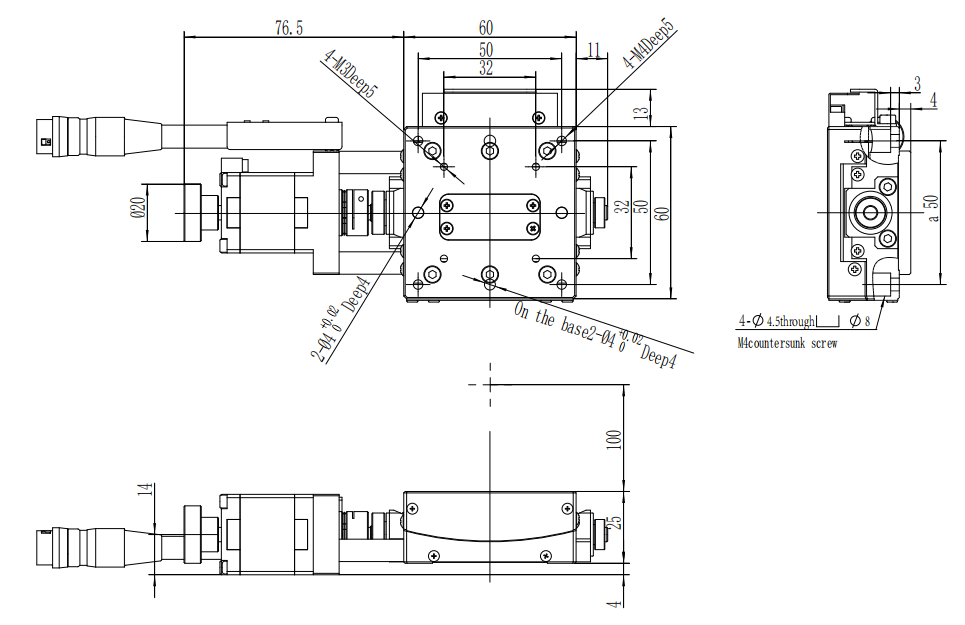

Stackable Series	VL-MGS-05-60-R100-L	Venus Arc™ Stackable (R100-L)	±5.5°	60 × 60 mm	Precision Screw	Center R=100mm
Stackable Series	VL-MGS-04-60-R125-L	Venus Arc™ Stackable (R125-L)	±4°	60 × 60 mm	Precision Screw	Center R=125mm
Stackable Series	VL-MGS-08-60-R50-R	Venus Arc™ Stackable (R50-R)	±8.5°	60 × 60 mm	Precision Screw	Pair for R50

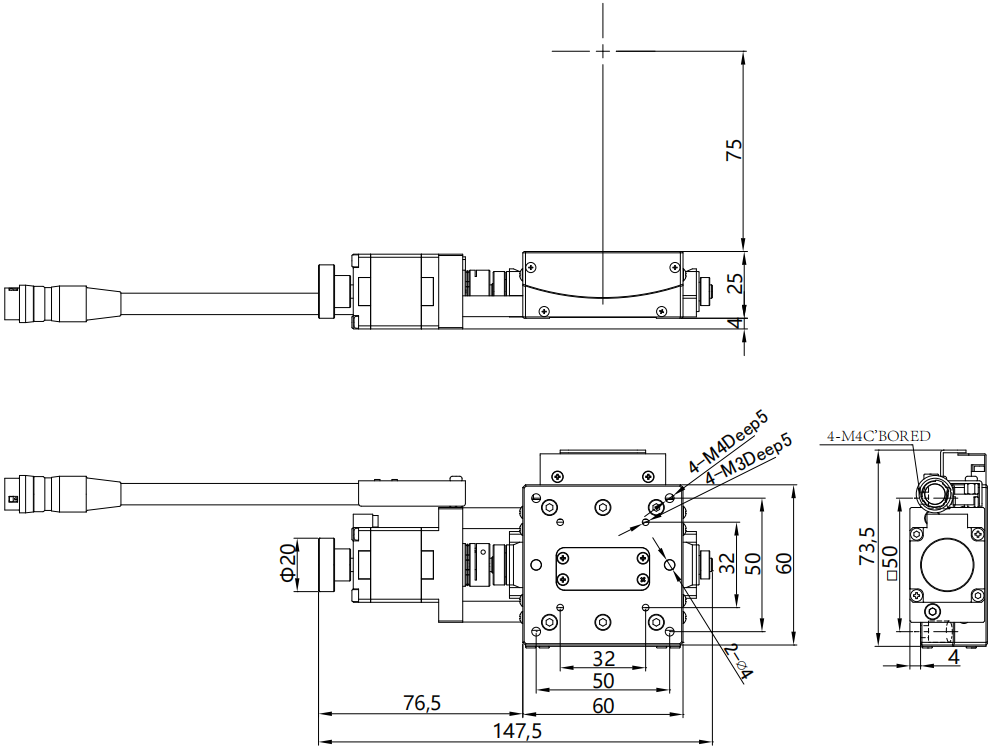

Stackable Series	VL-MGS-05-60-R75-R	Venus Arc™ Stackable (R75-R)	±5.5°	60 × 60 mm	Precision Screw	Pair for R75

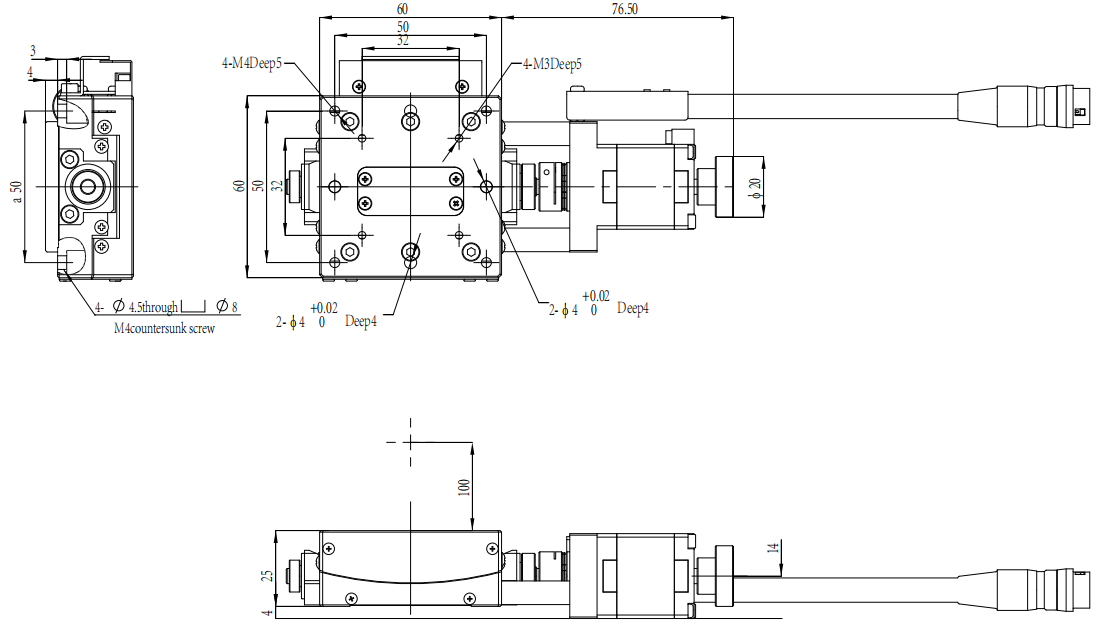

Stackable Series	VL-MGS-05-60-R100-R	Venus Arc™ Stackable (R100-R)	±5.5°	60 × 60 mm	Precision Screw	Pair for R100

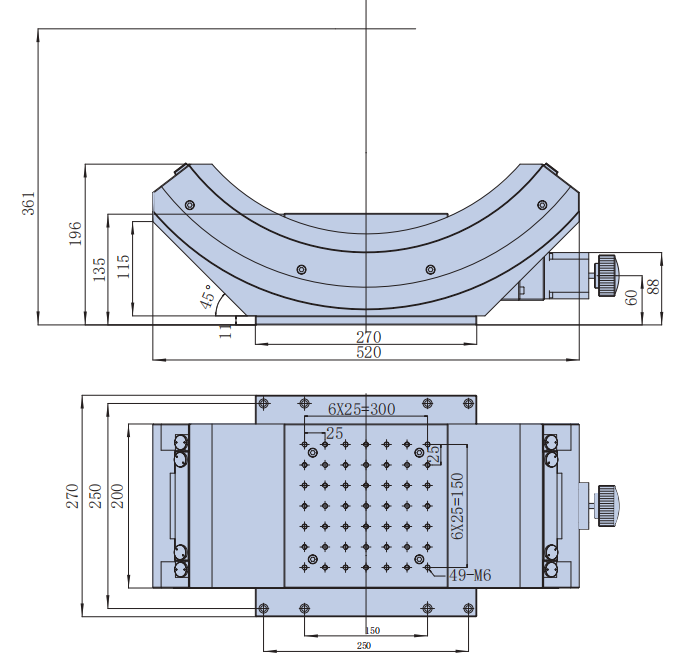

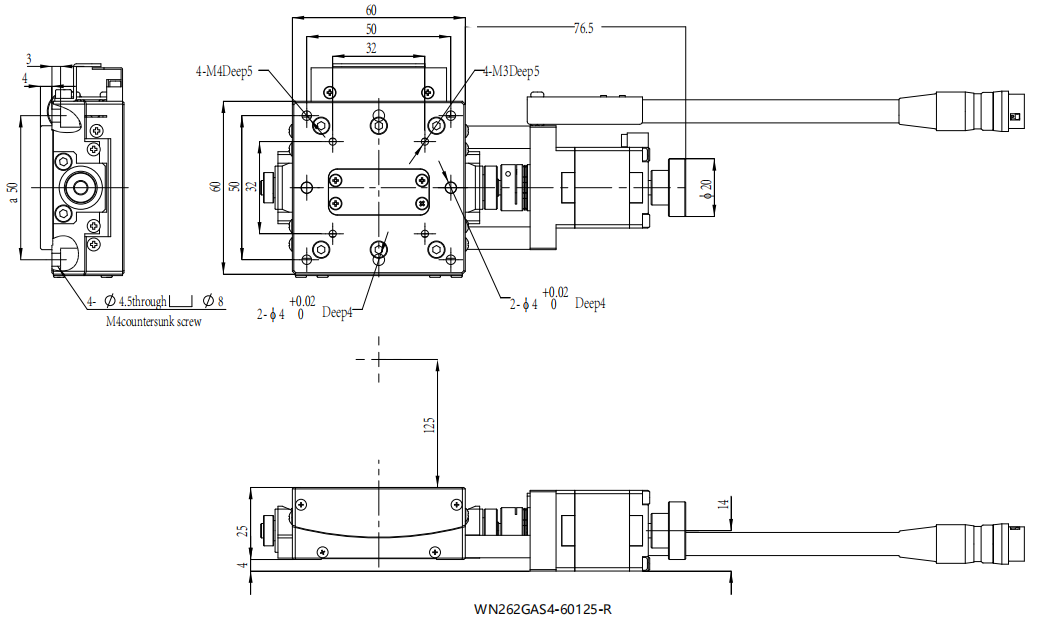

Stackable Series	VL-MGS-04-60-R125-R	Venus Arc™ Stackable (R125-R)	±4°	60 × 60 mm	Precision Screw	Pair for R125

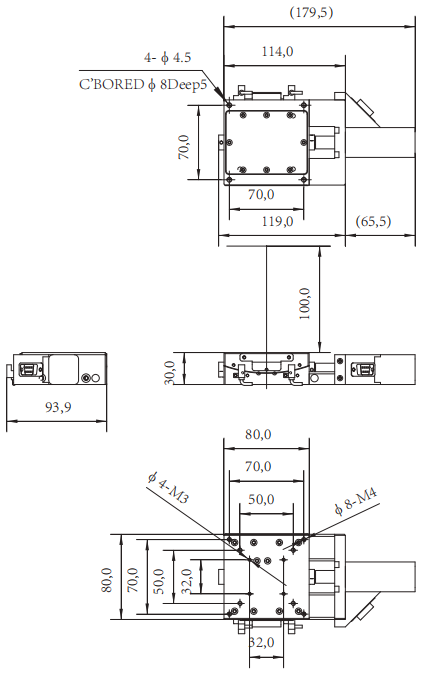

Large Screw	VL-MGS-05-80-R100	Venus Arc™ Wide Screw Stage	±5°	80 × 100 mm	Precision Screw	Wide Platform

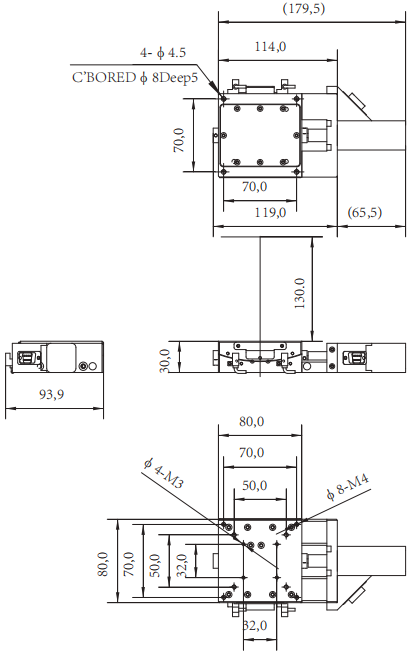

Large Screw	VL-MGS-05-80-R130	Venus Arc™ Wide Screw Stage	±5°	80 × 130 mm	Precision Screw	Wide Platform

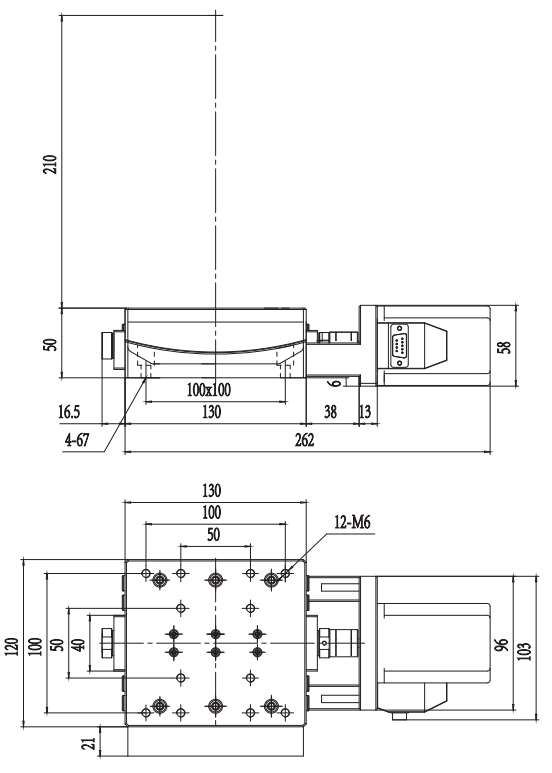

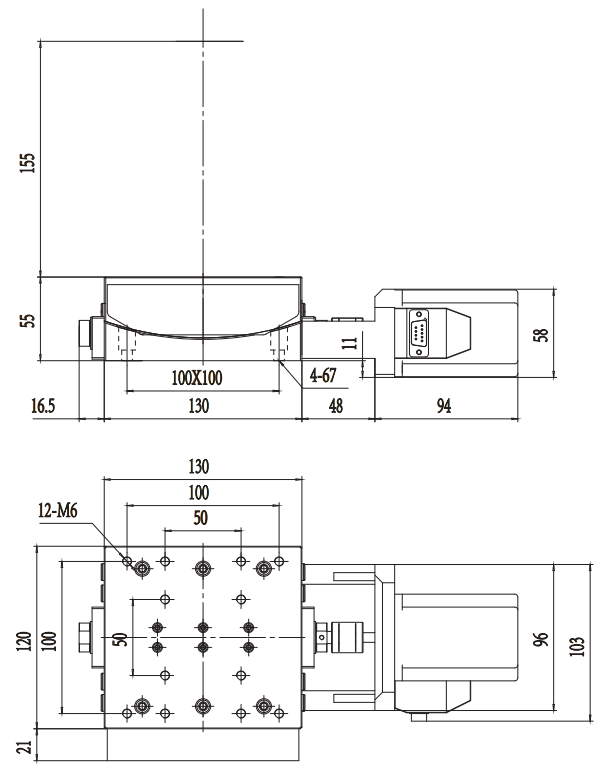

Heavy Duty	VL-MGS-05-100-HD	Venus Arc™ Heavy Duty Stage	±5°	100 × 100 mm	Heavy Duty Worm	High Load Capacity

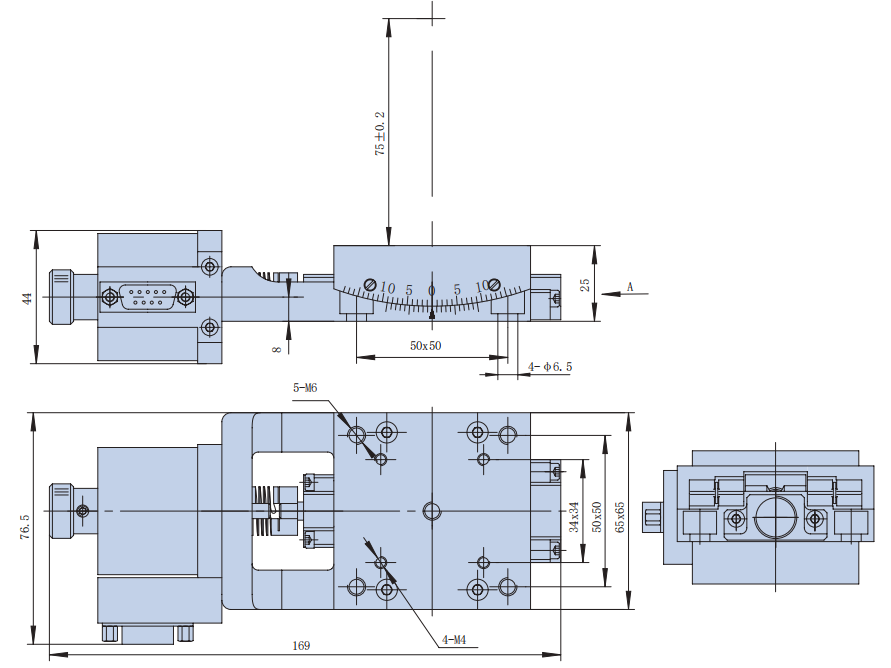

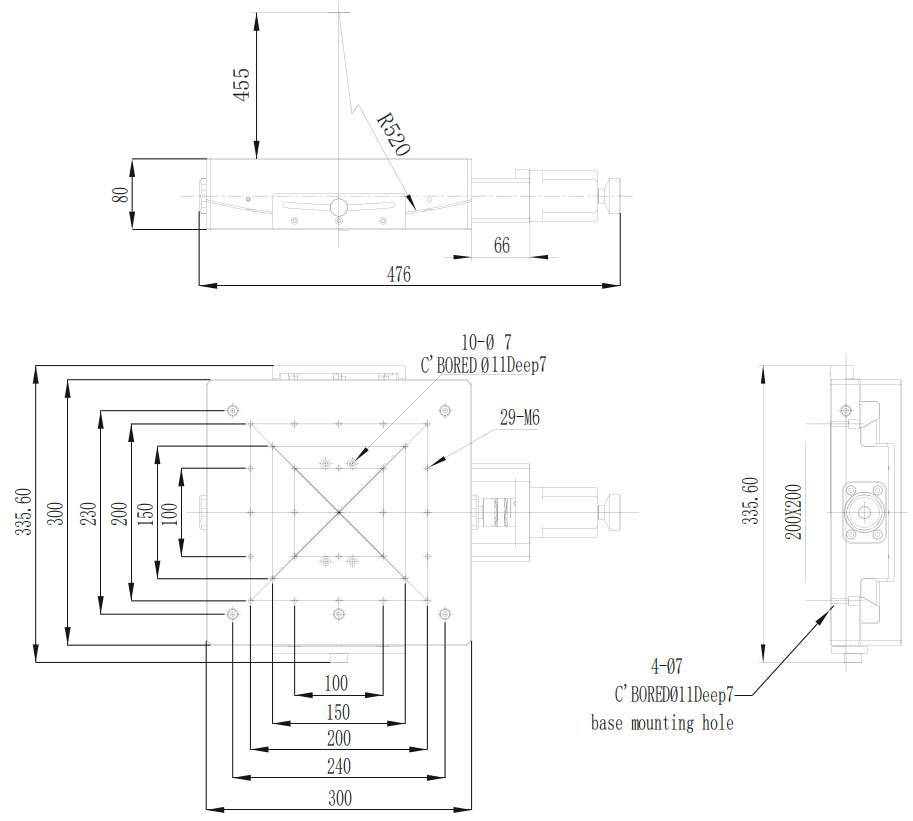

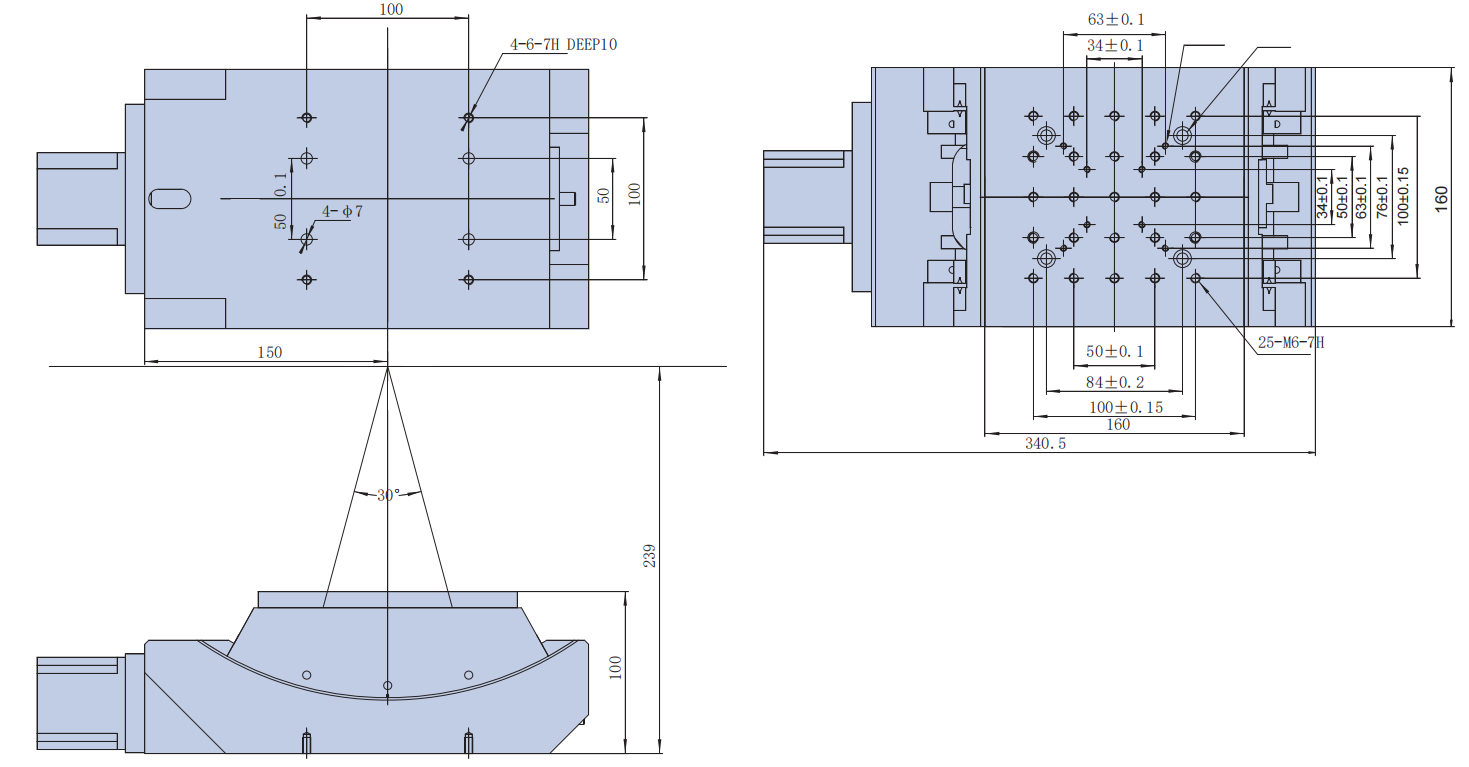

Heavy Duty	VL-MGS-05-200-HD	Venus Arc™ Heavy Duty Stage	±5°	200 × 200 mm	Heavy Duty Worm	Max Load
