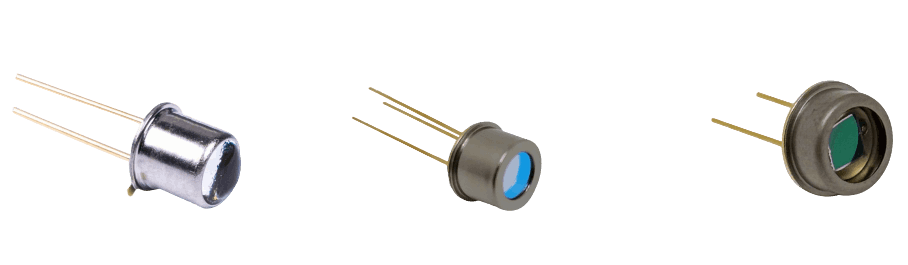

Near-infrared enhanced silicon PIN photodiode (TO package)
产品编号: PDCT01-303
The large spherical lens window can converge divergent near-infrared light, increasing the luminous flux by 30% to 50% (compared with flat windows), and is suitable for low-light environments (such as low-power laser detection, optical analysis in dim scenes).
The lens is integrated into the package, eliminating the need for an external condenser lens, simplifying circuit design, and reducing device size and cost.
注意事项
- 产品图片仅供参考，并不代表所有产品。
已配置规格
| Package Type | TO18 | Window Material/Type | Large Ball Lens |
| Photosensitive Area Size | 1.1×1.1mm | Number of Pins | 2pin |
| Maximum Dark Current (ID, VR=10mV) | 5pA (Max) | Junction Capacitance (Cj, VR=0V, f=100kHz) | 20pF |
浏览全部型号
Near-infrared enhanced silicon PIN photodiode (TO package)
PDCT01-302
Optical glass flat window, photosensitive surface size 1.1×1.1mm.
Near-infrared enhanced silicon PIN photodiode (TO package)
PDCT01-304
Optical glass flat window, photosensitive surface size 1.1×1.1mm.
