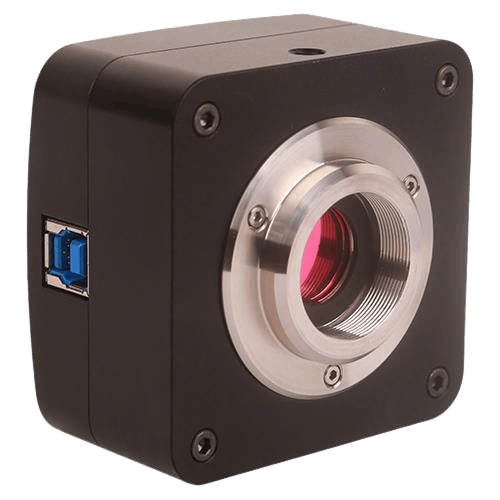

Venuslab ExView U3 Camera
产品编号: NM109000A
The dark current is based on 660nm (1/30s, 12mV, F8.0), which is more suitable for red/far-red fluorescence (such as Cy5, around 660nm).
The frame rate and exposure are consistent with KPA, and the core difference lies in red light spectrum optimization.
图片仅做展示
已配置规格
| Sensor Model and Size | Pixel Pitch (μm) | Green Light Sensitivity & Dark Current | FPS/Resolution | Sampling Averaging | Exposure Time |
|---|---|---|---|---|---|
| 9.0M/ICX814ALG(M) 1“ (12.47x9.98) | 3.69x3.69 | 660mv with 1/30s 12mv with 1/30s (F8.0) | 4.4@3388x2712 4.4@1694x1356 | 1x1 2x2 | 0.06ms~1000s |
浏览全部型号
型号
Green Light Sensitivity & Dark Current
Sensor Model and Size
采样平均
Exposure Time
Sampling Averaging
传感器型号与尺寸
曝光时间
FPS/分辨率
像素(μm)
G光灵敏度 暗电流
FPS/Resolution
Pixel Pitch (μm)
操作
NP112000A
-
-
1x1 2x2
-
-
12M/ICX834AQG(C) 1“ (13.15x8.77)
0.06ms~1000s
3.6@4248x2836 3.6@2124x1418
3.1x3.1
420mv with 1/30s 15.2mv with 1/30s
-
-
NM112000A
420mv with 1/30s 12mv with 1/30s (F8.0)
12M/ICX834ALG(M) 1“ (13.15x8.77)
-
0.06ms~1000s
1x1 2x2
-
-
-
-
-
3.6@4248x2836 3.6@2124x1418
3.1x3.1
NP109000A
580mv with 1/30s 12mv with 1/30s
9.0M/ICX814AQG(C) 1“ (12.47x9.98)
-
0.06ms~1000s
1x1 2x2
-
-
-
-
-
4.4@3388x2712 4.4@1694x1356
3.69x3.69
NP106000A
880mv with 1/30s 8mv with 1/30s
6.0M/ICX694AQG(C) 1“ (12.48x9.99)
-
0.06ms~1000s
1x1
-
-
-
-
-
7.5@2748x2200 14@2748x1092
4.54x4.54
NM106000A
1000mv with 1/30s 8mv with 1/30s
6.0M/ICX694ALG(M) 1“ (12.48x9.99)
-
0.06ms~1000s
1x1
-
-
-
-
-
7.5@2748x2200 14@2748x1092
4.54x4.54
NP102800A
800mv with 1/30s 4mv with 1/30s
2.8M/ICX674AQG(C) 2/3“ (8.81x6.63)
-
0.05ms~1000s
1x1
-
-
-
-
-
15@1938x1460 17@1610x1212 18@1930x1092
4.54x4.54
NM102800A
950mv with 1/30s 4mv with 1/30s
2.8M/ICX674ALG(M) 2/3“ (8.81x6.63)
-
0.05ms~1000s
1x1
-
-
-
-
-
15@1938x1460 17@1610x1212 18@1930x1092
4.54x4.54
NP101400B
2000mv with 1/30s 4.8mv with 1/30s
1.4M/ICX825AQA(C) 2/3“ (8.88x6.70)
-
0.07ms~1000s
1x1
-
-
-
-
-
25@1376x1040
6.45x6.45
NM101400B
2000mv with 1/30s 4.8mv with 1/30s
1.4M/ICX825ALA(M) 2/3“ (8.88x6.70)
-
0.07ms~1000s
1x1
-
-
-
-
-
25@1376x1040
6.45x6.45
