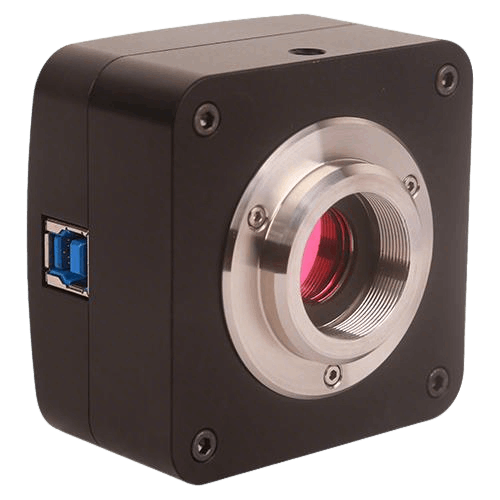

Venuslab-ISP CMOS Camera
产品编号: Venuslab-ISP8.3KP-D
系列灵敏度最高型号，暗电流仅 0.13mV，适合极弱光成像场景。
应用：低强度荧光成像、化学发光检测、弱光生物样本观察。
图片仅做展示
已配置规格
| Sensor& Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|
| 8.3M/IMX585(C) 1/1.2”(11.14x6.26) | 2.9x2.9 | 5970(mV/lx/s) 0.13mv with 1/30s | 45@3840x2160 70@1920x1080 | 1x1 2x2 | 0.02ms~15s |
浏览全部型号
型号
Binning
Pixel(μm)
G Sensitivity Dark Signal
Exposure
FPS/Resolution
Sensor& Size(mm)
操作
Venuslab-ISP45KP-A
1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)
2.315x2.315
108mv with 1/30s 0.03mv with 1/30s
0.1ms~15s
8.1@8176x5616 30.0@4088x2808 8.1@7408x5556 33.0@4088x2808 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1344x720
45M/IMX294(C) 1.4“ (18.93x13.00)
Venuslab-ISP45KP-B
1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)
2.315x2.315
108mv with 1/30s 0.03mv with 1/30s
0.1ms~15s
8.1@8176x5616(C) 30.0@4080x2808(M) 8.1@7408x5556(C) 33.0@3696x2778(M) 10.4@8176x4320(C) 34.7@4096x2160(M) 62.5@2048x1080(M) 86.5@1344x720(M)
45M/IMX492(C,RS) 1.4“ (18.93x13.00)
Venuslab-ISP32KP-A
1x1 2x2 4x4
2.315x2.315
108mv with 1/30s 0.03mv with 1/30s
0.1ms~15s
8.1@5600x5600 30.0@2800x2800 30.0@1400x1400
32M/IMX294(C) 1.15“ (12.96x12.96)
Venuslab-ISP25KP-A
1x1 2x2 3x3
1.12x1.12
96.3mv with 1/30s 0.1mv with 1/30s
0.013ms~15s
12@4928x4928 46@2464x2464 100@1648x1648
25M/IMX511(C) 1/2.3 “ (5.519x5.519)
Venuslab-ISP21KP-A
1x1 1x1 2x2 3x3 9x9
3.3 x3.3
399mv with 1/30s 0.1mv with 1/30s
0.1ms~15s
17@5280x3954 17@3952x3952 56@2640x1976 67@1760x1316 192@584x438
21M/IMX269 (C) 4/3 “(17.4x13.0)
Venuslab-ISP20.4KP-A
1x1 2x2 4x4
2.74 x2.74
1574mv with 1/30s 0.15mv with 1/30s
0.03ms~15s
17.5@4496x4496 64.4@2240x2240 64.4@1120x1120
20.4M/IMX541(C,GS) 1.1 “(12.32x12.32)
Venuslab-ISP20KP-A
1x1 2x2 3x3
2.4 x2.4
462mv with 1/30s 0.21mv with 1/30s
0.1ms~15s
15@5440x3648 50@2736x1824 60@1824x1216
20M/IMX183(C,RS) 1 “(13.06x8.76)
Venuslab-ISP20KP-C
1x1 2x2 3x3
2.4 x2.4
462mv with 1/30s 0.21mv with 1/30s
0.1ms~15s
20@5440x3648 48@2736x1824 58@1824x1216
20M/IMX183(C,RS) 1 “(13.06x8.76)
Venuslab-ISP15.6KP-A
1x1 2x2 3x3
3.3 x3.3
399mv with 1/30s 0.1mv with 1/30s
0.1ms~15s
17@3952x3952 56@1976x1976 67@1316x1316
15.6M/SONY Special (C)1.1 “(13.0x13.0)
Venuslab-ISP18KP-A
1x1 2x2 3x3
1.2 x1.2
130mv with 1/30s 0.1mv with 1/30s
0.1ms~15s
17@4880x3720 40@2448x1836 50@1728x1296
18M/SONY Special(C) 1/2.2 “(5.86x4.46)
Venuslab-ISP12.4KP-A
1x1 2x2 4x4
2.74 x2.74
1337mv with 1/30s 0.15mv with 1/30s
0.03ms~15s
28.2@4096x3000 100.9@2048x1500 100.9@1024x750
12.4M/IMX545 (C,GS) 1/1.1 “(11.22x8.22)
Venuslab-ISP12.3KP-A
1x1 1x1
3.45x3.45
1146mv with 1/30s 0.1mv with 1/30s
0.244ms~15s
23.4@4096x3000 46.3@2048x1500
12.3M/IMX304(C, GS) 1.1”(14.13x10.35)
Venuslab-ISP12KP-A
1x1 2x2
1.85x1.85
280mv with 1/30s 0.1mv with 1/30s
0.1ms~15s
25@4000x3000 50@2048x1080
12M/IMX226(C) 1/1.7“(7.40x5.55)
Venuslab-ISP12KP-B
1x1 2x2 4x4
1.55x1.55
250mv with 1/30s 0.25mv with 1/30s
0.1ms~5s
30@4056x3040 60@2028x1520 120@1014x760
12M/IMX577(C) 1/2“(6.29x4.71)
Venuslab-ISP12KP-C
1x1 2x2
2.0x2.0
3637mv with 12 bit converted value(HCG) 0.15mv with 1/30s
0.013ms~15s
27@3536x3536 60@1768x1768
12M/IMX676(C) 1/1.6“(7.07x7.07)
Venuslab-ISP90KP-A
1x1 1x1
3.45x3.45
1146mv with 1/30s 0.15mv with 1/30s
0.1ms~15s
34@4096x2160 60@2048x1080
9.0M/IMX305(C, GS) 1“ (14.13x7.45)
Venuslab-ISP90KP-B
1x1 2x2 3x3
3.76x3.76
535mv with 1/30s 0.04mv with 1/30s
0.1ms~15s
40@3008x3000 123@1488x1500 186@992x998
9.0M/IMX533(C) 1“ (11.31x11.28)
Venuslab-ISP8.3KP-A
1x1 2x2
1.62x1.62
236mv with 1/30s 0.1mv with 1/30s
0.244ms~15s
32@3840x2160 65@1920x1080
8.3M/IMX274(C) 1/2.5”(6.22x3.50)
Venuslab-ISP8.3KP-B
1x1 2x2
2.0x2.0
505mv with 1/30s 0.1mv with 1/30s
0.02ms~15s
35@3840x2160 60@1920x1080
8.3M/IMX334(C) 1/1.8”(7.68x4.32)
Venuslab-ISP8.3KP-C
1x1 2x2
2.9x2.9
2188mv with 1/30s 0.15mv with 1/30s
0.02ms~15s
45@3840x2160 70@1920x1080
8.3M/IMX485(C) 1/1.2”(11.14x6.26)
Venuslab-ISP8.3KP-E
1x1 2x2
2.0x2.0
3541(mV/lx/s) 0.15mv with 1/30s
0.02ms~15s
45@3840x2160 70@1920x1080
8.3M/IMX678(C) 1/1.8”(7.68x4.32)
Venuslab-ISP8.0KP-A
1x1 2x2 4x4
4.63 x4.63
419mv with 1/30s 0.12mv with 1/30s
0.1ms~15s
30@2808x2808(14bit) 139@1392x1392 139@696x696
8.0M/IMX294(C) 1.15 “(13.00x13.00)
Venuslab-ISP6.3KP-A
1x1 2x2
2.4x2.4
425mv with 1/30s 0.15mv with 1/30s
0.1ms~15s
30@3072 x2048 38@1536x 1024
6.3M/IMX178(C,RS) 1/1.8“ (7.37x4.92)
Venuslab-ISP6.3KP-B
1x1 2x2
2.4x2.4
425mv with 1/30s 0.15mv with 1/30s
0.02ms~15s
59@3072 x2048 59@1536x 1024
6.3M/IMX178(C,RS) 1/1.8“ (7.37x4.92)
Venuslab-ISP5.1KP-A
1x1 2x2
2.74x2.74
1337mv with 1/30s 0.15mv with 1/30s
0.03ms~15s
63@2448x2048 208.4@1224x1024
5.1M/IMX547(C,GS) 1/1.8“ (6.71x5.61)
Venuslab-ISP5.0KP-A
1x1 1x1
3.45x3.45
1146mv with 1/30s 0.15mv with 1/30s
0.1ms~15s
35@2448x2048 50@1224x1024
5.0M/IMX264(C, GS) 2/3” (8.45x7.07)
Venuslab-ISP3.1KP-A
1x1 1x1
3.45x3.45
1146mv with 1/30s 0.15mv with 1/30s
0.1ms~15s
53@2048x1536 85@1024x768
3.1M/IMX265(C, GS) 1/1.8“ (7.07x5.30)
Venuslab-ISP02KP-A
1x1
3.75x3.75
2350mv with 1/30s 0.15mv with 1/30s
0.1ms~15s
125@1920x1080
2M/IMX385(C) 1/2“ (7.2x4.05)
Venuslab-ISP1.5KP-A
1x1 2x2
3.45x3.45
1146mv with 1/30s 0.15mv with 1/30s
0.1ms~15s
164@1440x1080 320@720x540
1.5M/IMX273(C, GS) 1/2.9“ (4.968x3.726)
Venuslab-ISP20KP-D
1x1 2x2 3x3
2.4 x2.4
462mv with 1/30s 0.21mv with 1/30s
0.1ms~15s
15@5440x3648 50@2736x1824 60@1824x1216
20M/IMX283(C,RS) 1 “(13.06x8.76)
Venuslab-ISP3.1KP-B
1x1 1x1
2.5x2.5
600mv with 1/30s 0.15mv with 1/30s
0.1ms~15s
50@2048x1536 50@1920x1080
3.1M/IMX123(C) 1/2.8“ (5.12x3.84)
Venuslab-ISP2.1KP-A
1x1
5.8x5.8
8935mv with 1/30s 0.6mv with 1/30s
14us~15s
96@1920x1080
2.1M/IMX482(C) 1/1.2”(11.14x6.26)
