| 数量 | 价格(USD) | 发货日期 |
|---|---|---|
| 1-10 | $1,668.00 | 待定 |
| 10- | $1,668.00 | 待定 |
注意：发货日期以上是因库存不足而调整的。
订阅Venus Lab Inner Lens，抢先获得行业最新
科研突破、新品发布和特别活动的独家内幕。
当订阅我们的品牌资讯时，您的个人信息将被妥善保护，
并严格遵守我们的隐私政策。

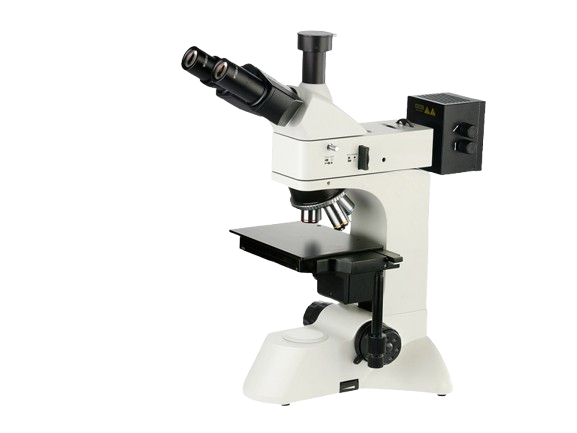

VenusLab U-Met
产品编号: VL U-Met 320
Advantage: Adapted for polarized light observation scenarios
Difference: Trans-reflective illumination is 6V30W
Application: Microscopic observation of polarized samples
图片仅做展示
已配置规格
| Illumination System Parameters | Filter Configuration | Stage Parameters |
|---|---|---|
| 6V30W halogen lamp (transmitted/epi-illumination) | Yellow/blue/green/red filters | Double-layer mechanical stage (210×140mm, travel range 63×50mm) |
浏览全部型号
型号
Stage Parameters
Illumination System Parameters
Filter Configuration
操作
VL U-Met 3230
Double-layer mechanical stage (210×140mm, travel range 63×50mm)
12V30W halogen lamp (transmitted/epi-illumination)
Yellow/blue/green filters + frosted glass
VL U-Met 323B
Double-layer mechanical stage (210×140mm, travel range 63×50mm)
12V50W halogen lamp (epi-illumination) 12V30W halogen lamp (transmitted)
Blue filter + frosted glass
VL U-Met 302
Stage Size/Travel Range(280mm×270mm / 204mm×204mm)
12V30W halogen lamp
Yellow, blue, green, frosted glass
