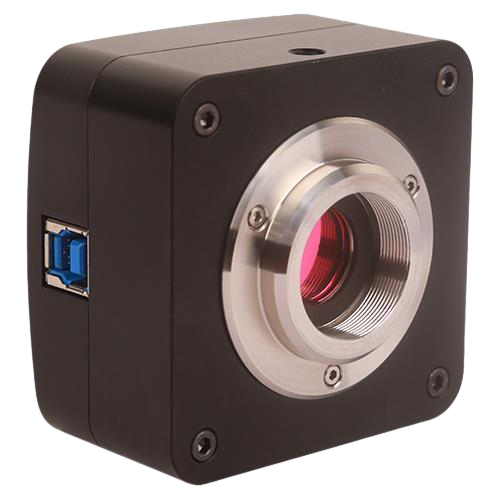

Venuslab ExView U3 Camera
Covers conventional bright field, low-light field, and fluorescence light field microscopic observation
- Adopts Sony ExView HAD CCD chip
- Supports a maximum exposure time of 1 hour
- USB 3.0 (5Gbps) high-speed interface
- Integrated CNC aluminum alloy housing
- Multi-platform SDK (Windows/Linux/macOS/Android)
Enter your email address to get free access, receive a product brochure, or enjoy special discounts.
Overview
Specifications
Packing List
Introduction:
The Sony ExView HAD CCD incorporates a technology that converts unconverted near-infrared light into image signals, thereby extending the imaging spectrum from visible light to near-infrared light.
This technology greatly enhances the light sensitivity of the sensor. When using the "ExView HAD CCD" chip, high-brightness images can still be obtained in dark environments. Furthermore, the diffused light that previously leaked into the vertical CCD section during photoelectric conversion in the deep layers of the silicon wafer can now be captured by the sensor, thus significantly reducing the sensor's noise.
Features:
- C-mount CCD camera featuring SONY ExView technology
- Integrated CNC aluminum alloy housing
- FPGA-controlled precise exposure with a maximum duration of 1 hour, ensuring the capture of weak fluorescence images
- USB 3.0 (5Gbit/s) interface for high video transmission speed
- Ultra-Fine color engine for accurate color reproduction
- Advanced video and image processing software included with the camera
- Standard SDKs provided for multiple platforms: Windows, Linux, macOS, and Android

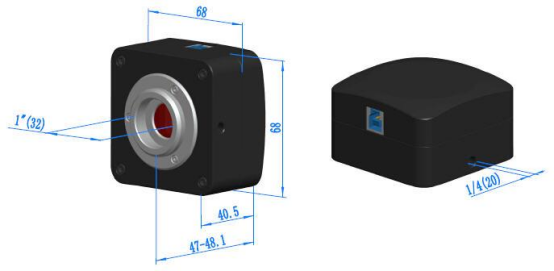

Dimension:
Explore Series
Venuslab ExView U3 Camera
NP112000A
12-megapixel Sony ICX834AQG (C) sensor, featuring a 1" sensor format (13.15×8.77mm) and a 3.1μm pixel pitch.
Venuslab ExView U3 Camera
NM112000A
12-megapixel Sony ICX834ALG (M), with the same 1" sensor format and 3.1μm pixel pitch.
Venuslab ExView U3 Camera
NM109000A
9M pixels Sony ICX814ALG (M), with the same 1" target surface and 3.69μm pixels.
Venuslab ExView U3 Camera
NM109000A
9M pixels Sony ICX814ALG (M), with the same 1" target surface and 3.69μm pixels.
Venuslab ExView U3 Camera
NP106000A
6M pixels Sony ICX694AQG (C), 1" target surface (12.48×9.99mm), 4.54μm pixels.
Venuslab ExView U3 Camera
NM106000A
6M pixels Sony ICX694ALG (M), with the same 1" target surface and 4.54μm pixels.
Venuslab ExView U3 Camera
NP102800A
2.8M pixels Sony ICX674AQG (C), 2/3″ target surface (8.81×6.63mm), 4.54μm pixels (large pixels, high sensitivity).
Venuslab ExView U3 Camera
NM102800A
2.8M pixels Sony ICX674ALG (M), with the same 2/3″ target surface and 4.54μm pixel size.
Venuslab ExView U3 Camera
NP101400B
1.4M pixels Sony ICX825AA (C), 2/3″ target surface (8.88×6.70mm), 6.45μm ultra-large pixels (extreme light sensitivity).
