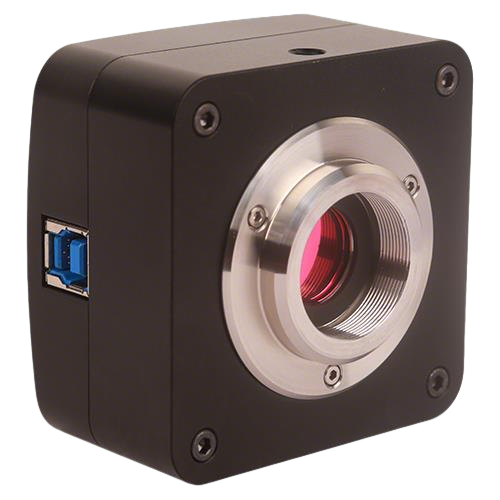

Venuslab ExView U3 Camera

Part Number: NM109000A

The dark current is based on 660nm (1/30s, 12mV, F8.0), which is more suitable for red/far-red fluorescence (such as Cy5, around 660nm).

The frame rate and exposure are consistent with KPA, and the core difference lies in red light spectrum optimization.

Caution
  • Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Sensor Model and Size9.0M/ICX814ALG(M) 1“ (12.47x9.98)Pixel Pitch (μm)3.69x3.69
Green Light Sensitivity & Dark Current660mv with 1/30s 12mv with 1/30s (F8.0)FPS/Resolution4.4@3388x2712 4.4@1694x1356
Sampling Averaging1x1 2x2Exposure Time0.06ms~1000s
Unit Price
Total
Ship Date
TBD
Qty.
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Venuslab ExView U3 Camera

NP112000A
12-megapixel Sony ICX834AQG (C) sensor, featuring a 1" sensor format (13.15×8.77mm) and a 3.1μm pixel pitch.
Ships as soon as Same Day
Stock Items Included

Venuslab ExView U3 Camera

NM112000A
12-megapixel Sony ICX834ALG (M), with the same 1" sensor format and 3.1μm pixel pitch.
Ships as soon as Same Day
Stock Items Included

Venuslab ExView U3 Camera

NM109000A
9M pixels Sony ICX814ALG (M), with the same 1" target surface and 3.69μm pixels.
Ships as soon as Same Day
Stock Items Included

Venuslab ExView U3 Camera

NP106000A
6M pixels Sony ICX694AQG (C), 1" target surface (12.48×9.99mm), 4.54μm pixels.
Ships as soon as Same Day
Stock Items Included
