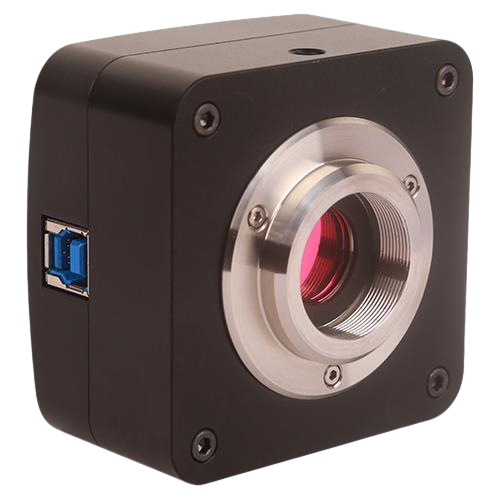

Venuslab-ISP CMOS Camera

https://source.venuslabtech.com/mall-prod/26ecd96e-1055-4ae8-8f54-10d9999f5a8d.png

Venuslab-ISP CMOS Camera

Part Number: Venuslab-ISP20.4KP-A

Global shutter eliminates motion artifacts, making it suitable for imaging fast-moving samples. The frame rate reaches 64.4fps in 4×4 binning mode.

Applications: Hydrodynamics research, dynamic cell migration observation, high-speed particle tracking.

Caution

Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Sensor& Size(mm)	20.4M/IMX541(C,GS) 1.1 “(12.32x12.32)	Pixel(μm)	2.74 x2.74
G Sensitivity Dark Signal	1574mv with 1/30s 0.15mv with 1/30s	FPS/Resolution	17.5@4496x4496 64.4@2240x2240 64.4@1120x1120
Binning	1x1 2x2 4x4	Exposure	0.03ms~15s

Unit Price

Total

Ship Date

TBD

Qty.

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Venuslab-ISP CMOS Camera

Venuslab-ISP45KP-A

1.4-inch IMX294 sensor (18.93×13.00mm), with a pixel size of 2.315μm and a maximum resolution of 8176×5616.

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP45KP-B

IMX492 (Exmor RS) sensor, maintaining a pixel size of 2.315μm, newly adding 3696×2778 (4:3)

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP32KP-A

1.15-inch square target surface (12.96×12.96mm), IMX294 sensor, 5600×5600 resolution.

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP25KP-A

1/2.3 inch IMX511 sensor (5.519×5.519mm), 1.12μm pixels, 4928×4928 resolution.

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP21KP-A

4/3-inch IMX269 sensor (17.4×13.0mm), 3.3μm large pixels, 5280×3954.

Ships as soon as Same Day

Stock Items Included
