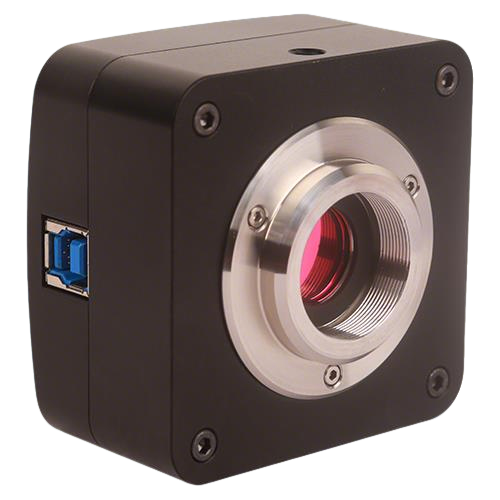

Venuslab-ISP CMOS Camera

Part Number: Venuslab-ISP8.0KP-A

4.63μm ultra-large pixels, 14-bit output to enhance dynamic range, square field of view compatible with stereomicroscopes.

Applications: Observation of symmetric structures in low-light environments, high-sensitivity imaging with stereomicroscopes, detection of material defects.

Caution

Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Sensor& Size(mm)	8.0M/IMX294(C) 1.15 “(13.00x13.00)	Pixel(μm)	4.63 x4.63
G Sensitivity Dark Signal	419mv with 1/30s 0.12mv with 1/30s	FPS/Resolution	30@2808x2808(14bit) 139@1392x1392 139@696x696
Binning	1x1 2x2 4x4	Exposure	0.1ms~15s

Unit Price

Total

Ship Date

TBD

Qty.

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Venuslab-ISP CMOS Camera

Venuslab-ISP45KP-A

1.4-inch IMX294 sensor (18.93×13.00mm), with a pixel size of 2.315μm and a maximum resolution of 8176×5616.

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP45KP-B

IMX492 (Exmor RS) sensor, maintaining a pixel size of 2.315μm, newly adding 3696×2778 (4:3)

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP32KP-A

1.15-inch square target surface (12.96×12.96mm), IMX294 sensor, 5600×5600 resolution.

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP25KP-A

1/2.3 inch IMX511 sensor (5.519×5.519mm), 1.12μm pixels, 4928×4928 resolution.

Ships as soon as Same Day

Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP21KP-A

4/3-inch IMX269 sensor (17.4×13.0mm), 3.3μm large pixels, 5280×3954.

Ships as soon as Same Day

Stock Items Included
