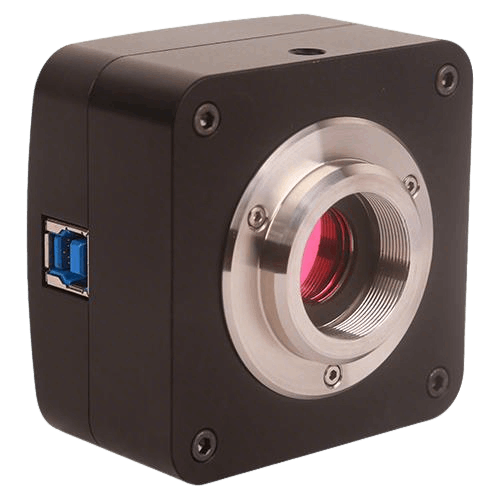

Venuslab-ISP CMOS Camera

Part Number: Venuslab-ISP12.3KP-A

3.45μm large pixels enhance low-light performance, global shutter is suitable for medium-speed dynamic scenes, and 0.2...15s wide exposure range.


Applications: low-light dynamic observation, rapid switching between fluorescence and bright field, industrial online inspection.

Caution
  • Product image is for representative purposes only and not reflective of every product available on this page.

Configured Specifications

Sensor& Size(mm)12.3M/IMX304(C, GS) 1.1”(14.13x10.35)Pixel(μm)3.45x3.45
G Sensitivity Dark Signal1146mv with 1/30s 0.1mv with 1/30sFPS/Resolution23.4@4096x3000 46.3@2048x1500
Binning1x1 1x1Exposure0.244ms~15s
Unit Price
Total
Ship Date
TBD
Qty.
Quantity Price(USD)Ship Date
1-10TBD
10-TBD
NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

Venuslab-ISP CMOS Camera

Venuslab-ISP45KP-A
1.4-inch IMX294 sensor (18.93×13.00mm), with a pixel size of 2.315μm and a maximum resolution of 8176×5616.
Ships as soon as Same Day
Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP45KP-B
IMX492 (Exmor RS) sensor, maintaining a pixel size of 2.315μm, newly adding 3696×2778 (4:3)
Ships as soon as Same Day
Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP32KP-A
1.15-inch square target surface (12.96×12.96mm), IMX294 sensor, 5600×5600 resolution.
Ships as soon as Same Day
Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP25KP-A
1/2.3 inch IMX511 sensor (5.519×5.519mm), 1.12μm pixels, 4928×4928 resolution.
Ships as soon as Same Day
Stock Items Included

Venuslab-ISP CMOS Camera

Venuslab-ISP21KP-A
4/3-inch IMX269 sensor (17.4×13.0mm), 3.3μm large pixels, 5280×3954.
Ships as soon as Same Day
Stock Items Included
