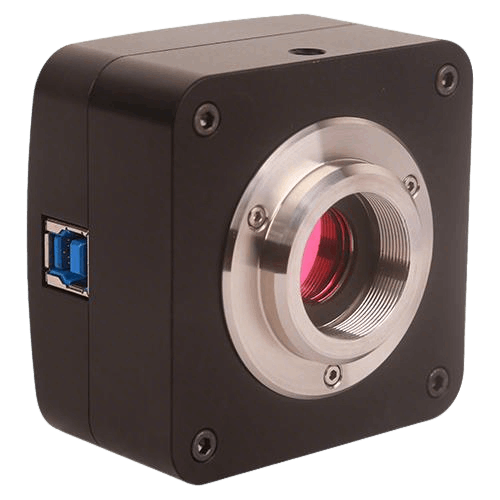

Venuslab-ISP CMOS Camera

Part Number: Venuslab-ISP90KP-A

Global shutters are suitable for dynamic scenes. The large 3.45μm pixels ensure low-light performance, and the 16:9 aspect ratio is suitable for video observation.

Applications: Recording of high-speed dynamic events, assembly line inspection, and teaching video collection.

Sensor& Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
9.0M/IMX305(C, GS) 1“ (14.13x7.45)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	34@4096x2160 60@2048x1080	1x1 1x1	0.1ms~15s

Sensor& Size(mm)

Pixel(μm)

G Sensitivity Dark Signal

FPS/Resolution

Binning

Exposure

9.0M/IMX305(C, GS) 1“ (14.13x7.45)

3.45x3.45

1146mv with 1/30s 0.15mv with 1/30s

34@4096x2160 60@2048x1080

1x1 1x1

0.1ms~15s

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

1-10

TBD

10-

TBD

Explore Series

	Model	Binning	Pixel(μm)	G Sensitivity Dark Signal	Exposure	FPS/Resolution	Sensor& Size(mm)
	Venuslab-ISP45KP-A	1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)	2.315x2.315	108mv with 1/30s 0.03mv with 1/30s	0.1ms~15s	8.1@8176x5616 30.0@4088x2808 8.1@7408x5556 33.0@4088x2808 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1344x720	45M/IMX294(C) 1.4“ (18.93x13.00)		Venuslab-ISP45KP-B	1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)	2.315x2.315	108mv with 1/30s 0.03mv with 1/30s	0.1ms~15s	8.1@8176x5616(C) 30.0@4080x2808(M) 8.1@7408x5556(C) 33.0@3696x2778(M) 10.4@8176x4320(C) 34.7@4096x2160(M) 62.5@2048x1080(M) 86.5@1344x720(M)	45M/IMX492(C,RS) 1.4“ (18.93x13.00)		Venuslab-ISP32KP-A	1x1 2x2 4x4	2.315x2.315	108mv with 1/30s 0.03mv with 1/30s	0.1ms~15s	8.1@5600x5600 30.0@2800x2800 30.0@1400x1400	32M/IMX294(C) 1.15“ (12.96x12.96)		Venuslab-ISP25KP-A	1x1 2x2 3x3	1.12x1.12	96.3mv with 1/30s 0.1mv with 1/30s	0.013ms~15s	12@4928x4928 46@2464x2464 100@1648x1648	25M/IMX511(C) 1/2.3 “ (5.519x5.519)		Venuslab-ISP21KP-A	1x1 1x1 2x2 3x3 9x9	3.3 x3.3	399mv with 1/30s 0.1mv with 1/30s	0.1ms~15s	17@5280x3954 17@3952x3952 56@2640x1976 67@1760x1316 192@584x438	21M/IMX269 (C) 4/3 “(17.4x13.0)		Venuslab-ISP20.4KP-A	1x1 2x2 4x4	2.74 x2.74	1574mv with 1/30s 0.15mv with 1/30s	0.03ms~15s	17.5@4496x4496 64.4@2240x2240 64.4@1120x1120	20.4M/IMX541(C,GS) 1.1 “(12.32x12.32)		Venuslab-ISP20KP-A	1x1 2x2 3x3	2.4 x2.4	462mv with 1/30s 0.21mv with 1/30s	0.1ms~15s	15@5440x3648 50@2736x1824 60@1824x1216	20M/IMX183(C,RS) 1 “(13.06x8.76)		Venuslab-ISP20KP-C	1x1 2x2 3x3	2.4 x2.4	462mv with 1/30s 0.21mv with 1/30s	0.1ms~15s	20@5440x3648 48@2736x1824 58@1824x1216	20M/IMX183(C,RS) 1 “(13.06x8.76)		Venuslab-ISP15.6KP-A	1x1 2x2 3x3	3.3 x3.3	399mv with 1/30s 0.1mv with 1/30s	0.1ms~15s	17@3952x3952 56@1976x1976 67@1316x1316	15.6M/SONY Special (C)1.1 “(13.0x13.0)		Venuslab-ISP18KP-A	1x1 2x2 3x3	1.2 x1.2	130mv with 1/30s 0.1mv with 1/30s	0.1ms~15s	17@4880x3720 40@2448x1836 50@1728x1296	18M/SONY Special(C) 1/2.2 “(5.86x4.46)		Venuslab-ISP12.4KP-A	1x1 2x2 4x4	2.74 x2.74	1337mv with 1/30s 0.15mv with 1/30s	0.03ms~15s	28.2@4096x3000 100.9@2048x1500 100.9@1024x750	12.4M/IMX545 (C,GS) 1/1.1 “(11.22x8.22)		Venuslab-ISP12.3KP-A	1x1 1x1	3.45x3.45	1146mv with 1/30s 0.1mv with 1/30s	0.244ms~15s	23.4@4096x3000 46.3@2048x1500	12.3M/IMX304(C, GS) 1.1”(14.13x10.35)		Venuslab-ISP12KP-A	1x1 2x2	1.85x1.85	280mv with 1/30s 0.1mv with 1/30s	0.1ms~15s	25@4000x3000 50@2048x1080	12M/IMX226(C) 1/1.7“(7.40x5.55)		Venuslab-ISP12KP-B	1x1 2x2 4x4	1.55x1.55	250mv with 1/30s 0.25mv with 1/30s	0.1ms~5s	30@4056x3040 60@2028x1520 120@1014x760	12M/IMX577(C) 1/2“(6.29x4.71)		Venuslab-ISP12KP-C	1x1 2x2	2.0x2.0	3637mv with 12 bit converted value(HCG) 0.15mv with 1/30s	0.013ms~15s	27@3536x3536 60@1768x1768	12M/IMX676(C) 1/1.6“(7.07x7.07)		Venuslab-ISP90KP-B	1x1 2x2 3x3	3.76x3.76	535mv with 1/30s 0.04mv with 1/30s	0.1ms~15s	40@3008x3000 123@1488x1500 186@992x998	9.0M/IMX533(C) 1“ (11.31x11.28)		Venuslab-ISP8.3KP-A	1x1 2x2	1.62x1.62	236mv with 1/30s 0.1mv with 1/30s	0.244ms~15s	32@3840x2160 65@1920x1080	8.3M/IMX274(C) 1/2.5”(6.22x3.50)		Venuslab-ISP8.3KP-B	1x1 2x2	2.0x2.0	505mv with 1/30s 0.1mv with 1/30s	0.02ms~15s	35@3840x2160 60@1920x1080	8.3M/IMX334(C) 1/1.8”(7.68x4.32)		Venuslab-ISP8.3KP-C	1x1 2x2	2.9x2.9	2188mv with 1/30s 0.15mv with 1/30s	0.02ms~15s	45@3840x2160 70@1920x1080	8.3M/IMX485(C) 1/1.2”(11.14x6.26)		Venuslab-ISP8.3KP-D	1x1 2x2	2.9x2.9	5970(mV/lx/s) 0.13mv with 1/30s	0.02ms~15s	45@3840x2160 70@1920x1080	8.3M/IMX585(C) 1/1.2”(11.14x6.26)		Venuslab-ISP8.3KP-E	1x1 2x2	2.0x2.0	3541(mV/lx/s) 0.15mv with 1/30s	0.02ms~15s	45@3840x2160 70@1920x1080	8.3M/IMX678(C) 1/1.8”(7.68x4.32)		Venuslab-ISP8.0KP-A	1x1 2x2 4x4	4.63 x4.63	419mv with 1/30s 0.12mv with 1/30s	0.1ms~15s	30@2808x2808(14bit) 139@1392x1392 139@696x696	8.0M/IMX294(C) 1.15 “(13.00x13.00)		Venuslab-ISP6.3KP-A	1x1 2x2	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	0.1ms~15s	30@3072 x2048 38@1536x 1024	6.3M/IMX178(C,RS) 1/1.8“ (7.37x4.92)		Venuslab-ISP6.3KP-B	1x1 2x2	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	0.02ms~15s	59@3072 x2048 59@1536x 1024	6.3M/IMX178(C,RS) 1/1.8“ (7.37x4.92)		Venuslab-ISP5.1KP-A	1x1 2x2	2.74x2.74	1337mv with 1/30s 0.15mv with 1/30s	0.03ms~15s	63@2448x2048 208.4@1224x1024	5.1M/IMX547(C,GS) 1/1.8“ (6.71x5.61)		Venuslab-ISP5.0KP-A	1x1 1x1	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	0.1ms~15s	35@2448x2048 50@1224x1024	5.0M/IMX264(C, GS) 2/3” (8.45x7.07)		Venuslab-ISP3.1KP-A	1x1 1x1	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	0.1ms~15s	53@2048x1536 85@1024x768	3.1M/IMX265(C, GS) 1/1.8“ (7.07x5.30)		Venuslab-ISP02KP-A	1x1	3.75x3.75	2350mv with 1/30s 0.15mv with 1/30s	0.1ms~15s	125@1920x1080	2M/IMX385(C) 1/2“ (7.2x4.05)		Venuslab-ISP1.5KP-A	1x1 2x2	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	0.1ms~15s	164@1440x1080 320@720x540	1.5M/IMX273(C, GS) 1/2.9“ (4.968x3.726)		Venuslab-ISP20KP-D	1x1 2x2 3x3	2.4 x2.4	462mv with 1/30s 0.21mv with 1/30s	0.1ms~15s	15@5440x3648 50@2736x1824 60@1824x1216	20M/IMX283(C,RS) 1 “(13.06x8.76)		Venuslab-ISP3.1KP-B	1x1 1x1	2.5x2.5	600mv with 1/30s 0.15mv with 1/30s	0.1ms~15s	50@2048x1536 50@1920x1080	3.1M/IMX123(C) 1/2.8“ (5.12x3.84)		Venuslab-ISP2.1KP-A	1x1	5.8x5.8	8935mv with 1/30s 0.6mv with 1/30s	14us~15s	96@1920x1080	2.1M/IMX482(C) 1/1.2”(11.14x6.26)
