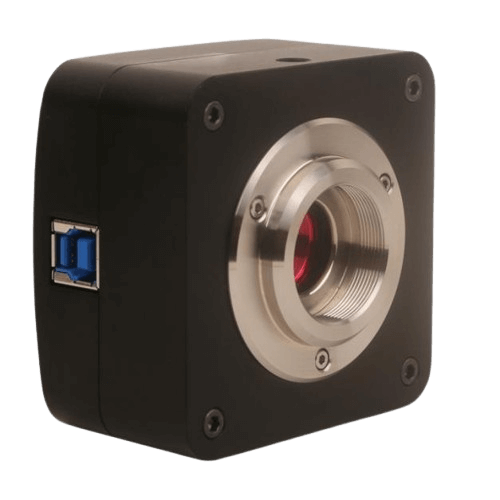

Venuslab-UISP CMOS Camera

Part Number: Venuslab-UISP16KP-A

Advantages:
Balances resolution and light sensitivity, with multiple binning to adapt to different frame rate requirements.

Applications:
Scenarios such as industrial visual inspection and document scanning.

Images are for display purposes only.

Specifications

Sensor & Size	Pix(μm)	G Responsivity Dynamic range S/N(Rms)	FPS/Resolution	Binning	Exposure
16M/MN34120(C) 1/2.33" (6.18×4.67)	1.335×1.335	R: 2.445 LSB Gg: 2.444 LSB Gb: 1.054 LSB B: 9.096 LSB	16.6@4632×3488 30.2@2316×1740 27@1544×1160	1×1 2×2 3×3	0.2ms - 2s

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Binning	Pix(μm)	Pix(μm)	Sensor & Size	Exposure	FPS/Resolution	G Responsivity Dynamic range S/N(Rms)	FPS/Resolution	Sensor & Size	Binning
	Venuslab-UISP18KP-A	-	1.25×1.25	-	18M/AR1820(C) 1/2.3" (6.14×4.61)	0.1ms - 2s	13.1@4912×3684 34.2@2456×1842 54.4@1228×922	0.62 Vlux - sec 65.8dB	-	-	1×1 2×2 4×4		Venuslab-UISP16KP-B	1×1 2×2 3×3	-	3.8×3.8	-	0.2ms - 15s	-	R: 1315 LSB Gg: 1315 LSB Gb: 241 LSB B: 241 LSB (Gain = 0dB)	22@4640×3506 30@3460×2526 43@2320×1740 49@1544×1168	16M/MN34230(C) 4/3" (17.60×13.30)	-		Venuslab-UISP20KP-A	1×1 2×2	-	1.4×1.4	-	0.2ms - 15s	-	8.4 ke - Vlux - sec	20@5120×3840 45@2560×1920	20M/AR2020(C) 1/1.8" (7.17×5.38)	-
