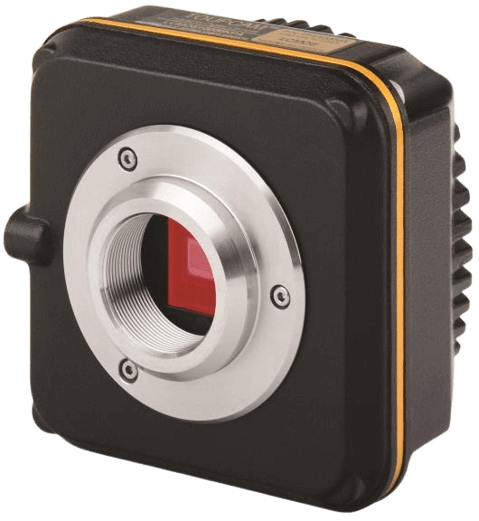

Venuslab-L3 CMOS Camera

Part Number: Venuslab-L3-12KP-A

Advantages:
It achieves a certain balance in resolution and pixel size, and can take into account both certain detail capture and light-sensing capabilities; the frame rate performs reasonably well at different resolutions.

Applications:
It can be used for cell observation, tissue imaging, etc. in the biomedical field, and can also be used in industrial vision to detect products that have certain requirements for resolution and light sensitivity.

Sensor & Size(mm)	Pix(μm)	G Sensitivity Dynamic Range SN Ratio	FPS/Resolution	Binning	Exposure
12M/MXS577(C) 1/2.1" (5.95×4.71)	1.55×1.55	0.25mv with 1/30s 0.5mv with 1/60s	8.5@3840×3040 53.8@1920×1516 49@1280×1016 137@960×508	1×1 2×2 4×4	0.1ms~2000ms

Sensor & Size(mm)

Pix(μm)

G Sensitivity Dynamic Range SN Ratio

FPS/Resolution

Binning

Exposure

12M/MXS577(C) 1/2.1" (5.95×4.71)

1.55×1.55

0.25mv with 1/30s 0.5mv with 1/60s

8.5@3840×3040 53.8@1920×1516 49@1280×1016 137@960×508

1×1 2×2 4×4

0.1ms~2000ms

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

1-10

TBD

10-

TBD

Explore Series

	Model	Binning	Pix(μm)	Pix(μm)	G Sensitivity Dynamic Range SN Ratio	Exposure	FPS/Resolution	Sensor & Size(mm)	FPS/Resolution
	Venuslab-L3-14KP-A	1×1 2×2 4×4	1.4×1.4	-	0.72μV/lux-sec 65.3dB 35.5dB	0.1ms~2000ms	7.6@4904×2846 26.2@2452×1364 53.3@1226×682	14M/MT9F002(C) 1/2.3" (5.73×4.60)	-		Venuslab-L3-10KP-A	1×1 2×2 4×4	1.55×1.55	-	0.25mv with 1/30s 0.5mv with 1/60s	0.1ms~2000ms	8.5@3664×2748 49@1832×1374 45@1221×916 130@610×458	10M/MXS577(C) 1/2.3" (5.65×4.26)	-		Venuslab-L3-8.5KP-A	1×1 2×2 4×4	-	1.55×1.55	0.25mv with 1/30s 0.5mv with 1/60s	0.1ms~2000ms	-	8.5M/MXS577(C) 1/2.4" (5.16×3.95)	11@3264×2448 56@1632×1226 50@1088×816 167@544×408		Venuslab-L3-5.1KP-A	1×1 2×2 3×3	2.2×2.2	-	73dB 40dB	0.1ms~2000ms	15@3292×1944 49@1646×972 49@1097×648	5.1M/AR0521(C) 1/2.5" (4.70×3.52)	-		Venuslab-L3-3.1KP-A	1×1 4×1 2×2	-	2.2×2.2	1.9μV/lux-sec 100dB 93dB	0.1ms~2000ms	-	3.1M/AR0330(C) 1/3" (4.80×3.37)	97.2@3648×854 27.3@1024×854 53.3@1024×770
