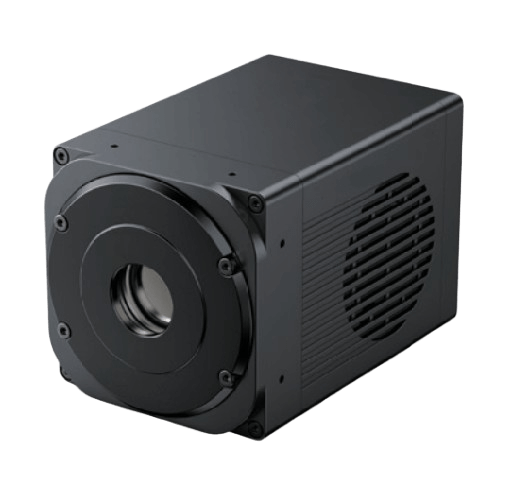

VenusLab series sCMOS scientific cameras

Part Number: VL-4.2

The interface is flexible, balancing high-speed data transmission and compatibility. It has a full-well capacity of 45000e- and a quantum efficiency of 95%@560nm, with strong weak light detection capability.

It is suitable for scenarios with high requirements for interface flexibility and weak light detection, such as life science microscopic imaging and quantum physics experiments, and can also be integrated into multi-interface optical detection systems.

Images are for display purposes only.

Specifications

Sensitive Area	Cooling Function	Dimension	Weight
13.3 mm×13.3 mm	Maximum Cooling Delta Below Ambient 45°C	84×84×125 mm	1300 g

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

Explore Series

	Model	Sensitive Area	Dimension	Cooling Function	Weight
	VL-16	12.8 mm×9.6 mm	94×94×142 mm	Maximum Cooling Delta Below Ambient 60°C	1500 g		VL-95	22.5mm×22.5mm	100×100×140 mm	Maximum Cooling Delta Below Ambient 45°C	1600 g
