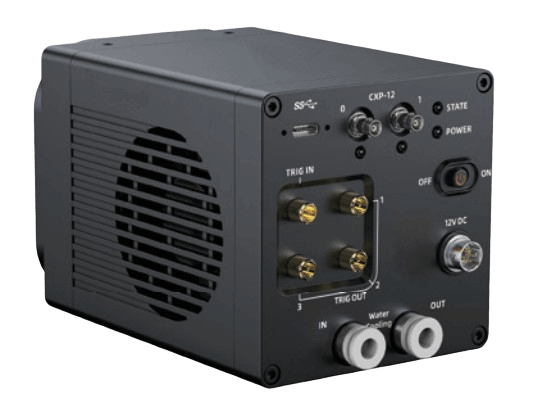

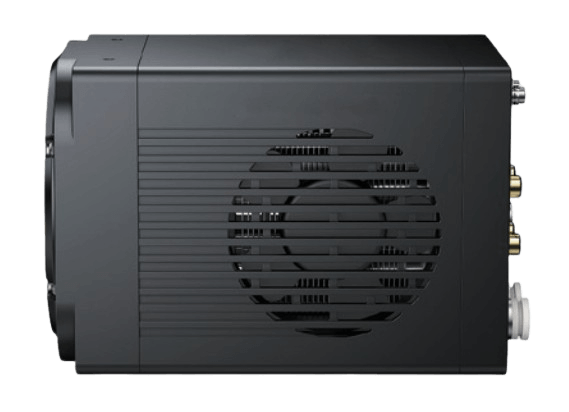

VenusLab series sCMOS scientific cameras

Overview

Product introduction of VenusLab series sCMOS scientific cameras：

The VenusLab series sCMOS scientific cameras are high-end imaging devices specially designed for cutting-edge scientific research scenarios. They are equipped with a scientific-grade back-illuminated (BSI) CMOS image sensor at their core, integrating deep refrigeration sealing technology and high-speed data transmission technology to achieve a synergistic performance of high sensitivity, high frame rate, high dynamic range, and high signal-to-noise ratio. Their response wavelength range covers 190~1100nm, enabling accurate capture of light signals from ultraviolet to near-infrared. They not only meet the basic research needs in life sciences, quantum physics, astronomical observation, semiconductor testing, etc., but also can be seamlessly integrated into optical detection systems such as structured light microscopes and scanning electron microscopes with their flexible and compact structure, providing reliable solutions for various demanding imaging scenarios.

Features of the VenusLab series sCMOS scientific cameras：

Multiple interfaces and transmission flexibility
Lightweight and compact structure
Wide exposure time range
Multi-mode readout adaptation
Standardized compatibility

Dimensions of VenusLab series sCMOS scientific cameras:

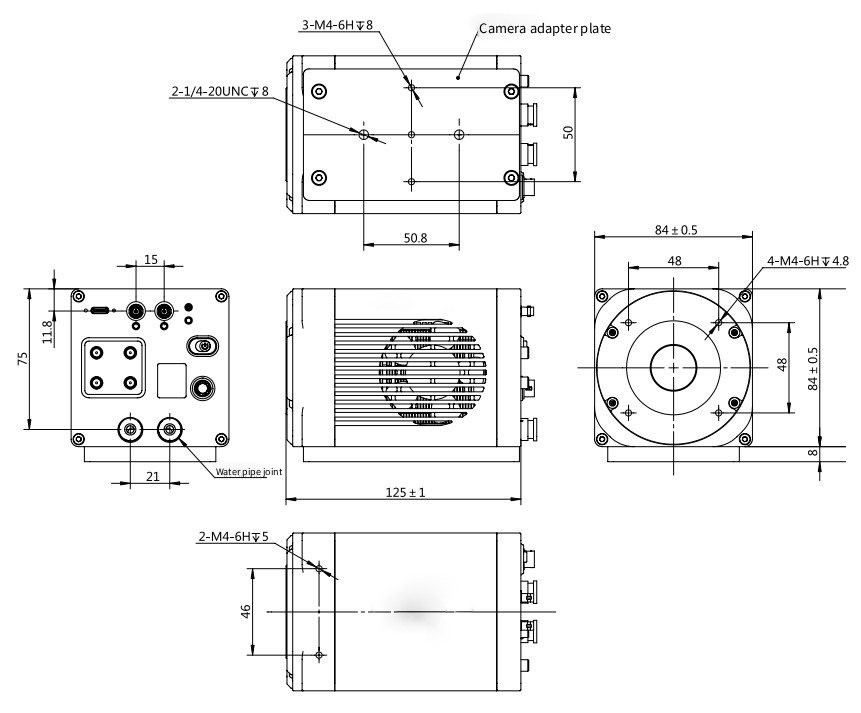

VL-4.2 Dimension Drawing

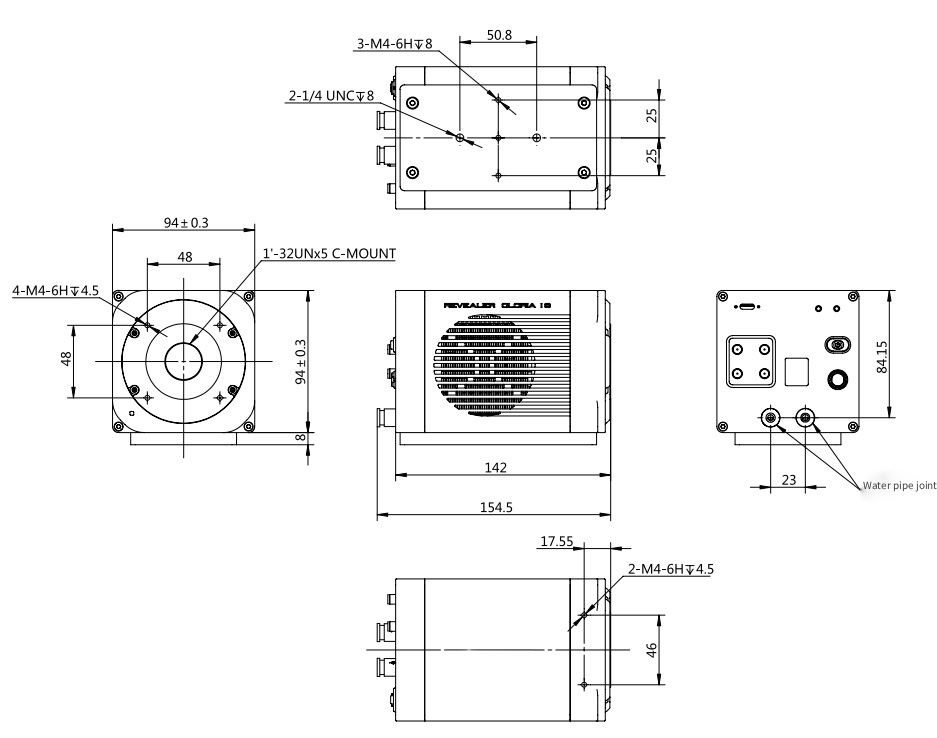

VL-16 Dimension Drawing

Specifications

VL-4.2, VL-16, VL-95 have the same parameters：

Parameter Name	Parameter Details
Sensor Type	Scientific Backside Illuminated CMOS
Dynamic Range	90 dB
Dark Signal Non-Uniformity	0.2 e-
Photo Response Non-Uniformity	＜0.5% Half Saturation and Step Response
Shutter Type	Rolling
Bit Depth	Multi-mode supported (Gloria 4.2: 11 bit & 12 bit & 16 bit; Gloria 16/95: 12 bit & 16 bit)
Readout Mode	Full Frame / Binning (2×2,4×4) / Region of Interest (ROI)
Data Interface	USB 3.1 Gen1 (Gloria 4.2 additionally supports CoaXPress 2.0 (CXP-12))
Timestamp Precision	1 μs
External Trigger Interface	SMA, TTL/3.3V Level
Power Supply	AC 100-240V, 50 Hz / 60 Hz, 1A
Operating Environment	0~40°C, Humidity: 10~80 %
Storage Environment	0~40°C, Humidity: ≤90%
SDK	C, C#, C++, Python
Software	RPC, Micro-manager, Labview, Matlab, Spim, ASCOM

	Model	Sensitive Area	Dimension	Cooling Function	Weight
	VL-4.2	13.3 mm×13.3 mm	84×84×125 mm	Maximum Cooling Delta Below Ambient 45°C	1300 g		VL-16	12.8 mm×9.6 mm	94×94×142 mm	Maximum Cooling Delta Below Ambient 60°C	1500 g		VL-95	22.5mm×22.5mm	100×100×140 mm	Maximum Cooling Delta Below Ambient 45°C	1600 g
