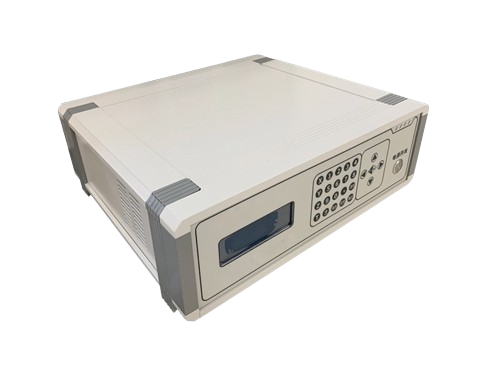

VL-MC Series-400

Part Number: VLMC400-101B

Difference: same as 100B plus manual hand-wheel.

Advantage: auto or jog anytime, live position readout.

Applications: teaching labs, manual alignment.

Images are for display purposes only.

Specifications

Handwheel Interface	Size
Incremental 100 ppr, real-time coordinate echo	140 × 80 × 30 mm (including the handwheel port)

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Interpolation	Size	Pulse output frequency	Handwheel Interface
	VLMC400-100B	Single-axis point position	-	2 MHz	-		VLMC400-200B	XY straight line + arc	-	2 MHz / axis	-		VLMC400-300B	XYZ straight line + 2-D arc	-	2 MHz / axis	-		VLMC400-400B	4-axis linear + XY arc + 3-D spiral (optional)	-	2 MHz / axis	-		VLMC400-201B	-	140 × 80 × 30 mm	-	2-axis electronic switching, real-time coordinate refresh		VLMC400-301B	XYZ straight line + 2-D arc	-	-	3-axis button switching, micrometer-level fine adjustment		VLMC400-401B	4-axis linear + XY arc + 3-D spiral (optional)	-	-	4-axis electronic switching, one-button centering/resetting
