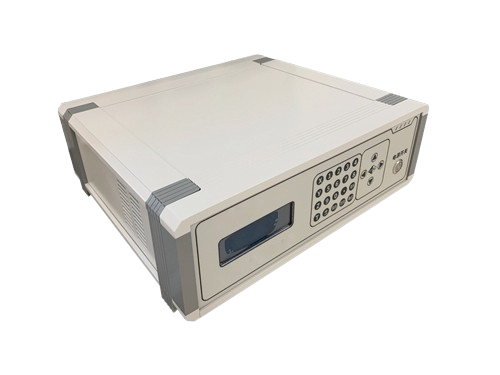

VL-MC Series-400

Part Number: VLMC400-301B

Difference: same axis count as 300B but adds hand-wheel.

Advantage: every axis can be jog-tuned, ideal for proto and low-volume precision assembly.

Applications: micro-fluidic filling, fine assembly.

Images are for display purposes only.

Specifications

Interpolation	Handwheel Interface
XYZ straight line + 2-D arc	3-axis button switching, micrometer-level fine adjustment

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Interpolation	Size	Pulse output frequency	Handwheel Interface
	VLMC400-100B	Single-axis point position	-	2 MHz	-		VLMC400-200B	XY straight line + arc	-	2 MHz / axis	-		VLMC400-300B	XYZ straight line + 2-D arc	-	2 MHz / axis	-		VLMC400-400B	4-axis linear + XY arc + 3-D spiral (optional)	-	2 MHz / axis	-		VLMC400-101B	-	140 × 80 × 30 mm (including the handwheel port)	-	Incremental 100 ppr, real-time coordinate echo		VLMC400-201B	-	140 × 80 × 30 mm	-	2-axis electronic switching, real-time coordinate refresh		VLMC400-401B	4-axis linear + XY arc + 3-D spiral (optional)	-	-	4-axis electronic switching, one-button centering/resetting
