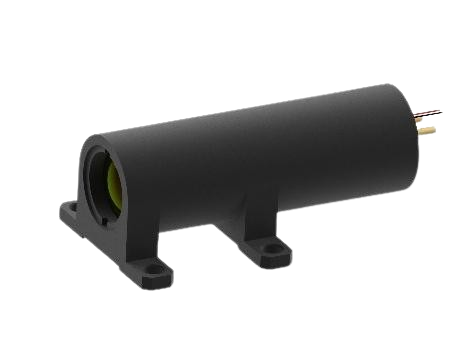

Erbium Glass Laser Transmitter

Part Number: VL-ELT-40-HF

Engineered for applications requiring rapid data updates and long-range precision.

The ultra-high 1000Hz frequency, combined with a narrow ≤0.6mrad beam divergence, makes it the premier choice for LiDAR and dynamic tracking systems.

Images are for display purposes only.

Specifications

Pulse Energy (μJ)	Frequency (Hz)	Beam Divergency (mrad)
≥ 40	1000	≤ 0.6

Unit Price$737.00

Total$737.00

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10	$737.00	TBD
10-	$737.00	TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Frequency (Hz)	Beam Divergency (mrad)	Pulse Energy (μJ)
	VL-ELT-40-LW	1000	≤ 15	≥ 40		VL-ELT-100-LR	1~10	≤ 0.6	≥ 100		VL-ELT-100-S	1~10	≤ 10	≥ 100		VL-ELT-200-S	1~10	≤ 10	≥ 200		VL-ELT-300-S	1~10	≤ 10	≥ 300		VL-ELT-400-S	1~10	≤ 15	≥ 400		VL-ELT-500-S	1~10	≤ 15	≥ 500
