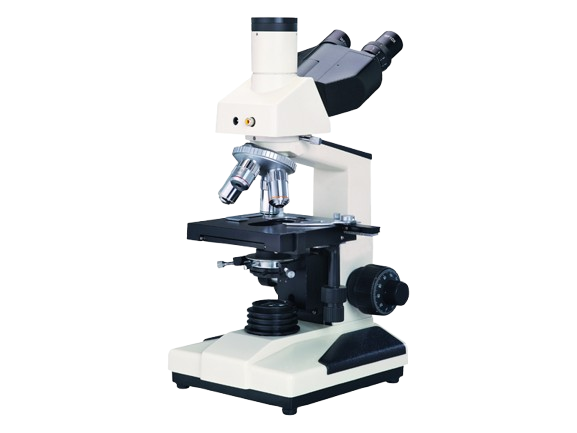

VL Video Microscope

Part Number: VL-VM-1180

Advantages: Achromatic objective lens + wide-field eyepiece, providing a clear and broad field of view

Differences: The double-layer mechanically movable stage has a more flexible movement range (75mm × 35mm)

Applications: Dynamic observation of multi-field samples in medical and scientific research institutions

Images are for display purposes only.

Specifications

Eyepiece	Imaging Device	Fine Focus Graduation	Stage
Wide-field WF10X (Φ18mm)	Color 1/3" CMOS/CCD optional (380 TV lines)	2μm	Double-layer mechanical movable (135×125mm, 75×35mm travel range)

Unit Price$831.00

Total$831.00

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10	$831.00	TBD
10-	$831.00	TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Eyepiece	Stage	Fine Focus Graduation	Imaging Device
	VL-VM-2080	Wide-field WF10X (Φ20mm)	Double-layer mechanical movable (160×140mm, 75×50mm travel range)	2μm	Color 1/3" CCD (520 TV lines horizontal resolution)		VL-VM-1080	Wide-field WF10X (Φ18mm)	Fixed type (70×30mm travel range)	4μm	Color 1/3" CMOS (380 TV lines)
