VL Video Microscope

Professional light-vision microscope

Excellent in both optics and vision: clear field of view, simultaneous viewing and output
Precise operation: focusing accuracy of 2μm, adjustable lamp for easy operation

Overview

A powerful tool for integrated optical and visual observation

The VL Video Microscope is a professional device that integrates high-definition optical imaging and video output functions. With high-quality optical components and video capture capabilities, it enables clear observation, real-time demonstration, and precise operation. It is suitable for sample observation scenarios in fields such as biology, medical care, and teaching.

Features of VL Video Microscope

Wide-field eyepiece + flat-field achromatic objective lens, delivering clear imaging and a wide field of view
Built-in color CCD, supporting video output for synchronous observation and demonstration
Coaxial coarse and fine focusing, with a precision of 2μm
6V 20W halogen lamp, with adjustable brightness to adapt to various samples
Dual-layer mechanical moving stage, offering flexible and stable operation

Explore Series

	Model	Eyepiece	Stage	Fine Focus Graduation	Imaging Device

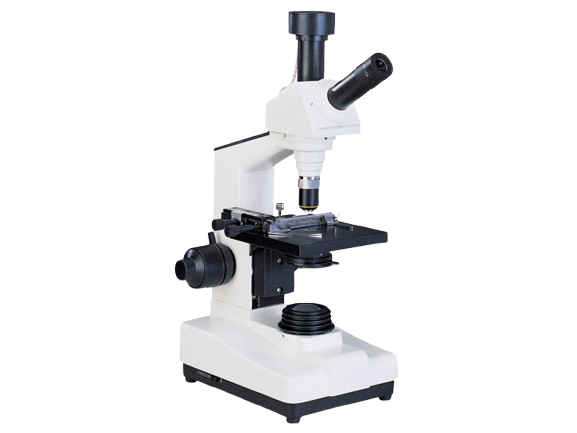

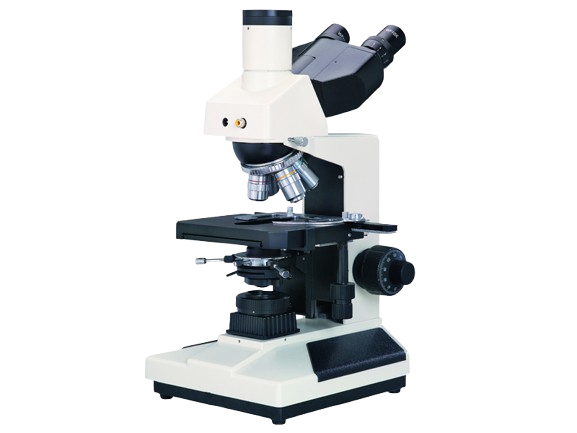

	VL-VM-2080	Wide-field WF10X (Φ20mm)	Double-layer mechanical movable (160×140mm, 75×50mm travel range)	2μm	Color 1/3" CCD (520 TV lines horizontal resolution)		VL-VM-1180	Wide-field WF10X (Φ18mm)	Double-layer mechanical movable (135×125mm, 75×35mm travel range)	2μm	Color 1/3" CMOS/CCD optional (380 TV lines)		VL-VM-1080	Wide-field WF10X (Φ18mm)	Fixed type (70×30mm travel range)	4μm	Color 1/3" CMOS (380 TV lines)
