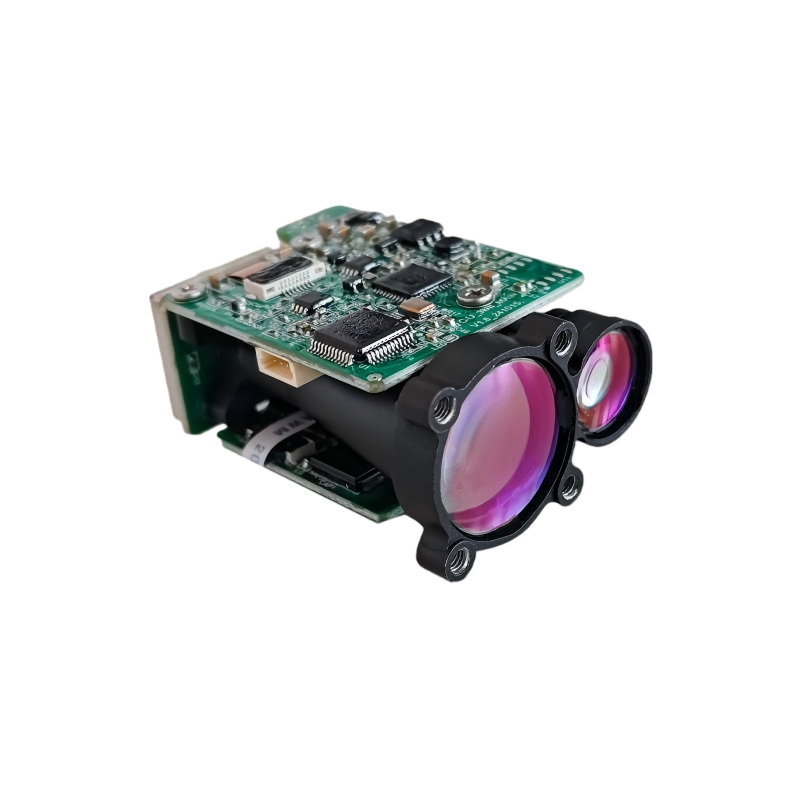

1535nm Laser Rangefinder Module

Part Number: VL-ELRF-3

This is the most lightweight model in the series, specifically designed for weight-sensitive platforms such as small UAVs and handheld gimbals.

Despite its ultra-compact size, it delivers a building detection range of ≥ 5km and can accurately range a UAV target at ≥ 1km.

Images are for display purposes only.

Specifications

Vehicle Range* (≥)	Large Target Range* (≥)	Weight	Primary Interface
3,000 m	5,000 m	< 33 g	TTL/RS422

Unit Price

Total

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10		TBD
10-		TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Large Target Range* (≥)	Primary Interface	Weight	Vehicle Range* (≥)
	VL-ELRF-5	6,000 m	TTL	< 40 g	5,000 m		VL-ELRF-6	7,000 m	RS422	< 55 g	6,000 m		VL-ELRF-8	10,000 m	RS422	< 75 g	8,000 m		VL-ELRF-10	12,000 m	RS422	< 130 g	10,000 m		VL-ELRF-15	20,000 m	RS422	< 270 g	15,000 m
