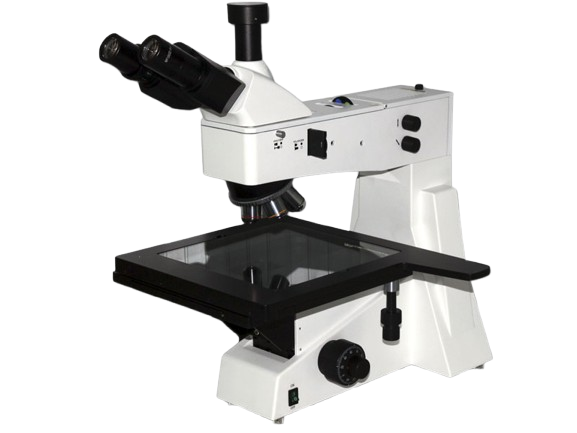

VenusLab U-Met

Part Number: VL U-Met 302

Advantage: Comfortable operation and high imaging precision

Difference: Brightfield objectives only

Application: Routine microscopic observation of metallographic structures

Images are for display purposes only.

Specifications

Illumination System Parameters	Filter Configuration	Stage Parameters
12V30W halogen lamp	Yellow, blue, green, frosted glass	Stage Size/Travel Range(280mm×270mm / 204mm×204mm)

Unit Price$3,000.00

Total$3,000.00

Ship Date

TBD

Quantity	Price(USD)	Ship Date
1-10	$3,000.00	TBD
10-	$3,000.00	TBD

NOTE : Ship Dates above are subject to change depending upon availability.

	Model	Stage Parameters	Illumination System Parameters	Filter Configuration
	VL U-Met 3230	Double-layer mechanical stage (210×140mm, travel range 63×50mm)	12V30W halogen lamp (transmitted/epi-illumination)	Yellow/blue/green filters + frosted glass		VL U-Met 320	Double-layer mechanical stage (210×140mm, travel range 63×50mm)	6V30W halogen lamp (transmitted/epi-illumination)	Yellow/blue/green/red filters		VL U-Met 323B	Double-layer mechanical stage (210×140mm, travel range 63×50mm)	12V50W halogen lamp (epi-illumination) 12V30W halogen lamp (transmitted)	Blue filter + frosted glass
