VenusLab U-Met

Inverted and Upright Metallographic Microscope Series

Multiple form factors available (upright / inverted) to adapt to different sample types
Supports professional observation modes such as DIC to meet high-precision analysis needs

Overview

A Versatile Choice for Metallographic Microscopes

VenusLab U-Met is a series of metallographic microscopes covering both upright and inverted configurations. It is compatible with both basic observation and professional analysis scenarios, and meets various testing needs in the fields of materials and metallography.

Features of VenusLab U-Met

Both upright and inverted models are optional
Supports DIC professional mode
Suitable for observing various types of samples
Easy to operate and learn
Covers basic to professional scenarios

Model Table

Model	Core Configuration Highlights	Application Scenario

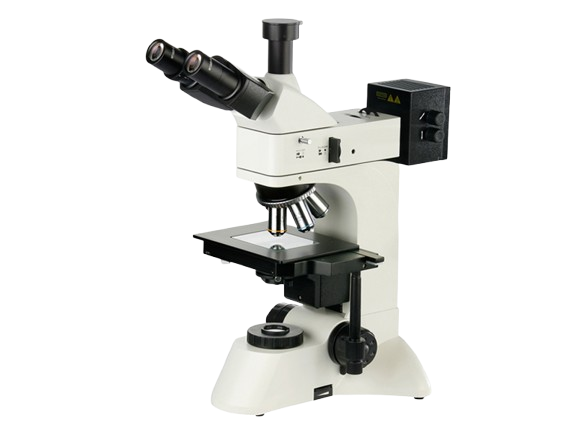

VL U-Met 3230	Brightfield objective + 12V30W illumination	Basic metallographic observation

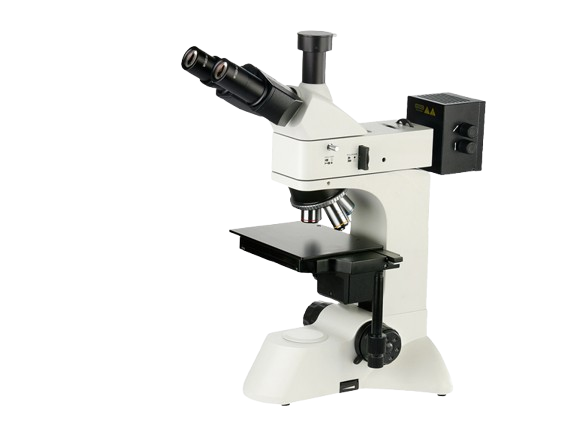

VL U-Met 320	Multi-color filter + built-in polarization module	Polarization observation scenarios
VL U-Met 322	Transmitted/reflective dual illumination system	Transmissive/reflective sample compatibility analysis

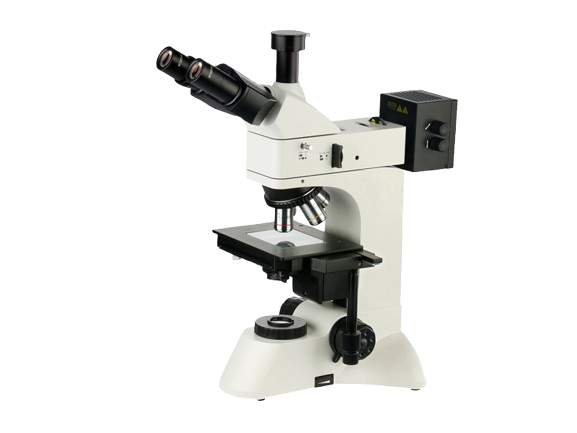

VL U-Met 323B	Brightfield/darkfield objective + 12V50W illumination	High-brightness darkfield observation
VL U-Met 302	Trinocular head + 0.7μm fine focus adjustment	High-precision microscopic imaging
VL U-Met 302B	Brightfield/darkfield objective + large-size stage	Darkfield inspection of large samples
VL U-Met 101	Long-working-distance objective + 154×154mm stage	Routine observation of uncovered samples
VL U-Met 101A	Long-working-distance objective + 204×204mm stage	Observation of large-size uncovered samples

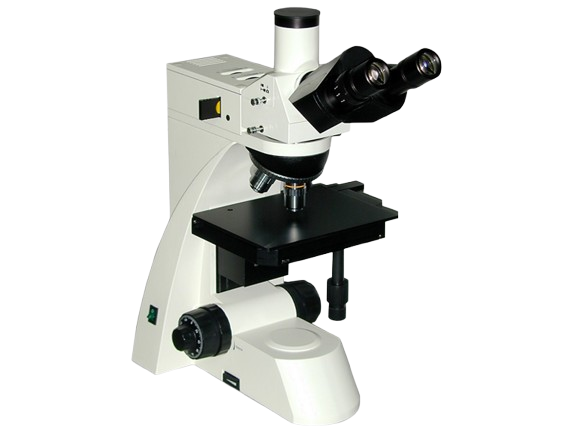

VL U-Met 300	Long-working-distance objective + 63×50mm stage	Metallographic analysis of small samples

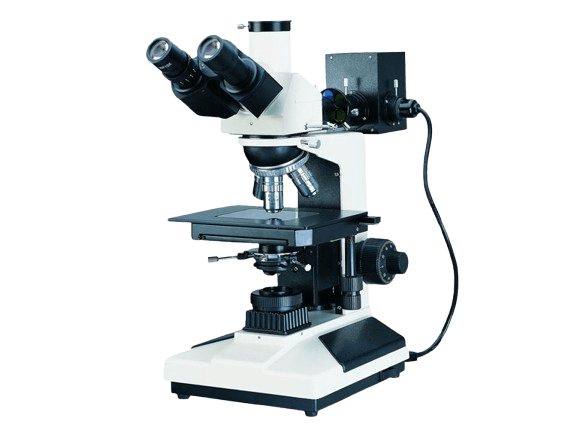

VL U-Met 203A	Spring-loaded objective + 4-position nosepiece	Spring-loaded objective compatible scenarios
VL U-Met 203B	Spring-loaded objective + 5-position nosepiece	Multi-objective switching scenarios
VL U-Met 202A	6V20W illumination + 4-position nosepiece	Low-power consumption illumination scenarios
VL U-Met 202B	6V20W illumination + 5-position nosepiece	Low-power consumption + multi-objective switching scenarios
VL U-Met 200A	Long-working-distance objective + double-layer stage	Observation of standard-size samples
VL U-Met 200B	Long-working-distance objective + 5-position nosepiece	Standard sample analysis with multi-objective compatibility

Explore Series

	Model	Stage Parameters	Illumination System Parameters	Filter Configuration
	VL U-Met 3230	Double-layer mechanical stage (210×140mm, travel range 63×50mm)	12V30W halogen lamp (transmitted/epi-illumination)	Yellow/blue/green filters + frosted glass		VL U-Met 320	Double-layer mechanical stage (210×140mm, travel range 63×50mm)	6V30W halogen lamp (transmitted/epi-illumination)	Yellow/blue/green/red filters		VL U-Met 323B	Double-layer mechanical stage (210×140mm, travel range 63×50mm)	12V50W halogen lamp (epi-illumination) 12V30W halogen lamp (transmitted)	Blue filter + frosted glass		VL U-Met 302	Stage Size/Travel Range(280mm×270mm / 204mm×204mm)	12V30W halogen lamp	Yellow, blue, green, frosted glass
